87-42DS01 - Toro 42" Disc (1980) DISC-50 IN. (127 CM) VEHICLE IDENTIFICATION NUMBER 87-50DS01 Parts Diagram

42" Disc

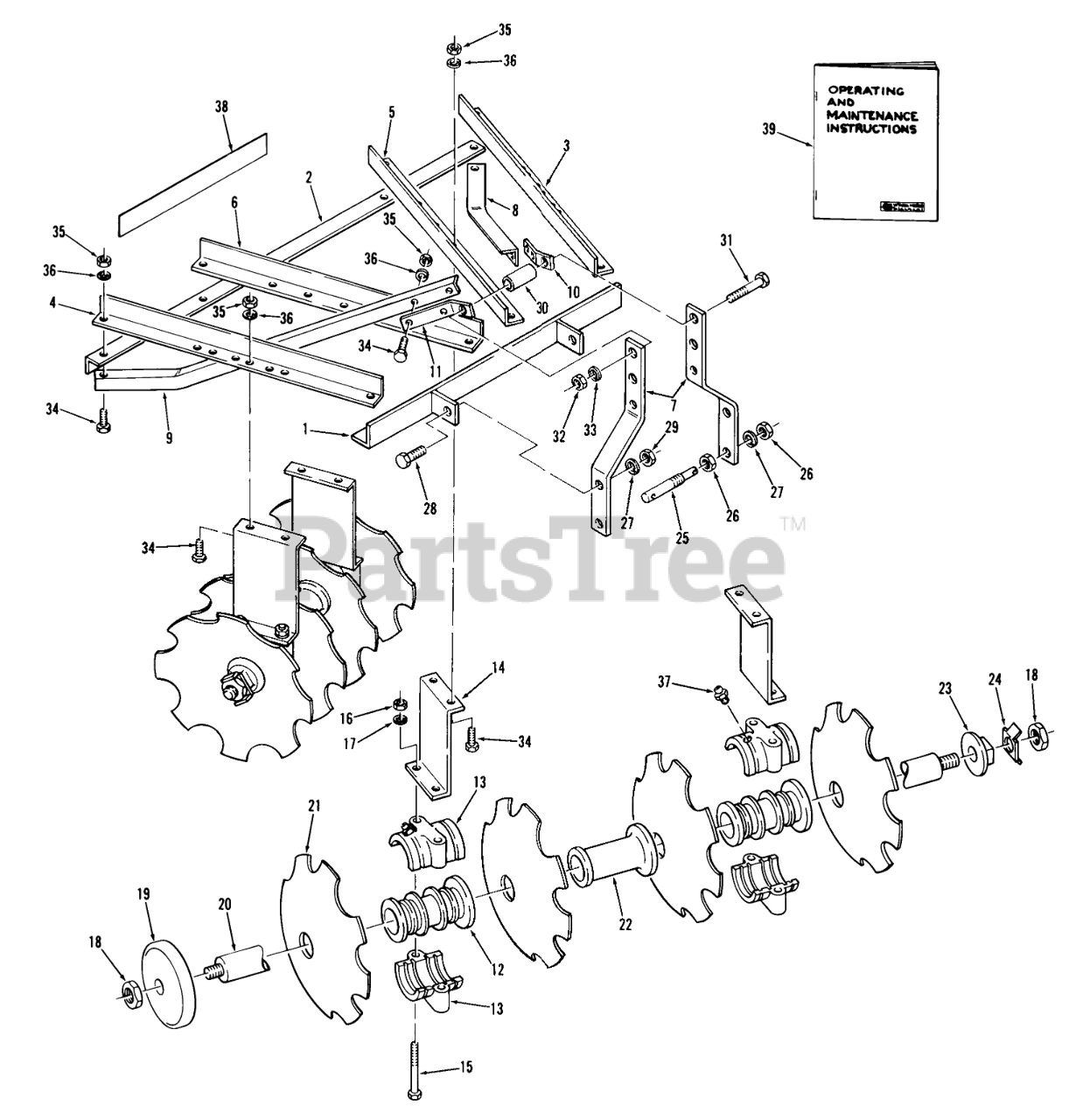

DISC-50 IN. (127 CM) VEHICLE IDENTIFICATION NUMBER 87-50DS01 Parts Diagram

  • Title

1

Toro 226226

Hitch Angle

$

$

Currently unavailable

2

Toro 226227

Rear Main Frame

$

$

Currently unavailable

3

Toro 226228

Outside-Left

$

$

Currently unavailable

4

Toro 226229

Outside-Right

$

$

Currently unavailable

5

Toro 226230

Inside-Left

$

$

Currently unavailable

6

Toro 226231

Inside-Right

$

$

Currently unavailable

7

Toro 226232

Rizer Strut

$

$

Currently unavailable

8

Toro 226233

Strut Brace-Left

$

$

Currently unavailable

9

Toro 226234

Strut Brace-Right

$

$

Currently unavailable

10

Toro 226235

Strut Adapter-Left

$

$

Currently unavailable

11

Toro 226236

Strut Adapter Right

$

$

Currently unavailable

12

Toro 226243

Spool Bearing

$

$

Currently unavailable

13

Toro 226244

Bearing Cap

$

$

Currently unavailable

14

Toro 226245

Bearing Arm

$

$

Currently unavailable

15

Toro 900126

Carriage Bolt 1/2-13 x 5

$

$

Currently unavailable

16

Toro 915437

Nut 1/2-13

$

$

Currently unavailable

17

Toro 920085

Lockwasher

$

$

Currently unavailable

18

Toro 915243

Jam Nut 1-8

$

$

Currently unavailable

19

Toro 226240

Bumper Washer

$

$

Currently unavailable

20

Toro 226241

Gang Rod

$

$

Currently unavailable

21

Toro 226242

Notched Blade-16 in. (40.6 cm)

$

$

Currently unavailable

22

Toro 226246

Spacer Spool

$

$

Currently unavailable

23

Toro 226247

End Washer

$

$

Currently unavailable

24

Toro 226248

Lockwasher

$

$

Currently unavailable

25

Toro 226249

Combination 5/8 & 7/8 Hitch Pin

$

$

Currently unavailable

26

Toro 915091

Jam Nut 7/8-14

$

$

Currently unavailable

27

Toro 920091

Lockwasher 7/8

$

$

Currently unavailable

28

Toro 908116

Bolt 7/8-14 x 2 1/2

$

$

Currently unavailable

29

Toro 915008

Nut 7/8-14

$

$

Currently unavailable

30

Toro 226250

Top Link Spacer

$

$

Currently unavailable

31

Toro 908107

Bolt 3/4-l0 X 4

$

$

Currently unavailable

32

Toro 915440

Nut 3/4-10

$

$

Currently unavailable

33

Toro 920089

Lockwasher 3/4

$

$

Not available

34

Toro 908059

Hhcs
(Superseded to 325-6)

$3.49

$

Usually ships in 3-6 days

0

35

Toro 915437

Nut 1/2-13

$

$

Currently unavailable

36

Toro 920085

Lockwasher

$

$

Currently unavailable

37

Toro 939043

Grease Fitting

$

$

Currently unavailable

38

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

39

Toro 803741R1

Operating and Maintenance Instructions

$

$

Currently unavailable
