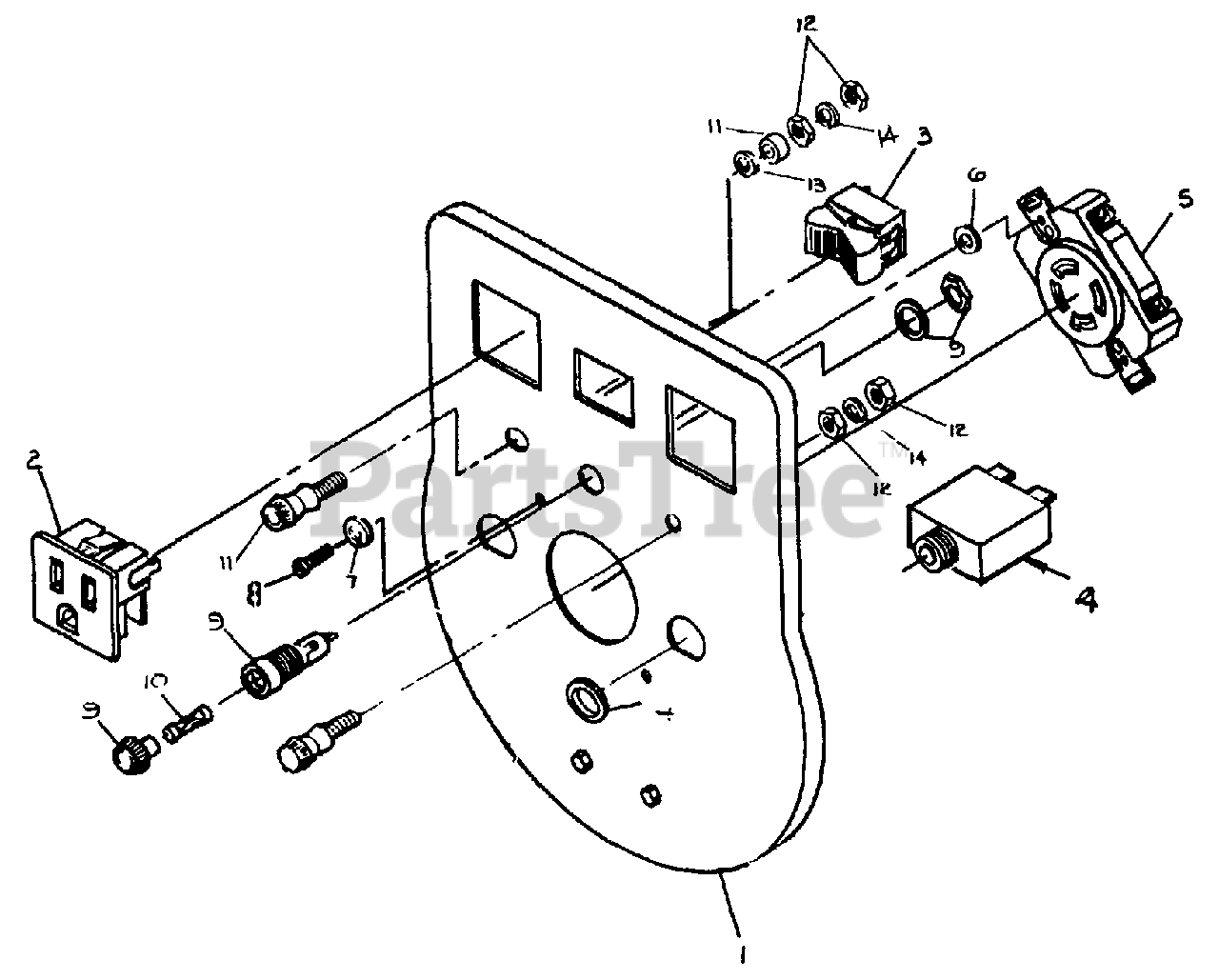

8709-0 - Generac 5,000 Watt Portable Generator Control Panel No. 61739 Revised 2/9/83 Parts Diagram

5,000 Watt Portable Generator

Control Panel No. 61739 Revised 2/9/83 Parts Diagram

  • Title

1

Briggs & Stratton 45084DB

PANEL (Silkscreened) - Model 8709

$

$

Currently unavailable

2

Briggs & Stratton 22693

RECEPTACLE - 120 Volts, 15 Ampere
(Superseded to 7022693YP)

$52.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 33874

SWITCH, Start/Stop - Model 8709

$

$

Currently unavailable

4

Briggs & Stratton 56286

BREAKER, Circuit - 15 Ampere

$

$

Not available

5

Briggs & Stratton 43482

RECEPTACLE - 240 Volts, 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 45805

WASHER, Nylon

$

$

Currently unavailable

7

Briggs & Stratton 22155

WASHER, Lock - No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 36901

SCREW, Phillips Pan Head Machine No. 6-32 x 3/8" long

$

$

Currently unavailable

9

Briggs & Stratton 22669

HOLDER, Fuse

$

$

Currently unavailable

10

Briggs & Stratton 22668

FUSE - 30 Ampere

$

$

Currently unavailable

11

Briggs & Stratton 25361

POST, Terminal - Positive Battery Charge

$6.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 30768

WASHER, Fiber

$

$

Currently unavailable

14

Briggs & Stratton 26579

WASHER, Lock - No. 8

$

$

Not available

15

Briggs & Stratton 25368

POST, Terminal - Negative Battery Charge

$

$

Not available

Briggs & Stratton A25383

CABLE, Battery Charging

$

$

Currently unavailable

Briggs & Stratton 43483

PLUG, Connector - 240 Volts, 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
