8709-0 - Generac 5,000 Watt Portable Generator Muffler, Handle And Mounting Base No. 50775 Parts Diagram

5,000 Watt Portable Generator

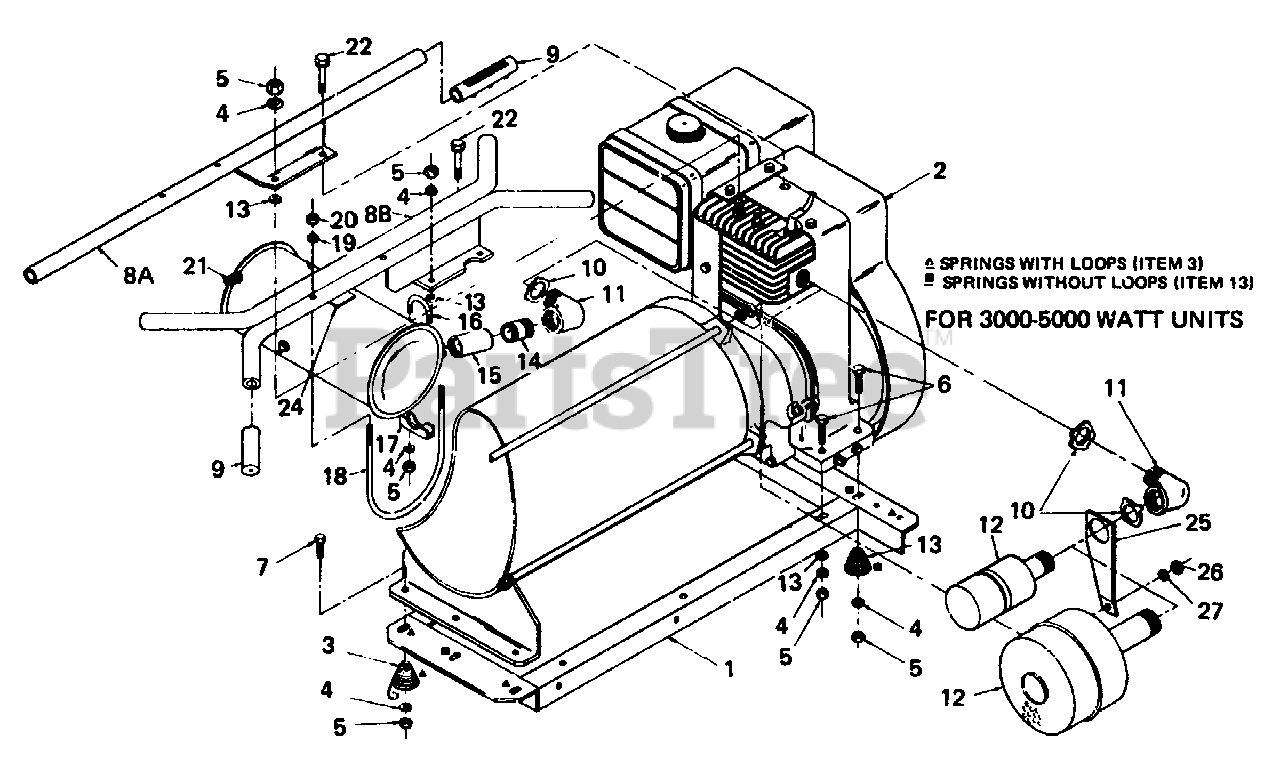

Muffler, Handle And Mounting Base No. 50775 Parts Diagram

  • Title

1

Briggs & Stratton 44900

BASE, Mounting

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$

$

Currently unavailable

1

Briggs & Stratton 51967

BASE, Mounting

Note: (For Briggs & Stratton 10 and 11 Horsepower engines only)

$

$

Currently unavailable

2

Briggs & Stratton 50765

ENGINE - Briggs & Stratton 11 Horsepower Manual Start

$

$

Currently unavailable

2

Briggs & Stratton 50764

ENGINE - Briggs & Stratton 11 Horsepower Electric Start

$

$

Currently unavailable

2

Briggs & Stratton 42409

ENGINE - Briggs & Stratton 8 Horsepower Electric Start

$

$

Currently unavailable

2

Briggs & Stratton 42404

ENGINE - Briggs & Stratton 8 Horsepower Manual Start

$

$

Currently unavailable

2

Briggs & Stratton 42405

ENGINE - Briggs & Stratton 7 Horsepower Manual Start

$

$

Currently unavailable

3

Briggs & Stratton 25047

SPRING, Support (with Loop)
(Superseded to 7025047YP)

$47.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 37395

FEET, Rubber Support

$

$

Currently unavailable

4

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

Note: (For Briggs & Stratton 11 Horsepower engines only)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 22259

NUT, Hex - 5/16" - 18
(Superseded to 22259GS)

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22259

NUT, Hex - 5/16" - 18
(Superseded to 22259GS)

Note: (For Briggs & Stratton 11 Horsepower engines only)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22531

CAPSCREW, Hex Head - 5/16" - 18 x 1 - 3/4"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22125

CAPSCREW, Hex Head - 5/16" - 18 x 1"

$

$

Currently unavailable

8A

Briggs & Stratton 44361

HANDLE, Carrying

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$

$

Not available

8B

Briggs & Stratton 43985

HANDLE, Carrying
(Superseded to 5043985)

Note: (For Briggs & Stratton 11 Horsepower engines only)

$119.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 25094

GRIP, Carrying Handle
(Superseded to 5025094)

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 25094

GRIP, Carrying Handle
(Superseded to 5025094)

Note: (For Briggs & Stratton 11 Horsepower engines only)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 26771

NUT, Pipe Lock - 3/4"

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$

$

Currently unavailable

10

Briggs & Stratton 26772

NUT, Pipe Lock - 1"
(Superseded to 26772GS)

Note: (For Briggs & Stratton 11 Horsepower engines only)

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 26307

ELBOW, 90 degree - 3/4"

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$

$

Currently unavailable

11

Briggs & Stratton 25765

ELBOW, 90 degree - 1"

Note: (For Briggs & Stratton 11 Horsepower engines only)

$

$

Currently unavailable

12

Briggs & Stratton 50989

MUFFLER, Exhaust

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$

$

Currently unavailable

12

Briggs & Stratton 47920

MUFFLER, Exhaust

Note: (For Briggs & Stratton 11 Horsepower engines only)

$

$

Currently unavailable

13

Briggs & Stratton 23594

SPRING (Plain)

$

$

Currently unavailable

14

Briggs & Stratton 35589

NIPPLE, Pipe - 3/4" NPT x 3.5" long

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$

$

Currently unavailable

14

Briggs & Stratton 25435

NIPPLE, Pipe - 1" NPT x 6" long

Note: (For Briggs & Stratton 11 Horsepower engines only)

$

$

Not available

15

Briggs & Stratton 26905

COUPLING, Pipe - 3/4"

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$

$

Currently unavailable

16

Briggs & Stratton 28238

U-BOLT, Muffler Clamp

$

$

Currently unavailable

17

Briggs & Stratton 28237

SADDLE, Muffler Clamp
(Superseded to 7028237YP)

$109.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 27110

U-BOLT - 4-5/8" Diameter
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

20

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

21

Briggs & Stratton 43951

MUFFLER, Spark Arrestor

$

$

Currently unavailable

22

Briggs & Stratton 24726

CAPSCREW, Hex Head Grade 5 - 5/16" - 18 x 2-1/2"

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$

$

Currently unavailable

22

Briggs & Stratton 24246

CAPSCREW, Hex Head - 5/16" - 18 x 2-3/4" - Grade 5

Note: (For Briggs & Stratton 11 Horsepower engines only)

$1.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 45121

STABILIZER, Muffler

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$

$

Currently unavailable

23

Briggs & Stratton 45122

STABILIZER, Muffler
(Superseded to 7045122YP)

Note: (For Briggs & Stratton 11 Horsepower engines only)

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 37897

SHIELD, Asbestos Heat

$

$

Currently unavailable

25

Briggs & Stratton 49391

SUPPORT, Muffler
(Superseded to 5049391B)

Note: (For Briggs & Stratton 7 and 8 Horsepower engines only)

$31.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 42436

SUPPORT, Muffler

Note: (For Briggs & Stratton 11 Horsepower engines only)

$

$

Currently unavailable

26

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

27

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 50484

DEFLECTOR, Exhaust

Note: (Includes Screws)

$

$

Currently unavailable
