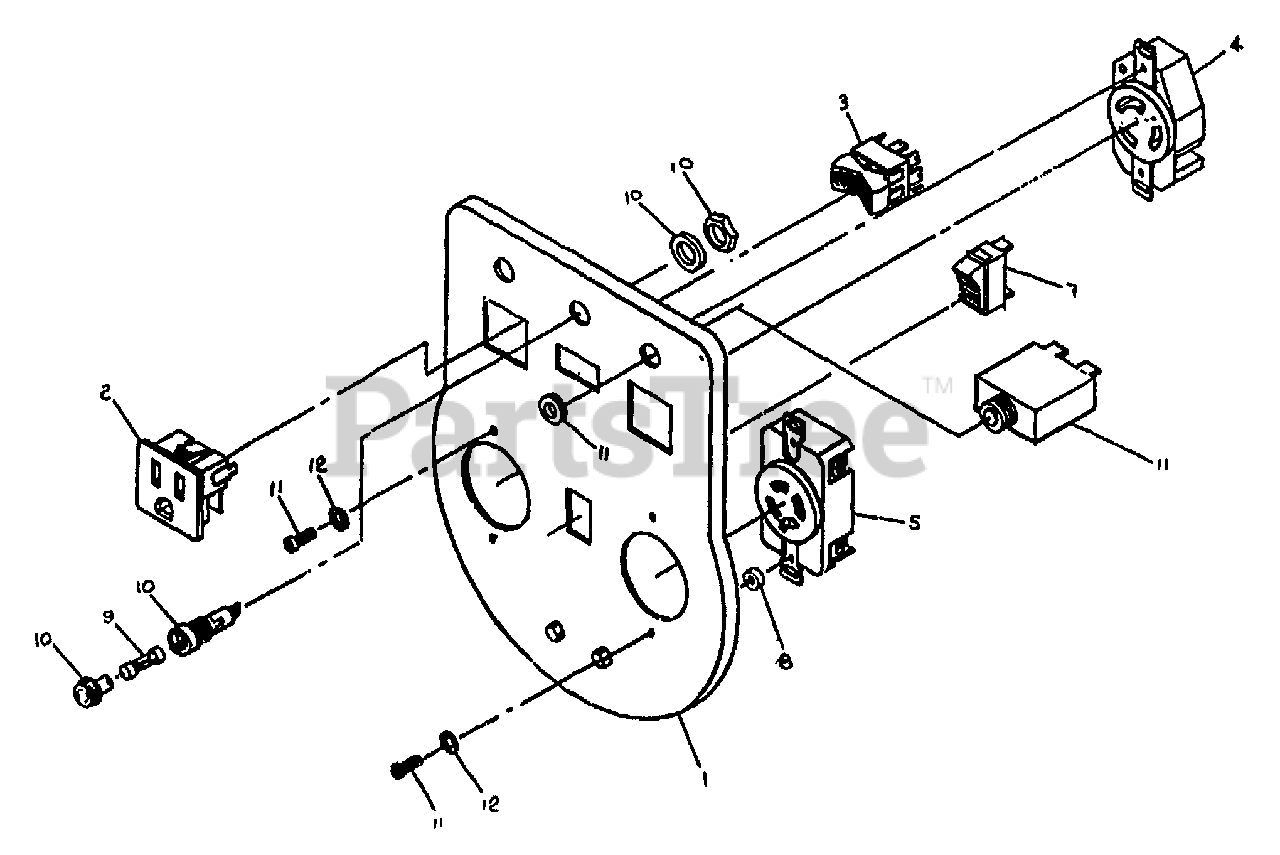

8710-0 - Generac 3,750 Watt Portable Generator Panel Parts Diagram

3,750 Watt Portable Generator

Panel Parts Diagram

  • Title

1

Briggs & Stratton 45084DE

PANEL (Silkscreened)

$

$

Currently unavailable

2

Briggs & Stratton 22693

RECEPTACLE - 120 Volts, 15 Ampere
(Superseded to 7022693YP)

$52.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 45629

SWITCH, Full Capacity

$

$

Currently unavailable

4

Briggs & Stratton 37807

RECEPTACLE - 120 Volts, 30 Ampere

$

$

Currently unavailable

5

Briggs & Stratton 43482

RECEPTACLE - 240 Volts, 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 56286

BREAKER, Circuit - 15 Ampere

$

$

Not available

7

Briggs & Stratton 33874

SWITCH, Start/Stop

$

$

Currently unavailable

8

Briggs & Stratton 22471

WASHER, Nylon
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22668

FUSE - 30 Ampere

$

$

Currently unavailable

10

Briggs & Stratton 32300

HOLDER, Fuse
(Superseded to 191302GS)

$

$

Not available

11

Briggs & Stratton 36901

SCREW, Phillips Pan Head Machine- No. 6-32 x 3/8" long

$

$

Currently unavailable

12

Briggs & Stratton 22155

WASHER, Lock - No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

PLUG, Connector - 120 Volts, 30 Ampere
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector - 240 Volts, 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
