8712-0 - Generac 7,000 Watt Portable Generator AC Generator No. 50985 Parts Diagram

7,000 Watt Portable Generator

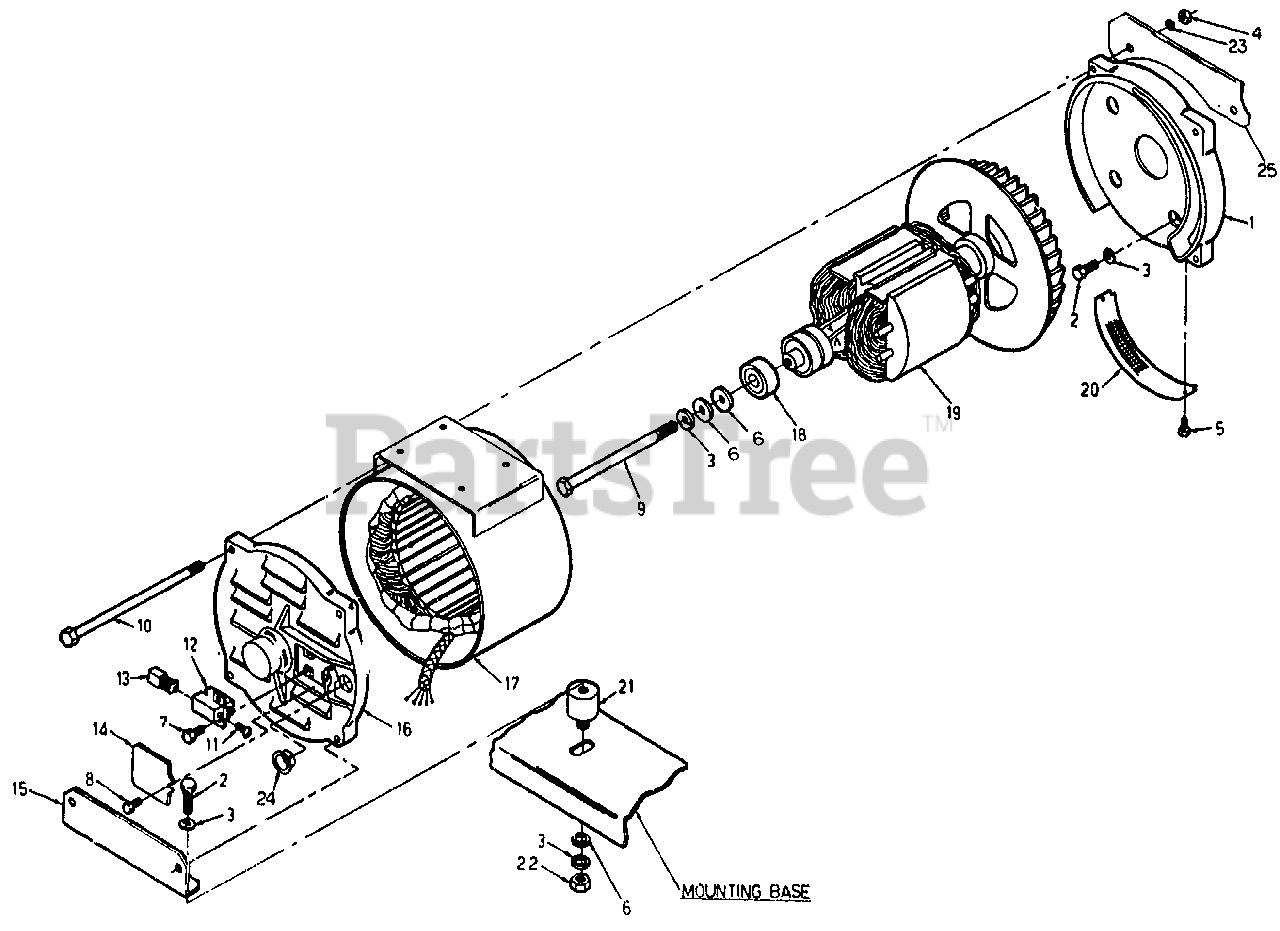

AC Generator No. 50985 Parts Diagram

  • Title

1

Briggs & Stratton 42805A

HOUSING, Engine Adapter

$

$

Currently unavailable

2

Briggs & Stratton 23152

CAPSCREW, Hex Head - 3/8"-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

4

Briggs & Stratton 24114

NUT, Hex - 5/16"-24

$

$

Not available

5

Briggs & Stratton 24489

SCREW - No. 10-32 x 3/8"

$

$

Currently unavailable

6

Briggs & Stratton 22131

WASHER, Flat - 3/8"
(Superseded to 22131GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 24488

SCREW - No. 8-32 x 5/8"

$

$

Currently unavailable

8

Briggs & Stratton 26902

SCREW - No. 8-32 x 1/4"

$

$

Not available

9

Briggs & Stratton 50924

BOLT, Rotor - 3/8" x 11-1/8" long

$

$

Currently unavailable

10

Briggs & Stratton 50398

BOLT, Stator - 5/16"-24 x 11-5/8" long

$

$

Currently unavailable

11

Briggs & Stratton 25105

SCREW - No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43844

COVER, Brush Inspection
(Superseded to 7043844YP)

$34.99

$

In Stock, Qty 5

0

15

Briggs & Stratton 42384

SUPPORT, Rear Generator

$

$

Currently unavailable

16

Briggs & Stratton 49410

CARRIER, Rear Bearing
(Superseded to 49410AGS)

$136.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 50976

STATOR ASSEMBLY

$

$

Currently unavailable

18

Briggs & Stratton 24049

BEARING

$

$

Not available

19

Briggs & Stratton 50906

ASSEMBLY, Rotor and Fan

$5.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 42856

GUARD, Fan

$

$

Not available

21

Briggs & Stratton 38353

DAMPENER, Vibration
(Superseded to 38353GS)

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

23

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 23484D

BUSHING, Snap

$

$

Currently unavailable

25

Briggs & Stratton 50972

DEFLECTOR, Engine Air

$

$

Currently unavailable
