8713-0 - Generac 1,100 Watt Portable Generator AC Generator No. 62018 Parts Diagram

1,100 Watt Portable Generator

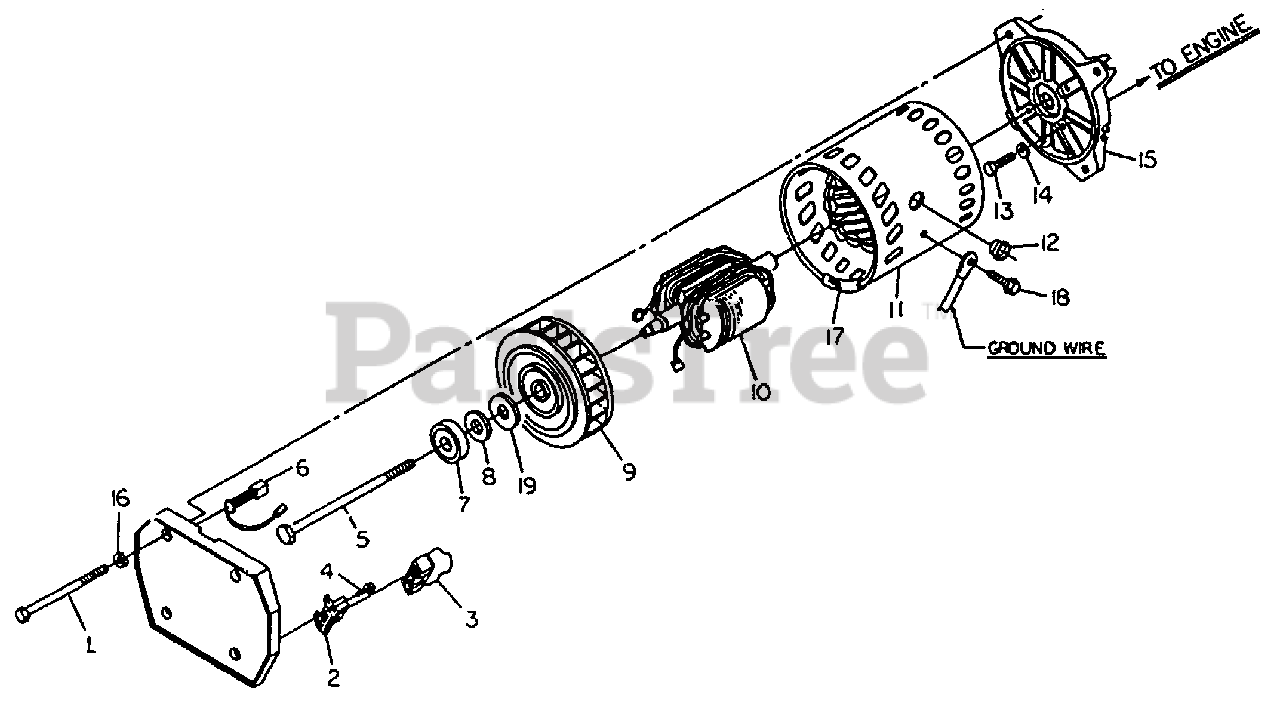

AC Generator No. 62018 Parts Diagram

  • Title

1

Briggs & Stratton 44395H

BOLT, Stator (120/240 Volts units)

$

$

Currently unavailable

2

Briggs & Stratton 22694

HOUSING, Receptacle - White
(Superseded to 22694GS)

$6.49

$

In Stock, only 2 left!

0

3

Briggs & Stratton 28293

RECTIFIER, Bridge

$

$

Currently unavailable

4

Briggs & Stratton 59636

SCREW - No. 4 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 58885A

BOLT, Rotor (1100, 2000 Watt Units)

$

$

Not available

6

Briggs & Stratton 59606

BRUSH, Positive (Red)

$

$

Not available

Briggs & Stratton 59606A

BRUSH, Neutral

$

$

Not available

7

Briggs & Stratton 24049

BEARING

$

$

Not available

8

Briggs & Stratton 58886

WASHER (Special
(Superseded to 58886GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 58868

Fan, Cooling

$

$

Currently unavailable

10

Briggs & Stratton 62021

ROTOR AND FAN ASSEMBLY (1100 Watt Units)
(Superseded to 7062021YP)

$314.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 62022

STATOR ASSEMBLY (1100 Watt Units)
(Superseded to 7062022YP)

$87.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23484D

BUSHING, Snap

$

$

Currently unavailable

13

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16"-18 x 3/4"

$

$

Not available

14

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 60220D

HOUSING, Engine Adapter

$

$

Currently unavailable

16

Briggs & Stratton 50993

NUT, Lock - 1/4"-20

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 56326

TRIM (Vinyl) - 3-1/2" long

$

$

Currently unavailable

18

Briggs & Stratton 24489

SCREW (Crimptite) - No. 10-24 x 3/8"

$

$

Currently unavailable

19

-----

UNKNOWN

$

$

Not available
