8714-0 - Generac 2,000 Watt Portable Generator Engine Sheet Metal No. 61796 Issued 2/18/83 Parts Diagram

2,000 Watt Portable Generator

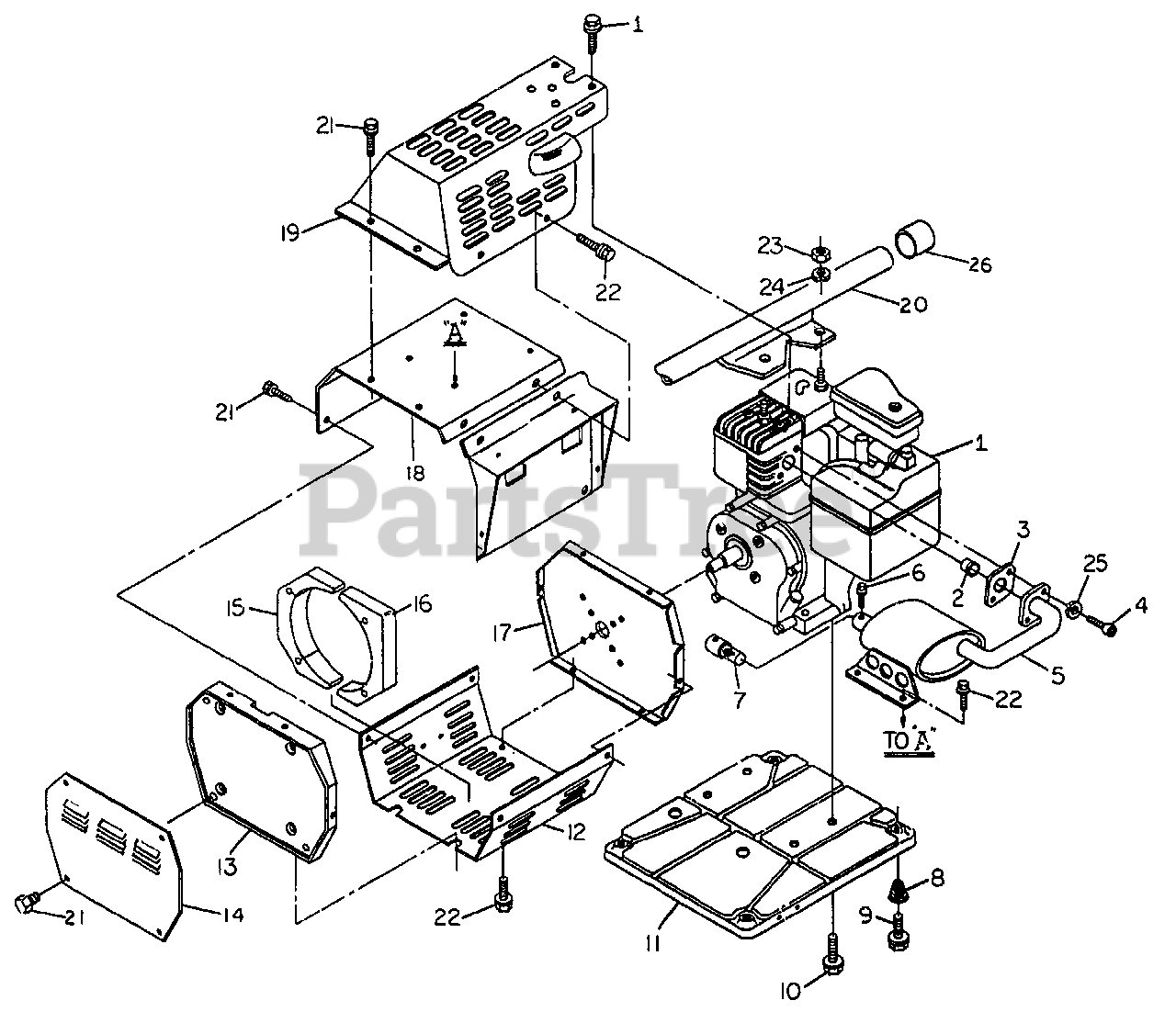

Engine Sheet Metal No. 61796 Issued 2/18/83 Parts Diagram

  • Title

1

Briggs & Stratton 58892

ENGINE - 5 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 60211

LINER, Exhaust Port

$

$

Currently unavailable

3

Briggs & Stratton 58894

GASKET, Exhaust
(Superseded to 58894GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 36781

CAPSCREW, Hex Head - 1/4"-20 x 3/4"

$

$

Currently unavailable

5

Briggs & Stratton 58195

MUFFLER ASSEMBLY, Exhaust

$

$

Currently unavailable

6

Briggs & Stratton 22774

SCREW, Sheet Metal - No. 8 x 3/8"

$

$

Currently unavailable

7

Briggs & Stratton 59604

SCREEN, Spark Arrestor

$

$

Currently unavailable

8

Briggs & Stratton 23594

SPRING (without Loop)

$

$

Currently unavailable

9

Briggs & Stratton 24979

SCREW - 5/16" x 5/8" long
(Superseded to 7024979YP)

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59637

SCREW - 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 58874

PAN, Base

$

$

Not available

12

Briggs & Stratton 58876A

WRAPPER, Lower Generator

$

$

Currently unavailable

13

Briggs & Stratton 61762

PANEL, End

$

$

Currently unavailable

14

Briggs & Stratton 61771

COVER, End Panel

$

$

Currently unavailable

15

Briggs & Stratton 58837B

BAFFLE, Generator Air (Left)

$

$

Currently unavailable

16

Briggs & Stratton 58887C

BAFFLE, Generator Air (Right)

$

$

Currently unavailable

17

Briggs & Stratton 60209

ADAPTER, Generator Sheet Metal

$

$

Currently unavailable

18

Briggs & Stratton 61763A

WRAPPER, Upper Generator

$

$

Currently unavailable

19

Briggs & Stratton 58873

COVER, Muffler and Head

$

$

Not available

20

Briggs & Stratton 61769

HANDLE, Carrying

$

$

Currently unavailable

21

Briggs & Stratton 59635

SCREW - No. 8 x 3/8"

$

$

Currently unavailable

22

Briggs & Stratton 56892

SCREW - No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 50992

WASHER, Exhaust Manifold

$

$

Currently unavailable

26

Briggs & Stratton 27794

CAP, Plastic

$

$

Currently unavailable
