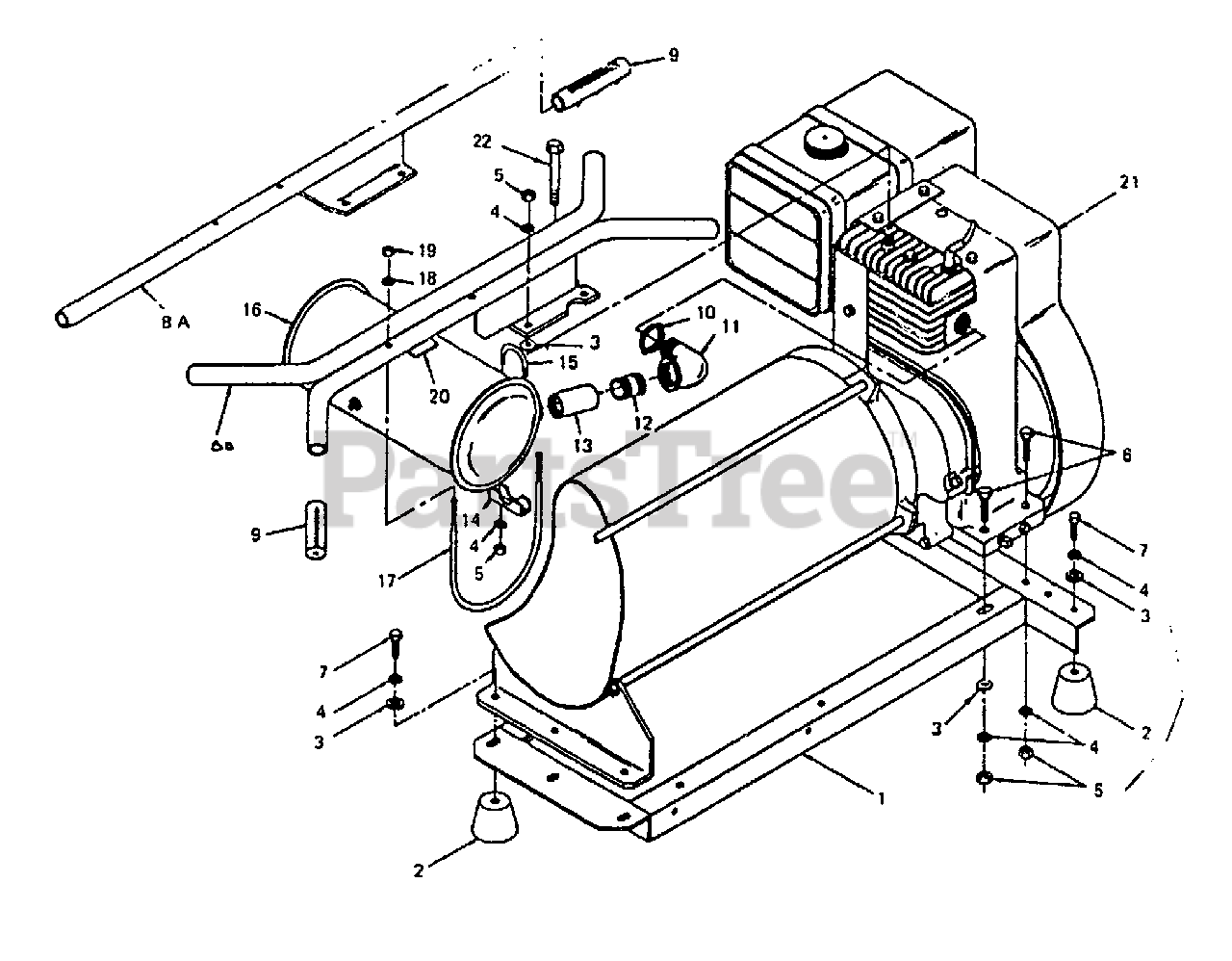

8716-0 - Generac 4,000 Watt Portable Generator Mounting Base, Muffler And Handle No. 50781 - 4.0 KW Parts Diagram

4,000 Watt Portable Generator

Mounting Base, Muffler And Handle No. 50781 - 4.0 KW Parts Diagram

  • Title

1

Briggs & Stratton 44901

BASE, Mounting

Note: (For units with Briggs & Stratton 11 Horsepower Engine Only)

$

$

Currently unavailable

2

Briggs & Stratton 37395

MOUNT, Vibration

$

$

Currently unavailable

3

Briggs & Stratton 22145

WASHER, Flat - 5/16"

$

$

Not available

4

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22531

CAPSCREW, Hex Head - 5/16"-10 x 1-3/4"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22142

CAPSCREW, Hex Head - 5/16"-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

8A

Briggs & Stratton 44361

HANDLE, Carrying

Note: (For 7 and 8 Horsepower Briggs & Stratton Engines). Not used on this model. See ref 8B

$

$

Not available

8B

Briggs & Stratton 43985

HANDLE, Carrying
(Superseded to 5043985)

Note: (For 11 Horsepower Briggs & Stratton Engines).

$119.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 25094

GRIP, Carrying Handle
(Superseded to 5025094)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 26772

NUT, Pipe Lock - 1"
(Superseded to 26772GS)

Note: (For 11 Horsepower Briggs & Stratton Engines)

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 25765

ELBOW, 90 degree - 1"

Note: (For 11 Horsepower Briggs & Stratton Engines Only)

$

$

Currently unavailable

12

Briggs & Stratton 25435

NIPPLE, Pipe - 1" NPT x 6" long

Note: (For 11 Horsepower Engines)

$

$

Not available

13

COUPLING, Pipe - 3/4" NPT

Note: (For 7 and 8 Horsepower Engines Only). Not used on this model

$

$

Not available

14

Briggs & Stratton 28237

SADDLE, Muffler Clamp
(Superseded to 7028237YP)

$109.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 28238

U-BOLT, Muffler Clamp

$

$

Currently unavailable

16

Briggs & Stratton 43951

MUFFLER, Exhaust

$

$

Currently unavailable

17

Briggs & Stratton 27110

U-BOLT - 4-5/8" Diameter
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

19

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

20

Briggs & Stratton 37897

SHIELD, Heat

$

$

Currently unavailable

21

Briggs & Stratton 50765

ENGINE - 11 Horsepower Manual Start

$

$

Currently unavailable

21

Briggs & Stratton 50764

ENGINE - 11 Horsepower Electric Start

$

$

Currently unavailable

22

Briggs & Stratton 24246

CAPSCREW, Hex Head (Grade 5) - 5/16"-18 x 2-3/4"

Note: (11 Horsepower Engine Only)

$1.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 45122

STABILIZER, Exhaust Muffler
(Superseded to 7045122YP)

Note: (For 11 Horsepower Engine Only)

$11.99

$

Usually ships in 2-12 days

0
