8733-0 - Generac 3,000 Watt Portable Generator AC Generator No. 62043 Parts Diagram

3,000 Watt Portable Generator

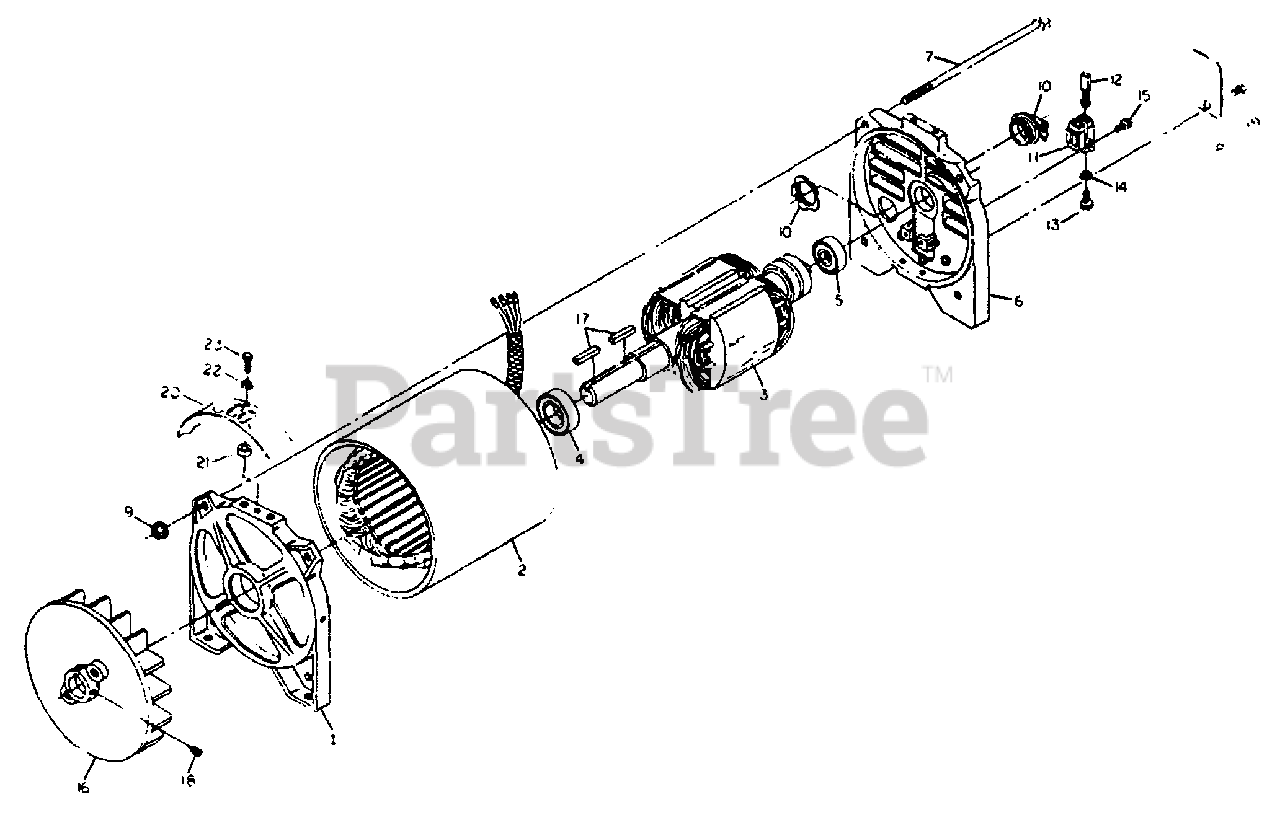

AC Generator No. 62043 Parts Diagram

  • Title

1

Briggs & Stratton 55630A

CARRIER, Front Bearing

$

$

Currently unavailable

2

Briggs & Stratton 62039

STATOR

$

$

Currently unavailable

3

Briggs & Stratton 62038

ROTOR

$

$

Currently unavailable

4

Briggs & Stratton 31971

BEARING, Pulley End

$

$

Not available

5

Briggs & Stratton 22701

BEARING, Slip Ring End

$

$

Currently unavailable

6

Briggs & Stratton 55632

CARRIER, Rear Bearing

$

$

Currently unavailable

7

Briggs & Stratton 44395D

BOLT - 1/4"-20 x 9"

$

$

Currently unavailable

8

Briggs & Stratton 55652

COVER, Brush Inspection

$

$

Currently unavailable

9

Briggs & Stratton 50993

NUT, Lock - 1/4"-20

$22.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 34616

CONNECTOR

$

$

Currently unavailable

11

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 25105

SCREW (Sims) - No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23364

WASHER, Shakeproof - No. 6
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 32111

SCREW, Self-Tapping - No. 8-32 x 5/8"

$

$

Currently unavailable

16

Briggs & Stratton 60224

FAN

$

$

Currently unavailable

17

Briggs & Stratton 23139

KEY - 3/16" square x 1" long

$

$

Not available

18

Briggs & Stratton 26615

SCREW, Cup Point Allen Head 1/4"-20 x 5/16"

$

$

Currently unavailable

19

Briggs & Stratton 26902

SCREW, Self-Tapping - No. 8-32 x 1/4"

$

$

Not available

20

Briggs & Stratton 62054

GUARD, Fan

$

$

Currently unavailable

21

Briggs & Stratton 38198

SPACER

$

$

Currently unavailable

22

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 22287

CAPSCREW, Hex Head - 1/4"-20 x 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0
