875 (917374456) - Husqvarna Walk-Behind Mower (2008-02) DRIVE Parts Diagram

Walk-Behind Mower

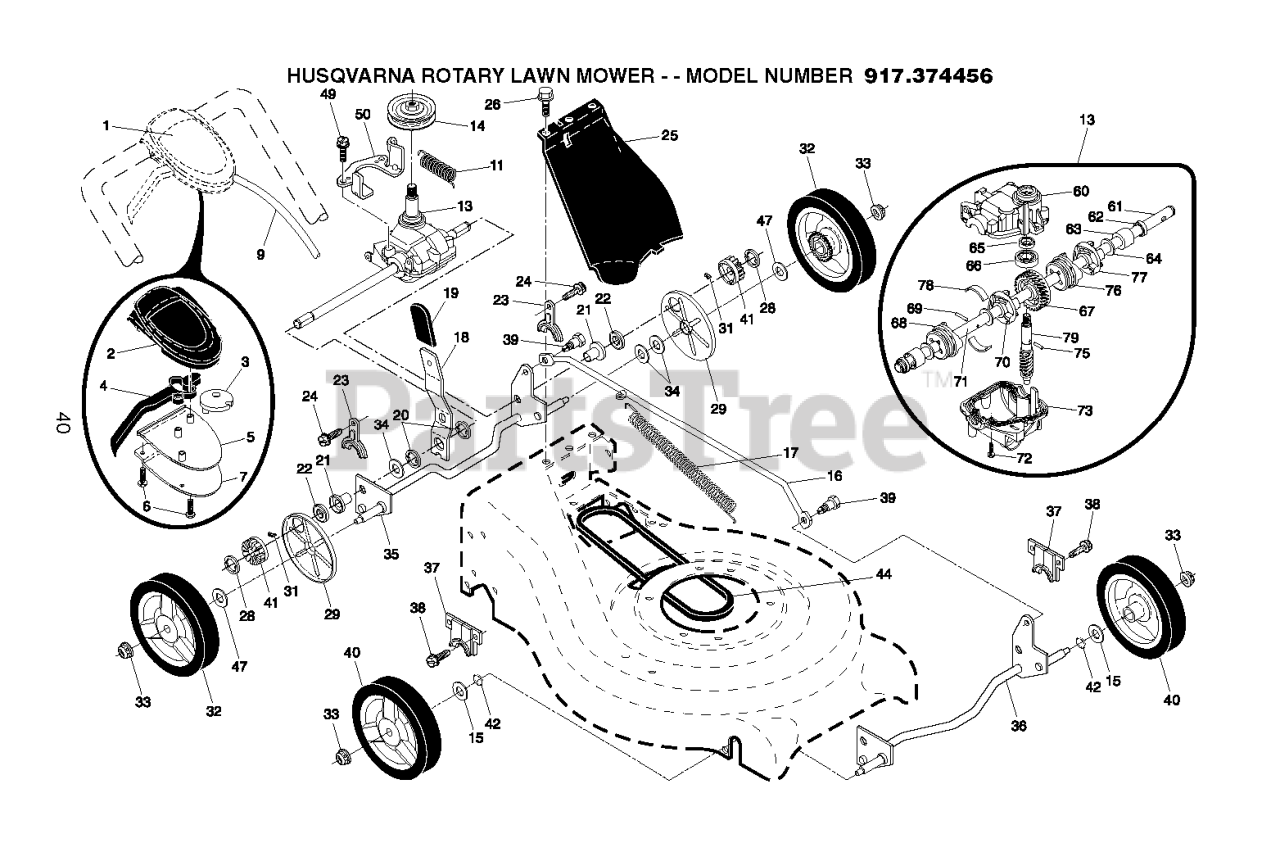

DRIVE Parts Diagram

  • Title

41

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.49

$

In Stock, Qty 20+

0

50

Husqvarna 532404832

BRACKET.BELT.GUIDE.VS.RGD.BZP

$

$

Not available

5

Husqvarna 532406261

COVER BOTTOM AUTO WLK CONTROL

$24.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532412737

SHAFT WORM

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532851226

WASHER

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

25

Husqvarna 532400783

COVER.DRIVE.21.RWGD.MO

$12.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532412740

DOG.MOVEABLE.LH.32005

Note: LH

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

68

Husqvarna 532412739

DOG.FIXED.LH.32003

Note: LH

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

26

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

65

Husqvarna 532183514

SEAL INPUT SHAFT

$7.49

$

In Stock, only 2 left!

0

44

Husqvarna 532406580

BELT.RGD.VS

$30.99

$

In Stock, only 4 left!

0

73

Husqvarna 532412747

CASE, LOWER

$15.99

$

Usually ships in 3-10 days

0

24

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 2 left!

0

63

Husqvarna 532183511

BUSHING

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532088343

WASHER PM
(Superseded to 532088348)

$7.49

$

In Stock, only 3 left!

0

47

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

78

Husqvarna 532410731

SPRING LEAF

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532412736

CASE UPPER

$15.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532407147

ROD.CONNECTING.SPT.BLACK

$

$

Not available

18

Husqvarna 532418835

SPRING.SELECTOR.SPT.21.BZP

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 532407344

DRIVE CONTROL ASSY, AUTO WALK
(Superseded to 532425581)

$

$

Not available

9

Husqvarna 532406258

CABLE.ASSY.RGD.EZ.AUTO

$53.99

$

In Stock, only 1 left!

0

20

Husqvarna 812000022

E-RING

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532406260

COVER TOP AUTO WALK CONTROL

$

$

Not available

7

Husqvarna 532400235

BRACKET.DRIVE.CONTROL.MOUNT.BL
(Superseded to 532400723)

$

$

Not available

19

Husqvarna 532189808

KNOB.S/P.RWGD.EXT.ERGO.GREY

$

$

Not available

49

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

71

Husqvarna 532412756

SHAFT OUTPUT SHORT (12294)

$24.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532401273

WHEEL.8X1.75.H3SPK.RAD3.GY.BB1

$37.99

$

In Stock, Qty 19

0

21

Husqvarna 532404838

BEARING.ASM.RGD.AUTO.SP

$18.99

$

In Stock, only 4 left!

0

31

Husqvarna 532404845

PAWL, DRIVE

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532404839

TRANSMISSION.21.RWGD.AUTO.SP

$103.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532406262

PULLEY.CAM.DRIVE.CONTROL.EZ

$

$

Not available

17

Husqvarna 532409616

SPRING EXTENSION

$7.49

$

In Stock, only 4 left!

0

72

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

4

Husqvarna 532190039

LEVER, AUTOWALK DRIVE CONTROL
(Superseded to 532425583)

$26.99

$

In Stock, only 1 left!

0

75

Husqvarna 532412746

PIN 3.50.337 - 33733

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 19

0

32

Husqvarna 532405746

WHEEL.8X1.75.H3SPK.RAD3.GY
(Superseded to 581685101)

$24.99

$

In Stock, Qty 9

0

77

Husqvarna 532412744

DOG.FIXED.RH.32004

Note: RH

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532412742

GEAR 28 TEETH

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532407175

SHAFT.ASM.FRONT.TORQUE.BZP.

$27.99

$

Usually ships in 3-10 days

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 3 left!

0

61

Husqvarna 532412757

SHAFT OUTPUT LONG

$30.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 1 left!

0

35

Husqvarna 532403102

SHAFT.ASM.REAR.TORQUE.BZP.8

$28.99

$

In Stock, only 3 left!

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532193443

PULLEY.1.PIECE

$17.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$6.49

$

In Stock, only 2 left!

0

69

Husqvarna 532412741

PIN 7 33732

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532161118

RETAINER DRIVE ASM. STMP.

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532412743

DOG.MOVEABLE.RH.32006

Note: RH

$4.99

$

Usually ships in 3-10 days

0
