875-SU - Cub Cadet 272cc Engine 875-SU General Assembly Parts Diagram

272cc Engine

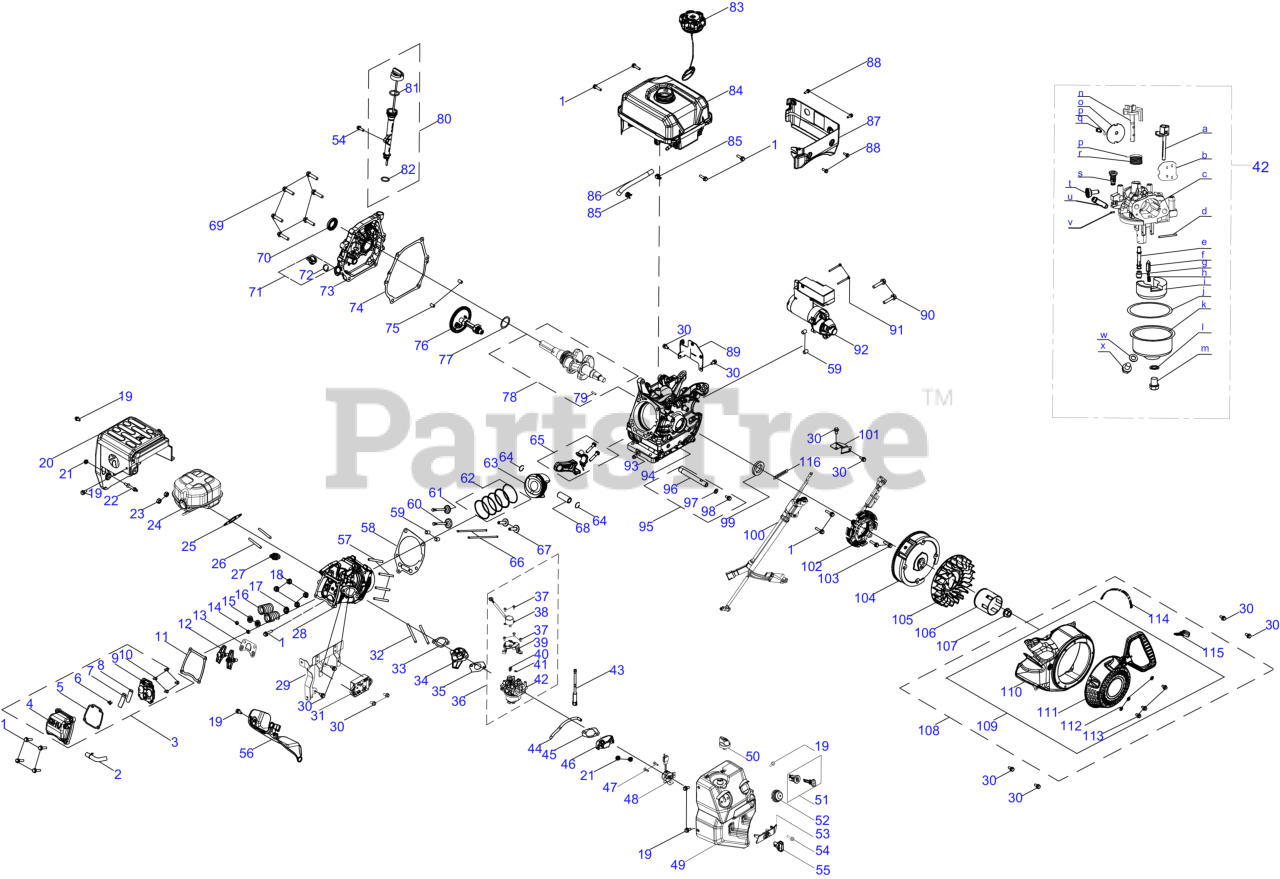

875-SU General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 751P16807

BREATHER HOSE

$1.99

$

Usually ships in 3-6 days

0

3

Cub Cadet NSCO

Not Serviceable/ Components Only

$

$

Currently unavailable

4

Cub Cadet 751P16806

VALVE COVER

$11.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 751P16808A

VALVE COVER GASKET

$1.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-07514

SCREW M3x8
(Superseded to 710P07514)

$1.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 751P22260

BREATHER PLATE

$1.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 751P16810

BREATHER VALVE

$1.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 751P16826A

INNER VALVE COVER

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-07534

SCREW M5x12
(Superseded to 710P07534)

$1.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 751P16827A

VALVE COVER GASKET

$1.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 751P16828A

ROCKER ARM

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 751P16829

ROCKER ARM BASE

$1.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 751P16830

VALVE CLIP

$1.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 751P16831

VALVE SPRING SEAT

$1.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 751P16832A

VALVE SPRING

$1.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 921-04705A

INTAKE VALVE SEAL

$5.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-05521

NUT M8
(Superseded to 712P05521)

$0.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 751P16833

MUFFLER GUARD

$55.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-05015

HEX NUT

$6.49

$

In Stock, only 4 left!

0

22

Cub Cadet 751-16886

STUD, M6x55

$1.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-04214

NUT

$4.49

$

In Stock, Qty 5

0

24

Cub Cadet 751P16887A

MUFFLER

$41.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 751P16888A

MUFFLER GASKET

$1.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 910-06299

STUD

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

28

Cub Cadet 751P16889

CYLINDER HEAD

$125.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 751P22622

SNOW GUARD

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 8

0

31

Cub Cadet 751P22623

EGOV ECM

$41.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-06423

STUD M6-1 x 98

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 751P16891A

CARB INSULATOR GASKET

$2.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 751P16892

INSULATOR

$2.49

$

In Stock, only 1 left!

0

35

Cub Cadet 751P12005A

CARBURETOR GASKET

$5.49

$

In Stock, Qty 20+

0

36

Cub Cadet 651P08739

CARBURETOR

$56.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 751-22625

SCREW M4x8

$1.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 751P22626

STEPPER EGOV MOTOR

$10.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 751P22627

MOTOR BASE

$4.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 731P19432

CARBURETOR DAMPER

$5.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 732P06906

DAMPER SPRING

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 651P08738

CARBURETOR

$34.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 751P16894A

CHOKE LINKAGE

$3.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-15535

PRIMER HOSE

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 751P16895A

AIR FILTER GASKET

$2.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 751P16896

HEATER BOX

$2.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 751-20216

SCREW

$2.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 751P22628

SPEED CONTROL SWITCH

$15.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 751P16906

CONTROL PANEL

$10.99

$

In Stock, only 1 left!

0

50

Cub Cadet 951-15450

CHOKE LEVER

$

$

Not available

51

Cub Cadet 951-15022A

ENGINE KEY SWITCH ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

52

Cub Cadet 951-10639A

PRIMER

$13.99

$

In Stock, Qty 20+

0

53

Cub Cadet 751P22630

SPEED KNOB COVER

$3.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-05003

BOLT M6-1 x 18 GR8.8

$3.99

$

In Stock, Qty 5

0

55

Cub Cadet 751P22629

SPEED CONTROL KNOB

$2.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 751P16907

ENGINE SHROUD

$3.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 710-07594

STUD M8x60
(Superseded to 710P07594)

$2.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 751P16908

CYLINDER HEAD GASKET

$14.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 715-04120

DOWEL PIN

$3.99

$

In Stock, only 4 left!

0

60

Cub Cadet 751P16909

INTAKE VALVE

$4.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 751P16910

EXHAUST VALVE

$3.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-14471A

PISTON RING SET 75MM

$21.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 751P16911

PISTON

$10.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-11632A

PISTON PIN SNAP RING

$3.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 751P16912A

CONNECTING ROD

$10.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 751P16913A

PUSH ROD

$3.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-14432A

TAPPET

$7.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 711P07981A

PISTON PIN

$2.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 710-07614

BOLT M8x35
(Superseded to 710P07614)

$1.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 751P11368A

OIL SEAL

$2.99

$

In Stock, only 4 left!

0

71

Cub Cadet 931-09966

OIL PLUG

$5.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-11577

O-RING 15.8 x 2.5

$3.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 751P22632

CRANKCASE COVER

$44.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 751P16927

CRANKCASE GASKET

$3.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 715-04121

DOWEL PIN

$3.99

$

In Stock, only 2 left!

0

76

Cub Cadet 751P16928

CAMSHAFT

$20.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 736P05602

THRUST WASHER

$5.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 751P22633

CRANKSHAFT

$69.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 11

0

80

Cub Cadet 651P06055

DIPSTICK

$7.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 921-04795A

O-RING

$3.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-15459

O-RING

$3.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-15172

FUEL CAP

$

$

Not available

84

Cub Cadet 751P16947

FUEL TANK

$71.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 951-11700A

CARBURETOR HOSE CLAMP

$3.99

$

In Stock, only 3 left!

0

86

Cub Cadet 751P16948

FUEL HOSE

$3.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 751P16986

FUEL TANK COVER

$5.49

$

Usually ships in 3-6 days

0

88

Cub Cadet 751-22263

Bolt, M5×14

$1.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 751P17026

DIPSTICK BRACKET

$1.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 710-07634

BOLT, M8x40

$1.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 751-15472

SCREW

$4.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 751P17046

ELECTRIC STARTER

$258.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 710-07374

OIL DRAIN PLUG
(Superseded to 710P07374)

$3.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 751P22634

CRANKCASE

$98.99

$

Usually ships in 3-6 days

0

95

Cub Cadet NSCO

Not Serviceable/ Components Only

$

$

Currently unavailable

96

Cub Cadet 951-11350

OIL DRAIN PIPE

$8.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 736-04440

WASHER
(Superseded to 736-04440A)

$6.49

$

In Stock, Qty 6

0

98

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.49

$

In Stock, Qty 6

0

99

Cub Cadet 751P17067

OIL SEAL

$1.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 751P22635

IGNITION MODULE

$21.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 751-17106

WIRE BOARD

$6.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 751P22636

CHARGING COIL

$39.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$3.99

$

In Stock, only 2 left!

0

104

Cub Cadet 751P22637

FLYWHEEL

$74.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 751P17146

COOLING FAN

$4.49

$

Usually ships in 3-6 days

0

106

Cub Cadet 751P17166

STARTER CUP

$3.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 712-04287

FLYWHEEL NUT

$6.49

$

In Stock, only 1 left!

0

108

Cub Cadet NSCO

Not Serviceable/ Components Only

$

$

Currently unavailable

109

Cub Cadet NSCO

Not Serviceable/ Components Only

$

$

Currently unavailable

110

Cub Cadet 751P17266

BLOWER HOUSING

$15.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 951-15538

RECOIL STARTER ASSEMBLY

$61.99

$

In Stock, only 1 left!

0

112

Cub Cadet 736-04455B

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

113

Cub Cadet 710-06354

BOLT M6 x 10

$6.49

$

Usually ships in 3-6 days

0

114

Cub Cadet 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

115

Cub Cadet 951-10630

IGNITION KEY

$6.49

$

In Stock, Qty 18

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Carburetor Body

$

$

Not available

d

Cub Cadet 711-06036

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

e

Nozzle Tube

$

$

Not available

f

Cub Cadet 751P14036A

NEEDLE VALVE

$5.49

$

Usually ships in 3-6 days

0

g

Main Jet

$

$

Not available

h

Cub Cadet 732P05251A

NEEDLE VALVE SPRING

$1.99

$

Usually ships in 3-6 days

0

i

Cub Cadet 731P09132A

FLOAT

$4.99

$

Usually ships in 3-6 days

0

j

Cub Cadet 951-11589A

FUEL BOWL O-RING

$6.49

$

In Stock, Qty 20+

0

k

Cub Cadet 908-05001

FLOAT BOWL

$7.99

$

In Stock, only 1 left!

0

l

Cub Cadet 951-11348A

FUEL BOWL GASKET

$5.49

$

Usually ships in 3-6 days

0

m

Cub Cadet 710-04945

BOLT M8-1 x 10

$3.99

$

In Stock, Qty 8

0

n

Cub Cadet 100006057

Throttle Shaft

$

$

Currently unavailable

o

Cub Cadet 708P05012

THROTTLE PLATE

$2.99

$

Usually ships in 3-6 days

0

p

Cub Cadet 736-04638A

LOCK WASHER

$3.49

$

In Stock, only 1 left!

0

q

Cub Cadet 710-06230

SCREW-3Mx6

$3.49

$

Usually ships in 3-6 days

0

r

Throttle Shaft Spring

$

$

Not available

s

Idle Jet Assembly

$

$

Not available

t

Cub Cadet 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

u

Venting Hose

$

$

Not available

v

Cub Cadet 951-12019A

PRIMER HOSE

$6.99

$

In Stock, only 2 left!

0

w

Cub Cadet 951-11349A

FUEL DRAIN PLUG GASKET

$3.99

$

In Stock, Qty 16

0

x

Cub Cadet 710-04938

FUEL DRAIN PLUG

$3.99

$

In Stock, only 4 left!

0

Cub Cadet 752Z875-SU

COMPLETE ENGINE 272cc

$

$

Not available
