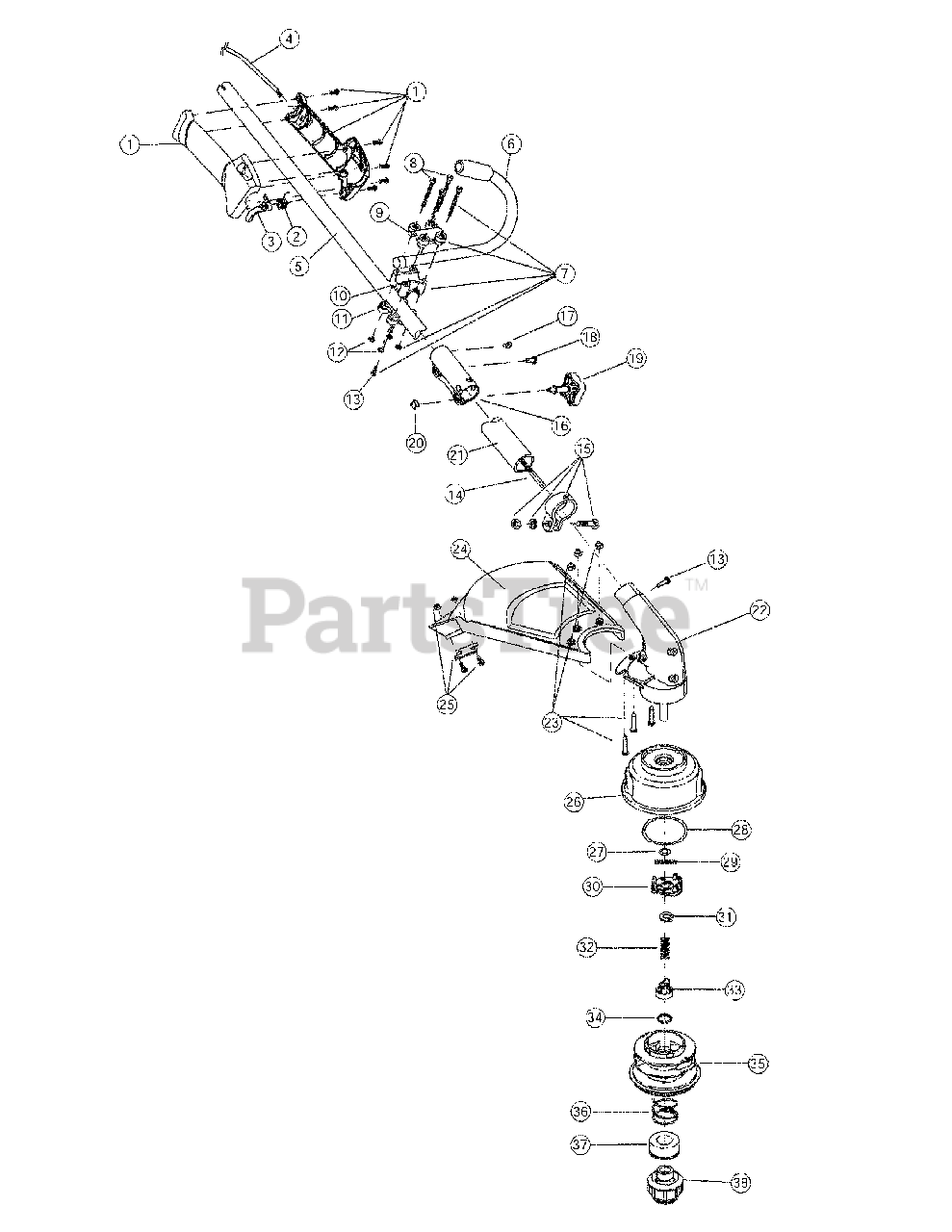

875r (41AD875A734) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing and Trigger Assembly

Note: (Includes 2&3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 753-1231

Throttle Cable Assembly

$17.99

$

In Stock, only 3 left!

0

5

MTD 753-1247

Upper Drive Shaft Housing Assembly
(Superseded to 753-04503)

$

$

Not available

6

MTD 791-180687

J-Handle Assembly

Note: (Includes 7)

$41.99

$

Usually ships in 3-6 days

0

7

MTD 791-683295

Handle Bracket Assembly

Note: (Includes 8-13

$45.99

$

Usually ships in 3-6 days

0

8

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

9

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

10

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

11

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

12

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

13

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

14

MTD 791-181166

Lower Flexible Drive Shaft

$28.99

$

In Stock, only 1 left!

0

15

MTD 791-153597

Lower Clamp Assembly

Note: (Includes 24)

$15.99

$

Usually ships in 3-6 days

0

16

MTD 791-181616B

Split Boom Coupler
(Superseded to 753-1190)

Note: (Includes 17-20)

$23.99

$

In Stock, only 4 left!

0

17

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

18

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

19

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

20

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

21

MTD 753-04089

Lower Drive Shaft Housing Assembly

$49.99

$

Usually ships in 3-6 days

0

22

MTD 791-181470

Gearbox Assembly

Note: (Includes 13 & 27-39)

$

$

Not available

23

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

24

MTD 791-180548

Shield Assembly

Note: (Includes 28)

$

$

Not available

25

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

26

MTD 791-181457

Outer Spool Assembly

Note: (Includes 30)

$39.99

$

In Stock, only 2 left!

0

27

MTD 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

28

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

29

MTD 791-181459

Small Spring

$4.49

$

In Stock, Qty 19

0

30

MTD 753-04257

Slider

$7.49

$

In Stock, Qty 8

0

31

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 17

0

32

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

33

MTD 791-181462

Plunger

$

$

Not available

34

MTD 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

35

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

In Stock, Qty 7

0

36

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

37

MTD 791-181467

Foam Seal & Washer

$

$

Not available

38

MTD 791-181468B

Bump Head Knob Assembly

Note: (Includes 37)

$15.99

$

Usually ships in 3-6 days

0

MTD 791-181472

Replacement Line, 0.080 Diameter
(Superseded to 791-181460B)

Note: Not Shown

$32.99

$

In Stock, Qty 7

0

MTD 791-181460B

Reel and Line Assembly

Note: Not Shown

$32.99

$

In Stock, Qty 7

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0
