8795-1 - Niagara 4,000 Watt Portable Generator AC Generator No. 68377 Parts Diagram

4,000 Watt Portable Generator

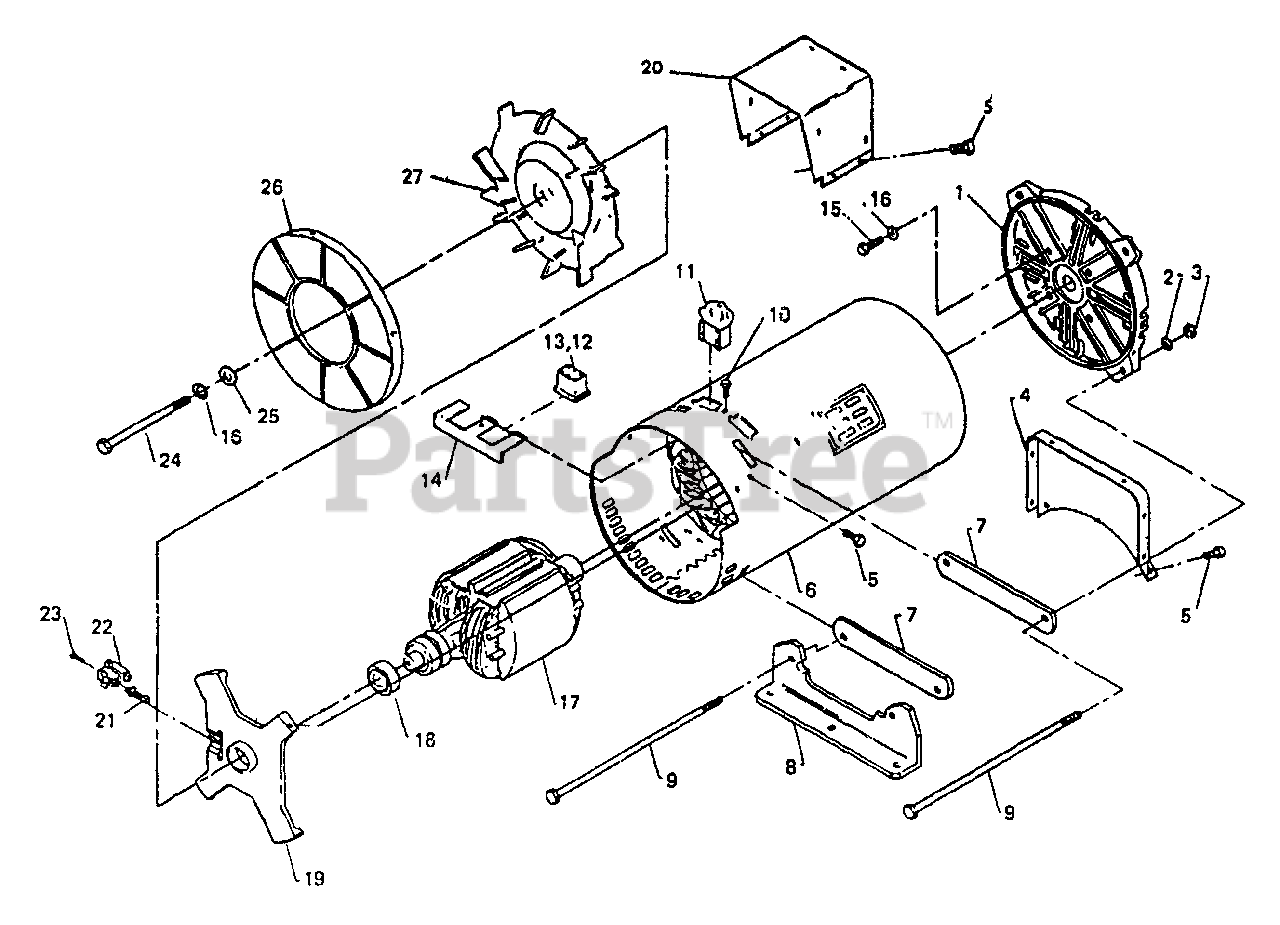

AC Generator No. 68377 Parts Diagram

  • Title
1

Briggs & Stratton 60220F

HOUSING, Engine Adapter

$

$

Currently unavailable

2

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

4

Briggs & Stratton 43874

BACK, Panel Shroud
(Superseded to 7043874YP)

$34.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 24489

SCREW (Taptite) - No. 10-32 x 3/8"

$

$

Currently unavailable

6

Briggs & Stratton 52523B

STATOR ASSEMBLY

$

$

Currently unavailable

7

Briggs & Stratton 44338

BAR, Stator Bolt

$

$

Currently unavailable

8

Briggs & Stratton 44392A

SUPPORT, Rear Generator

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Briggs & Stratton 24413

SCREW (Taptite) - No. 10-32 x 1/2"

$

$

Not available

11

Briggs & Stratton 28293

RECTIFIER, Bridge

$

$

Currently unavailable

12

Briggs & Stratton 22694

HOUSING, Receptacle (White)
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 43994

HOUSING, Receptacle (Red)

$

$

Not available

14

Briggs & Stratton 46079

RETAINER, Receptacle Housing

$

$

Currently unavailable

15

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Not available

16

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 64866

ROTOR ASSEMBLY

$

$

Currently unavailable

18

Briggs & Stratton 24049

BEARING, Rotor

$

$

Not available

19

Briggs & Stratton 44943

CARRIER, Bearing

$

$

Currently unavailable

20

Briggs & Stratton 43875

SHROUD, Panel
(Superseded to 7043875YP)

$110.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 25105

SCREW (Sims) - No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

24

$

$

Currently unavailable

25

Briggs & Stratton 50190

WASHER, Fan Retainer
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 44357

COVER, Fan
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

$

$

Not available
