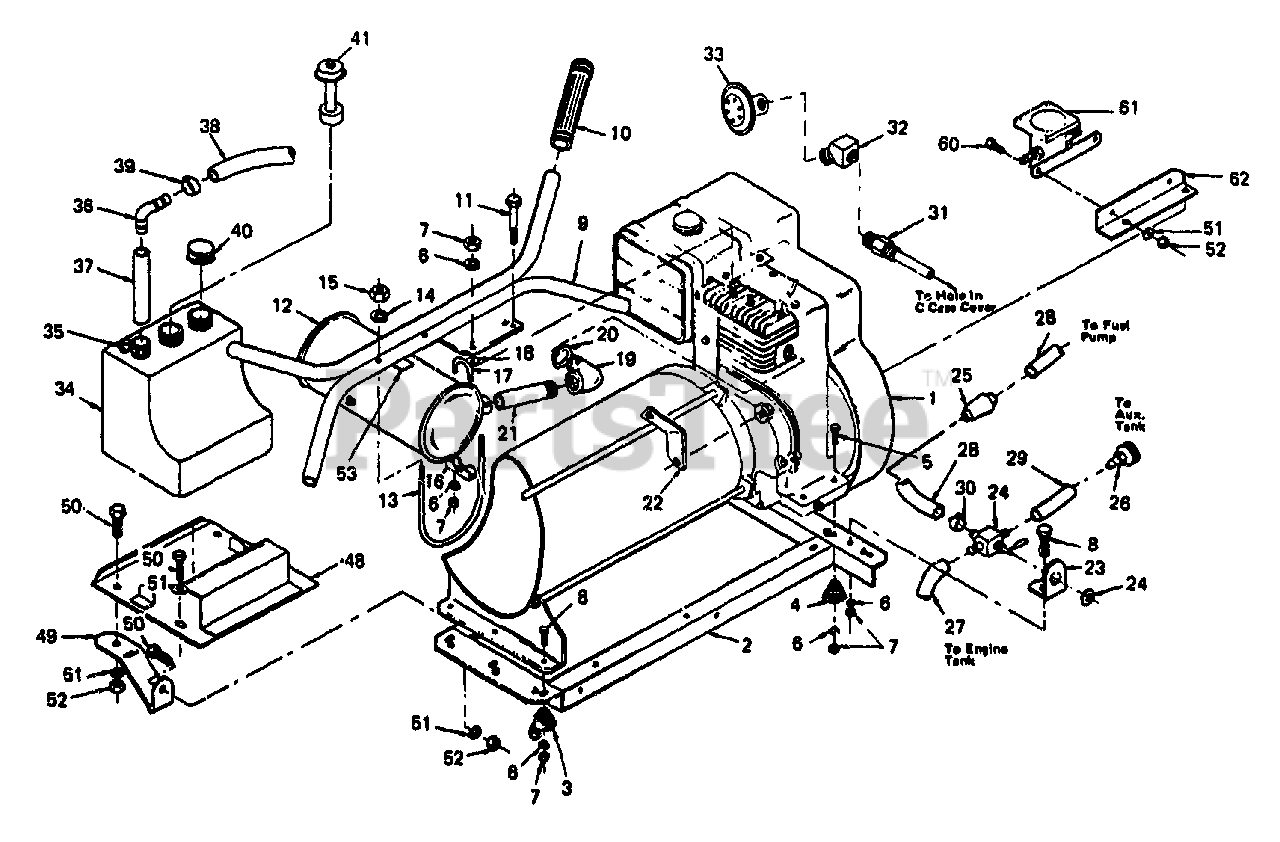

8799-1 - Niagara 5,000 Watt Portable Generator Handle And Mounting Base Parts Diagram

5,000 Watt Portable Generator

Handle And Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 57297

ENGINE - Briggs & Stratton Model 252415

$

$

Currently unavailable

2

Briggs & Stratton 51967

BASE, Mounting

$

$

Currently unavailable

3

Briggs & Stratton 25047

SPRING - With Loop
(Superseded to 7025047YP)

$47.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 23594

SPRING - Without Loop

$

$

Currently unavailable

5

Briggs & Stratton 22531

CAPSCREW, Hex Head - 5/16"-18 x 1 3/4"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22125

CAPSCREW, Hex Head - 5/16"-18 x 1"

$

$

Currently unavailable

9

Briggs & Stratton 43985

HANDLE, Carrying
(Superseded to 5043985)

$119.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 25094

GRIP, Carrying Handle
(Superseded to 5025094)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 24246

CAPSCREW, Hex Head - Grade 5-5/16"-18 x 2 3/4"

$1.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 43951

MUFFLER, Exhaust

$

$

Currently unavailable

13

Briggs & Stratton 27110

U-BOLT - 4-5/8" Diameter
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

15

Briggs & Stratton 22241

NUT, Hex - 3/8"

$

$

Not available

16

Briggs & Stratton 28237

SADDLE, U-Bolt - 1-3/8"
(Superseded to 7028237YP)

$109.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 28238

U-BOLT - 1-3/8"

$

$

Currently unavailable

18

Briggs & Stratton 22145

WASHER, Flat - 5/16"

$

$

Not available

19

Briggs & Stratton 25765

ELBOW, 90 Degree Street

$

$

Currently unavailable

20

Briggs & Stratton 26772

NUT, Pipe Lock - 1"
(Superseded to 26772GS)

$5.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 25435

NIPPLE, Pipe - 1" NPT x 6" Long

$

$

Not available

22

Briggs & Stratton 45122

STABILIZER, Exhaust Muffler
(Superseded to 7045122YP)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 47498

SUPPORT, Fuel Valve
(Superseded to 5047498B)

$

$

Not available

24

Briggs & Stratton 47797

VALVE, Fuel

$

$

Currently unavailable

25

Briggs & Stratton 47294

FILTER, Fuel

$

$

Not available

26

Briggs & Stratton 30288

COUPLING, Quick Disconnect

$

$

Currently unavailable

27

Briggs & Stratton 47662AJ

LINE, Fuel

$

$

Currently unavailable

28

Briggs & Stratton 47662V

LINE, Fuel

$

$

Currently unavailable

29

Briggs & Stratton 47662AH

LINE, Fuel

$

$

Currently unavailable

30

Briggs & Stratton 48031C

CLAMP, Hose

$

$

Not available

31

Briggs & Stratton 50962

PROBE, Oil Makeup

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 50961

ELBOW, 45 Degree Brass Street

$

$

Currently unavailable

33

Briggs & Stratton 46509

PUMP, Oil Makeup

$

$

Currently unavailable

34

Briggs & Stratton 48084

TANK, Oil Makeup

$

$

Currently unavailable

35

Briggs & Stratton 35472

CLAMP, Hose

$

$

Currently unavailable

36

Briggs & Stratton 49099

ELBOW, Barbed 90 Degree - 3/8"

$

$

Currently unavailable

37

Briggs & Stratton 47662N

HOSE, Oil

$

$

Currently unavailable

38

Briggs & Stratton 47662AD

HOSE, Oil

$

$

Currently unavailable

39

Briggs & Stratton 48031E

CLAMP, Hose

$

$

Currently unavailable

40

Briggs & Stratton 30449

CAP, Oil Makeup Tank

$

$

Not available

41

Briggs & Stratton 64385

SWITCH, Low Oil Level Shutdown

$

$

Currently unavailable

48

Briggs & Stratton 49344

TRAY, Oil makeup Tank

$

$

Currently unavailable

49

Briggs & Stratton 48827

SUPPORT, Oil Makeup Tank Tray

$

$

Currently unavailable

50

Briggs & Stratton 22287

CAPSCREW, Hex Head - 1/4"-20 x 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

53

Briggs & Stratton 37897

SHIELD, Heat

$

$

Currently unavailable

60

Briggs & Stratton 22507

CAPSCREW, Hex Head - 1/4"-20 x 1/2"

$

$

Not available

61

Briggs & Stratton 24492

SOLENOID, Starter

$

$

Currently unavailable

62

Briggs & Stratton 45001

SUPPORT, Starter Solenoid

$

$

Currently unavailable
