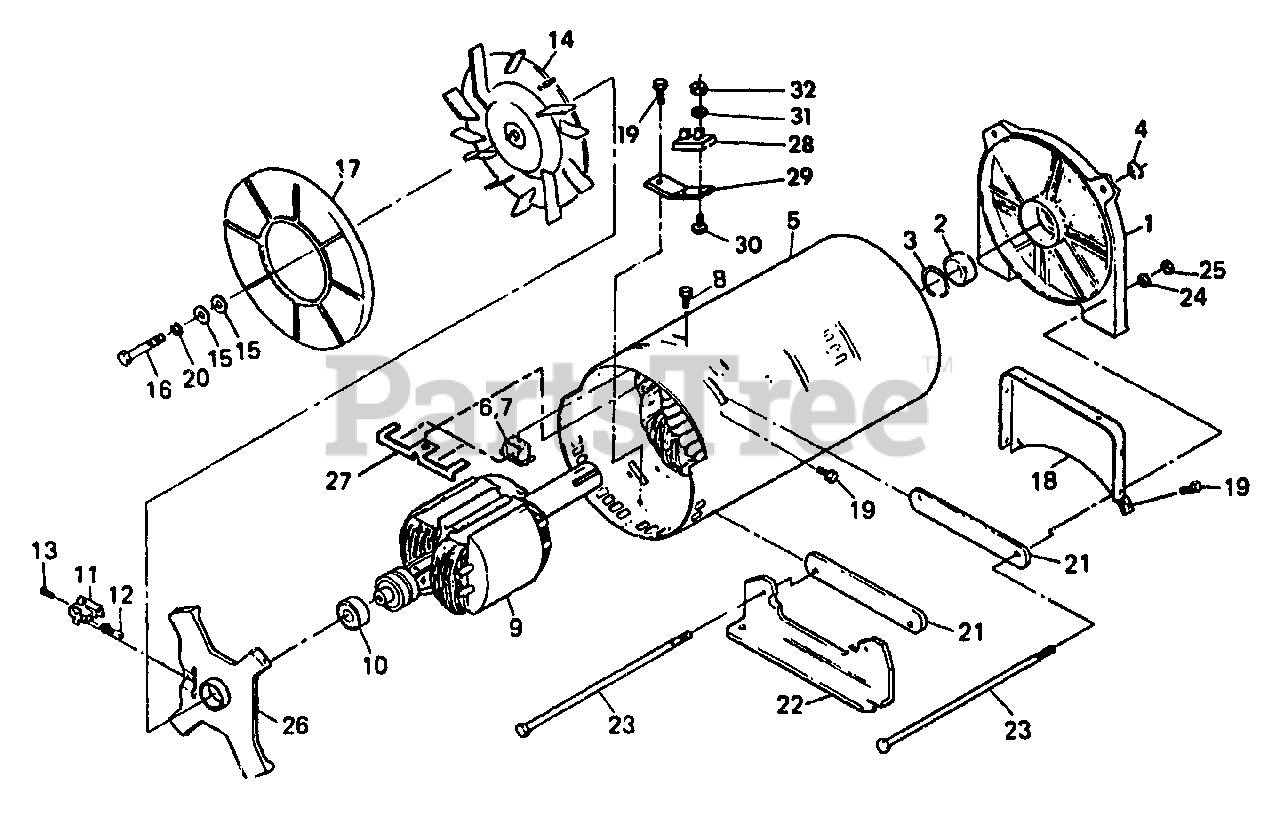

8800-0 - Niagara 3,000 Watt Portable Generator AC Generator No. 65728 Parts Diagram

3,000 Watt Portable Generator

AC Generator No. 65728 Parts Diagram

  • Title

1

Briggs & Stratton 45088

HOUSING, Adapter
(Superseded to 5045088)

$19.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 31971

BEARING

$

$

Not available

3

Briggs & Stratton 22816

RING, Snap - Internal
(Superseded to 5022816)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22122

RING, Snap - External

$

$

Currently unavailable

5

Briggs & Stratton 44961X

STATOR ASSEMBLY

$

$

Currently unavailable

6

Briggs & Stratton 22694

RECEPTACLE - White
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 43994

RECEPTACLE - Red

$

$

Not available

8

Briggs & Stratton 24413

SCREW (Taptite) - No. 10-32 x 1/2"

$

$

Not available

9

Briggs & Stratton 65727

ROTOR ASSEMBLY

$

$

Currently unavailable

10

Briggs & Stratton 24049

BEARING

$

$

Not available

11

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 25105

SCREW (With Lock Washer) - No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 45660

FAN

$

$

Currently unavailable

15

Briggs & Stratton 22145

WASHER, Flat - 5/16"

$

$

Not available

16

Briggs & Stratton 22142

SCREW, Hex Head Machine - 5/16"-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 44357

COVER, Fan
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 43874

BACK, Panel Shroud
(Superseded to 7043874YP)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 24489

SCREW (Taptite) - No. 10-32 x 3/8"

$

$

Currently unavailable

20

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 44338

BAR, Stator Bolt

$

$

Currently unavailable

22

Briggs & Stratton 45050

SUPPORT, Rear Generator

$

$

Currently unavailable

23

Briggs & Stratton 44395A

BOLT, Stator - 8.25" Long

$

$

Currently unavailable

24

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

26

Briggs & Stratton 44943

CARRIER, Rear Bearing

$

$

Currently unavailable

27

Briggs & Stratton 46079

RETAINER, Receptacle

$

$

Currently unavailable

28

Briggs & Stratton 54502

BREAKER, Circuit - 3 Ampere

$

$

Not available

29

Briggs & Stratton 65715

SUPPORT, Circuit Breaker

$

$

Currently unavailable

30

Briggs & Stratton 33132

SCREW, Machine - No. 6-32 x 3/8"

$

$

Currently unavailable

31

Briggs & Stratton 22155

WASHER, Lock - No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 22188

NUT, Hex - 6-32

$

$

Currently unavailable
