8800 HG (UT-10810) - Homelite Chainsaw Hand Guard - Handles Parts Diagram

Chainsaw

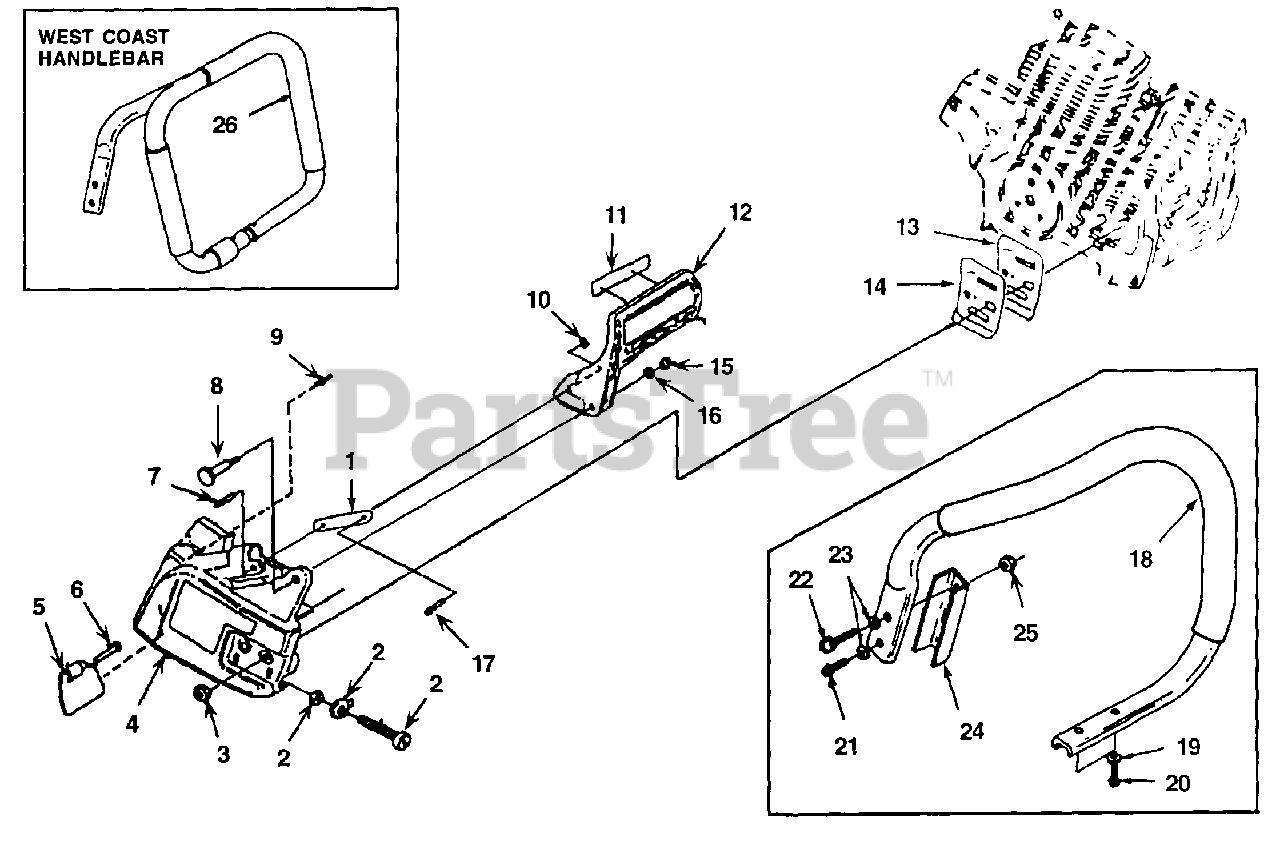

Hand Guard - Handles Parts Diagram

  • Title

1

Homelite PS01153

HAND GUARD LINK

$

$

Currently unavailable

2

Homelite A04889

GUIDE BAR ADJ. KIT

$

$

Not available

3

Homelite 810892

NUT - HEX (10-24)

Note: Hand Tight

$7.99

$

Usually ships in 3-7 days

0

4

Homelite A98727C

COVER - DRIVE CASE
(Superseded to UP05615)

$

$

Not available

5

Homelite 04634

SAWDUST SHIELD

$

$

Not available

6

Homelite 85154

RIVET - PAN HO (.187 X .381)
(Superseded to UP06457)

$

$

Not available

7

Homelite 98456

PIN (5M X 16MM)

$

$

Not available

8

Homelite 98461

SCREW - SHOULDER (M5)

Note: Torque Spec. 40 - 50 In/Lbs, 4.5 - 5.6 Nm

$

$

Not available

9

Homelite PS97331

PIN - SHOULDER DOWEL
(Superseded to UP07033)

$

$

Not available

10

Homelite 01820

RING - SNAP

$

$

Not available

11

Homelite 02661

DECAL - HANDGUARD

$

$

Not available

12

Homelite 98740

HANDGUARD

$

$

Not available

13

Homelite 70399

PLATE - G/BAR (INNER)
(Superseded to UP06812)

$

$

Not available

14

Homelite 70400

PLATE - G/BAR (OUTER)
(Superseded to UP06865)

$

$

Not available

15

Homelite 98457

NUT (5MM)

Note: Torque Spec. 40 - 50 In/Lbs, 4.5 - 5.6 Nm

$

$

Not available

16

Homelite 83203

WASHER - BELLEVILLE (12MM)

$

$

Not available

17

Homelite 98422A

PIN - (.156 DIA)

$

$

Currently unavailable

18

Homelite A04623

HANDLE BAR (Flush Cut)

$

$

Not available

19

Homelite 12021

WASHER - Conical (#10)

$

$

Not available

20

Homelite 80345

SCREW - Socket Cap (10-32 X 5/8")

Note: Torque Spec. 70 - 80 In/Lbs, 7.9 - 9.0 Nm; 262 Red Loctite Required

$

$

Not available

21

Homelite 82283

SCREW - Socket Cap (10-24 X 3/4")

Note: Torque Spec. 80 - 90 In/Lbs, 9.0 - 10.2 Nm; 262 Red Loctite Required

$

$

Not available

22

Homelite 82169

SCREW - Socket Cap (10-32 X 7/8")

Note: Torque Spec. 80 - 90 In/Lbs, 9.0 - 10.2 Nm; 262 Red Loctite Required

$

$

Not available

23

Homelite 12021

WASHER - Conical (#10)

$

$

Not available

24

Homelite A07435

NEST KIT

Note: (Includes 24, 51, 54, 55 & 56)

$

$

Currently unavailable

25

Homelite 81206

NUT - Lock (#10)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 16

0

26

Homelite A04624

HANDLE BAR (West Coast)

$

$

Currently unavailable
