8800 HG (UT-10810) - Homelite Chainsaw Starter - Ignition - Exhaust System Parts Diagram

Chainsaw

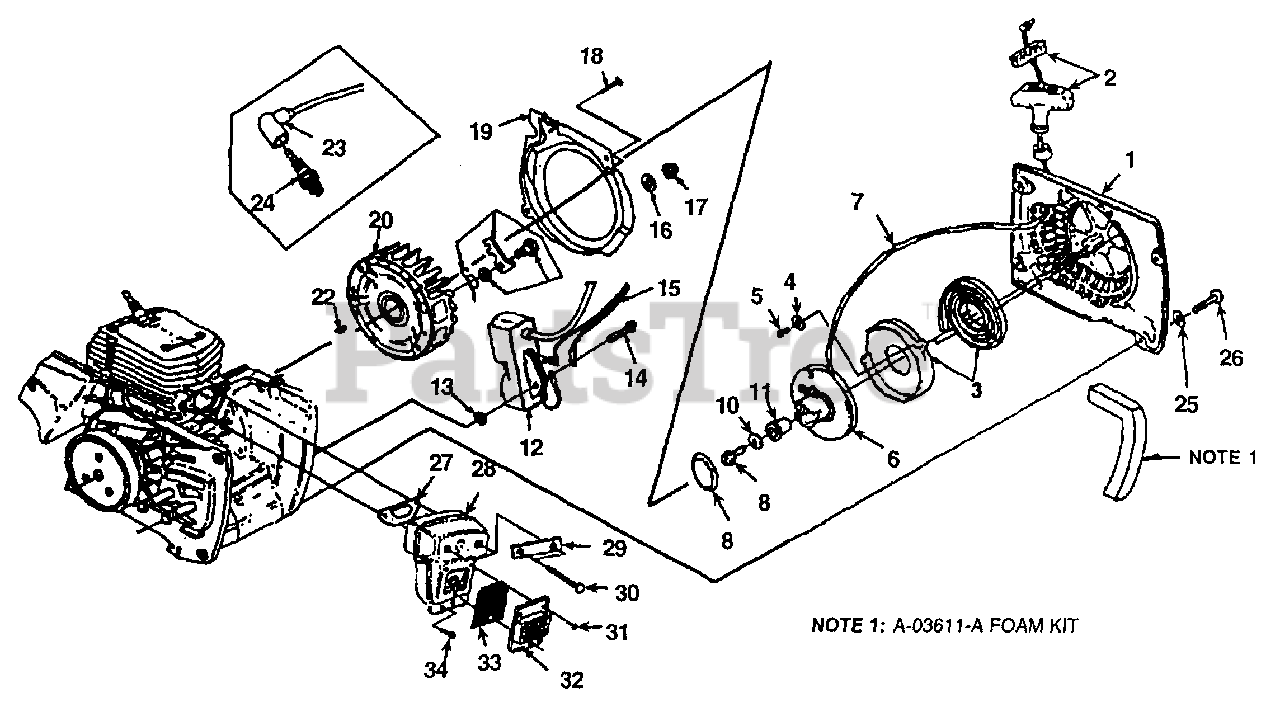

Starter - Ignition - Exhaust System Parts Diagram

  • Title

1

Homelite A02292A

STARTER COMPLETE
(Superseded to UP07154)

$

$

Not available

2

Homelite A69962B

GRIP - W/INSERT

$11.99

$

Usually ships in 3-7 days

0

3

Homelite A98067A

SPRING & RETAINER

$24.99

$

Usually ships in 3-7 days

0

4

Homelite 84025

WASHER - FLAT (#8)

$

$

Not available

5

Homelite 82528

SCREW - THREAD FORM (6 X 3/8")

Note: Torque Spec. 8 - 12 In/Lbs, .9 - 1.4 Nm

$1.49

$

Usually ships in 3-7 days

0

6

Homelite A97990C

PULLEY & ROPE
(Superseded to UP07034)

$

$

Not available

7

Homelite A00518

ROPE
(Superseded to 93418)

$

$

Currently unavailable

8

Homelite 02505

SPRING - GRIP

$

$

Not available

?9

Homelite 82409

SCREW - (10-14 X 5/8")

Note: Torque Spec. 30 - 40 In/Lbs, 3.4 - 4.5 Nm

$

$

Not available

10

Homelite 58763

WASHER - RETAINING

$

$

Not available

11

Homelite 97992A

BUSHING - STARTER POST
(Superseded to UP07218)

$

$

Not available

12

Homelite A04890A

MODULE ASSY

$

$

Currently unavailable

13

Homelite 04617

SPACER

$4.99

$

Usually ships in 3-7 days

0

14

Homelite 88052

SCREW - HEX HD (10-24 X 7/8")

Note: Torque Spec. 50 - 60 In/Lbs, 5.6 - 6.8 Nm

$2.99

$

Usually ships in 3-7 days

0

15

Homelite A985831D

LEAD - GROUND W/GROMMET
(Superseded to UP07036)

$

$

Not available

16

Homelite 95479A

WASHER - FLAT

$

$

Not available

17

Homelite 81255

NUT - LOCK HEX (3/8-24)

Note: Torque Spec. 250 - 300 In/Lbs, 28.2 - 33.9 Nm

$

$

Not available

18

Homelite 80582

SCREW MACH (8-32 X 5/8")

Note: Torque Spec. 30 - 40 In/Lbs, 3.4 - 4.5 Nm

$

$

Not available

19

Homelite 02133

SCROLL - AIR GUIDE

$

$

Not available

20

Homelite A02085B

ROTOR
(Superseded to UP05951)

$

$

Not available

?21

Homelite A03610

STARTER PAWL KIT

$

$

Not available

22

Homelite 75078

KEY - WOODRUFF
(Superseded to UP07068)

$

$

Not available

23

Homelite A33055

TERMINAL - SPARK PLUG

$

$

Not available

24

Homelite 98217S

SPARK PLUG (RCJ6Y)
(Superseded to 870174001)

Note: Torque Spec. 120 - 180 In/Lbs, 13.6 - 20.3 Nm

$4.99

$

In Stock, Qty 20+

0

25

Homelite 84003

WASHER - FLAT (#10)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 82562

SCREW - PAN HD (10-24 X 5/8")
(Superseded to UP06535)

Note: Torque Spec. 40 - 50 In/Lbs, 4.5 - 5.6 Nm; 262 Red Loctite Required

$

$

Not available

27

Homelite 97682B

GASKET - MUFFLER
(Superseded to UP07030)

$

$

Not available

28

Homelite A04429

MUFFLER

$

$

Not available

29

Homelite 04431A

PLATE - RETAINING
(Superseded to UP07768)

$

$

Not available

30

Homelite 82592

SCREW - HEX CAP (1/4-20 X 3 1/4")

Note: Torque Spec. 100 - 140 In/Lbs, 11.3 - 15.8 Nm

$

$

Not available

31

Homelite 80560

SCREW - MACH (8-32 X 1/2")

Note: Torque Spec. 30 - 40 In/Lbs, 3.4 - 4.5 Nm

$

$

Not available

32

Homelite A98747

CAP - MUFFLER

$

$

Not available

33

Homelite 98827

SCREEN - SPARK ARRESTOR
(Superseded to UP07104)

$

$

Not available

34

Homelite 825551

SCREW - TRUSS HD (10-24 X 3/4")
(Superseded to UP03899)

Note: Torque Spec. 60 - 70 In/Lbs, 6.8 - 7.9 Nm

$2.99

$

Usually ships in 3-7 days

0

Homelite A03611A

FOAM KIT
(Superseded to UP07128)

$

$

Not available
