8800 (UT-10731-C) - Homelite Chainsaw Engine Housing Parts Diagram

Chainsaw

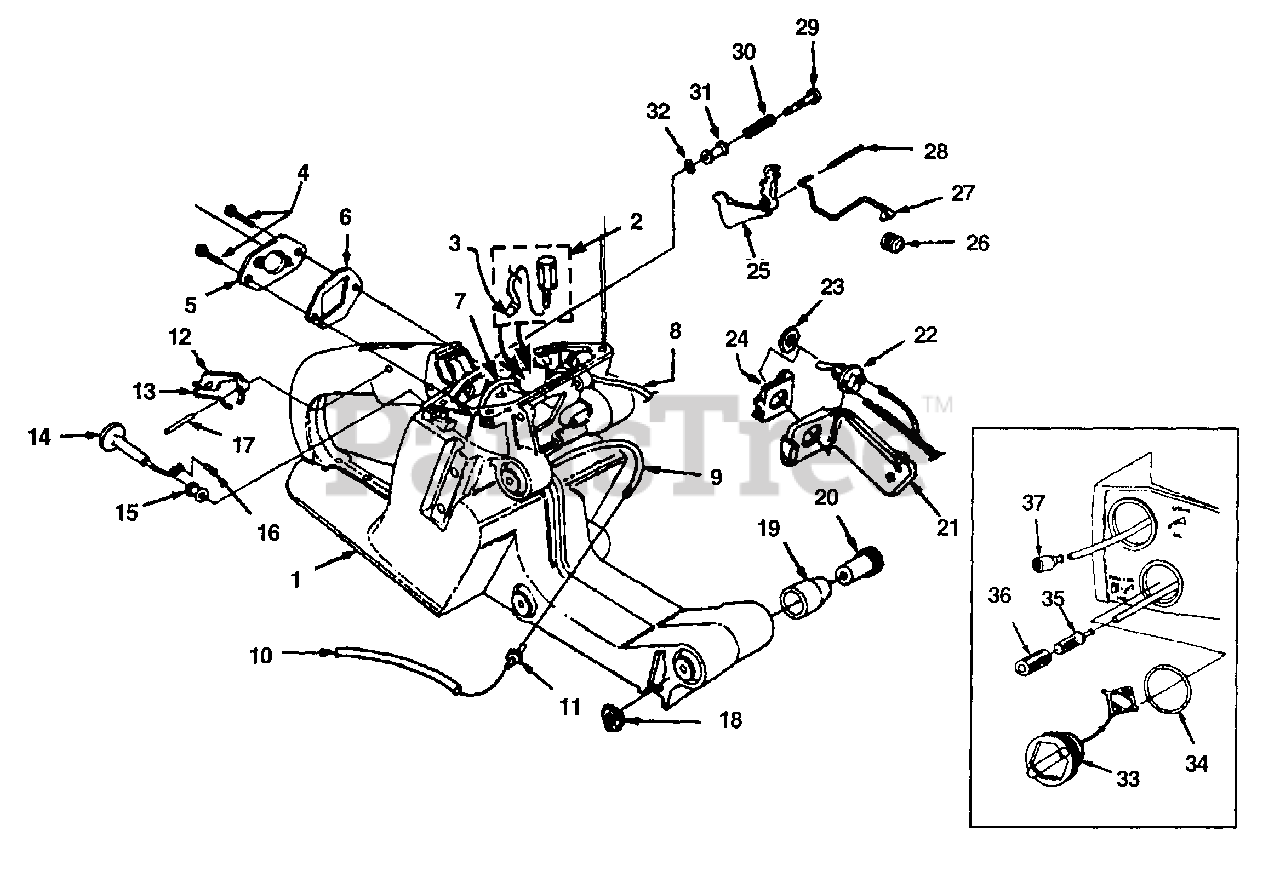

Engine Housing Parts Diagram

  • Title

1

Homelite A04892A

HOUSING - Engine

$

$

Currently unavailable

2

Homelite A07012

TANK VENT KIT

$

$

Currently unavailable

3

Homelite 96841

VALVE - Duck Bill
(Superseded to UP07204)

$

$

Not available

4

Homelite 96620

SCREW - Torx Truss (10-24 X 1/2")

Note: Torque Spec. 50 - 60 In/Lbs, 262 Red Loctite Required

$5.99

$

Usually ships in 3-7 days

0

5

Homelite 972902A

ADAPTOR - Carburetor
(Superseded to UP07159)

$33.99

$

Usually ships in 3-7 days

0

6

Homelite PS97291

GASKET - Carburetor

$

$

Not available

7

Homelite 9311238

TUBING - Rubber (Fuel Line, 9 1/2")

$

$

Not available

8

Homelite 9315720

TUBING - Rubber (Oil Line, 5")

$

$

Currently unavailable

9

Homelite 9311226

TUBING - Rubber (Pulse Line, 6 1/2")

$

$

Currently unavailable

10

Homelite 7045423

TUBING - Rubber (5 3/4")

$

$

Currently unavailable

11

Homelite 02067

FITTING - Inline Fuel

$

$

Not available

12

Homelite 93385A

TRIGGER - Lock

$

$

Not available

13

Homelite PS97265

SPRING - Flat

$

$

Not available

14

Homelite 972921

ROD - Choke
(Superseded to UP06645)

$

$

Not available

15

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

16

Homelite 86324

PIN - Cotter

$

$

Not available

17

Homelite 68548

PIN - Trigger

$

$

Not available

18

Homelite 81206

Nut - Locking Hex (10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

19

Homelite 973052

ISOLATOR - Vibration

$

$

Not available

20

Homelite PS97262

SLEEVE - Flanged
(Superseded to UP05586)

$

$

Not available

21

Homelite PS97306A

COVER
(Superseded to UP07032)

$

$

Not available

22

Homelite A57650A

SWITCH - Toggle

$27.99

$

Usually ships in 3-7 days

0

23

Homelite 72084A1

NUT - Hex
(Superseded to UP04146)

$5.99

$

Usually ships in 3-7 days

0

24

Homelite 12893

PLATE - Indicating

$

$

Not available

25

Homelite 93842

TRIGGER - Throttle

$

$

Not available

26

Homelite 69889

BOOT - Throttle Rod

$

$

Not available

27

Homelite 97294A

ROD - Throttle
(Superseded to UP06465)

$

$

Not available

28

Homelite 68548

PIN - Trigger

$

$

Not available

29

Homelite 95671

PIN - Throttle Lock
(Superseded to UP05997)

$

$

Not available

30

Homelite 95020A

SPRING - Compression

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 95989

BUSHING - Flanged
(Superseded to UP06854)

$

$

Not available

32

Homelite 58409

RING - Retaining

$4.49

$

Usually ships in 3-7 days

0

33

Homelite A03131

CAP - Fuel & Oil
(Superseded to UP05970)

$

$

Not available

34

Homelite 98805A

GASKET - Fuel & Oil Cap

$

$

Not available

35

Homelite A97700

FILTER - Fuel
(Superseded to UP06516)

$

$

Not available

36

Homelite 592531A

ELEMENT - Felt Filter

$13.99

$

Usually ships in 3-7 days

0

37

Homelite A68593

OIL FILTER

$

$

Not available
