880368x191NA - Murray 16" Steelfort Grassmaster Walk-Behind Mower (2006) Deck & Engine Group (880368dk) Parts Diagram

16" Steelfort Grassmaster Walk-Behind Mower

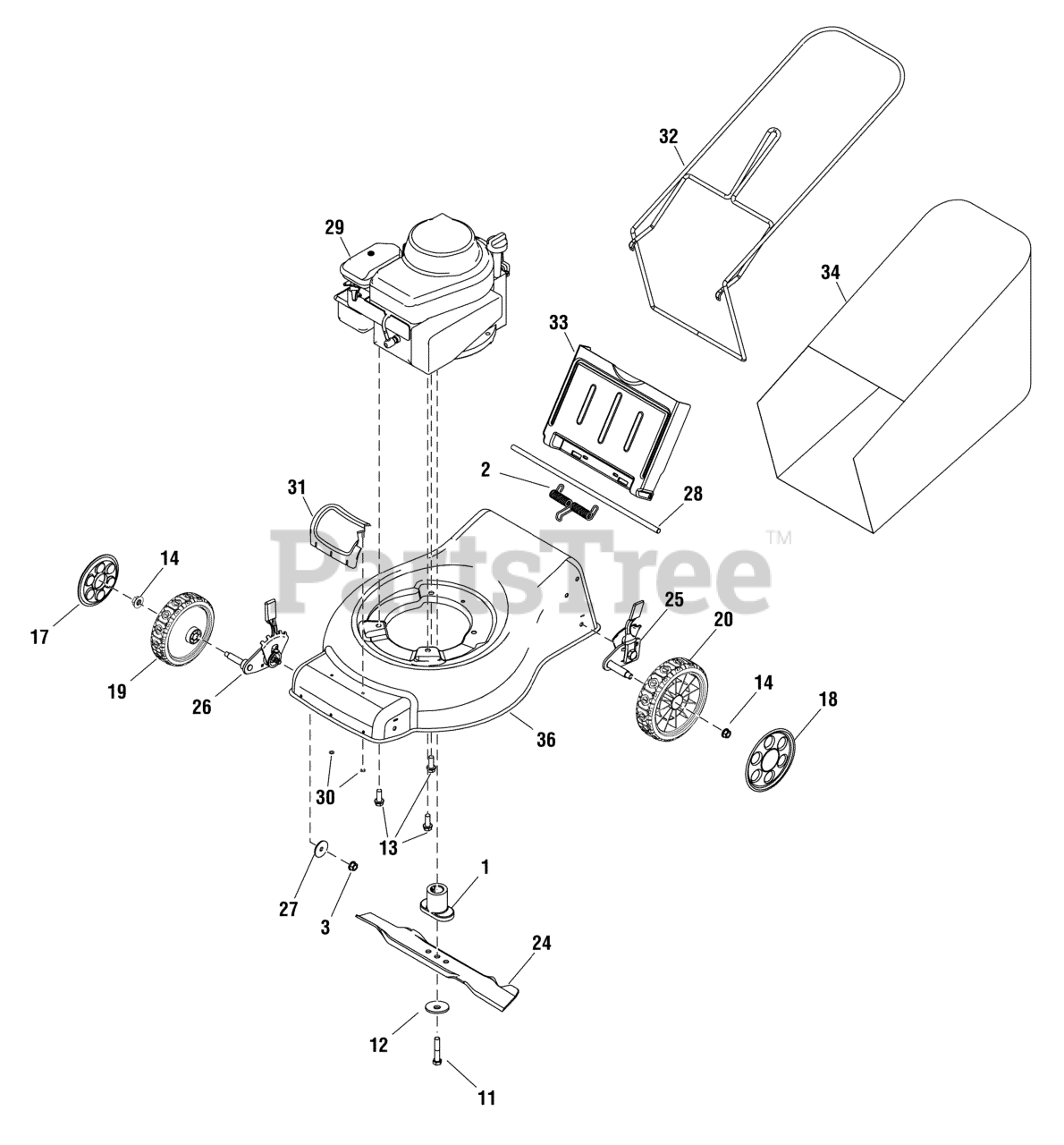

Deck & Engine Group (880368dk) Parts Diagram

  • Title

1

Murray 880009YP

BLADE, Adapter

$18.99

$

Usually ships in 2-12 days

0

2

Murray 700001

SPRING, Torsion
(Superseded to 700001YP)

$5.49

$

Usually ships in 2-12 days

0

3

Murray 700002

NUT, Lock, Nylon, M8 - 1.25
(Superseded to 880020YP)

$3.99

$

Usually ships in 2-12 days

0

11

Murray 700011

BOLT, 3/8-24, G8
(Superseded to 880034YP)

$4.49

$

Usually ships in 2-12 days

0

12

Murray 1101989MA

WASHER, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

Murray 0025X6MA

SCREW, Self Tap, 3/8-16

$5.49

$

Usually ships in 2-12 days

0

14

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Murray 700020

HUBCAP, 150mm

$

$

Currently unavailable

18

Murray 700015

HUBCAP, 175mm

$

$

Not available

19

Murray 700017

WHEEL ASSEMBLY, No Bearing, 150mm

$

$

Currently unavailable

20

Murray 700014

WHEEL ASSEMBLY, No Bearing, 175mm

$

$

Currently unavailable

24

Murray 700024

BAR BLADE, 16"
(Superseded to 881076BZYP)

$24.99

$

Usually ships in 2-12 days

0

25

Murray 880106YP

HEIGHT ADJUST ASSEMBLY, LH

$23.99

$

Usually ships in 2-12 days

0

26

Murray 880115YP

HEIGHT ADJUST ASSEMBLY, RH

$23.99

$

Usually ships in 2-12 days

0

27

Murray 700034

WASHER, Flat

$

$

Currently unavailable

28

Murray 700035

ROD, Rear Door

$

$

Currently unavailable

29

* ENGINE, Briggs & Stratton

$

$

Not available

30

Murray 700036

NUT, Retainer, M4

$

$

Currently unavailable

31

Murray 700038

COVER, Front

$

$

Currently unavailable

32

Murray 700040

FRAME, Bag
(Superseded to 700040YP)

$57.99

$

Usually ships in 2-12 days

0

33

Murray 700046

DOOR, Rear

$

$

Currently unavailable

34

Murray 700041

BAG
(Superseded to 700041YP)

$95.99

$

Usually ships in 2-12 days

0

36

Murray 700051

HOUSING ASSEMBLY, 16"

$153.99

$

Usually ships in 2-12 days

0
