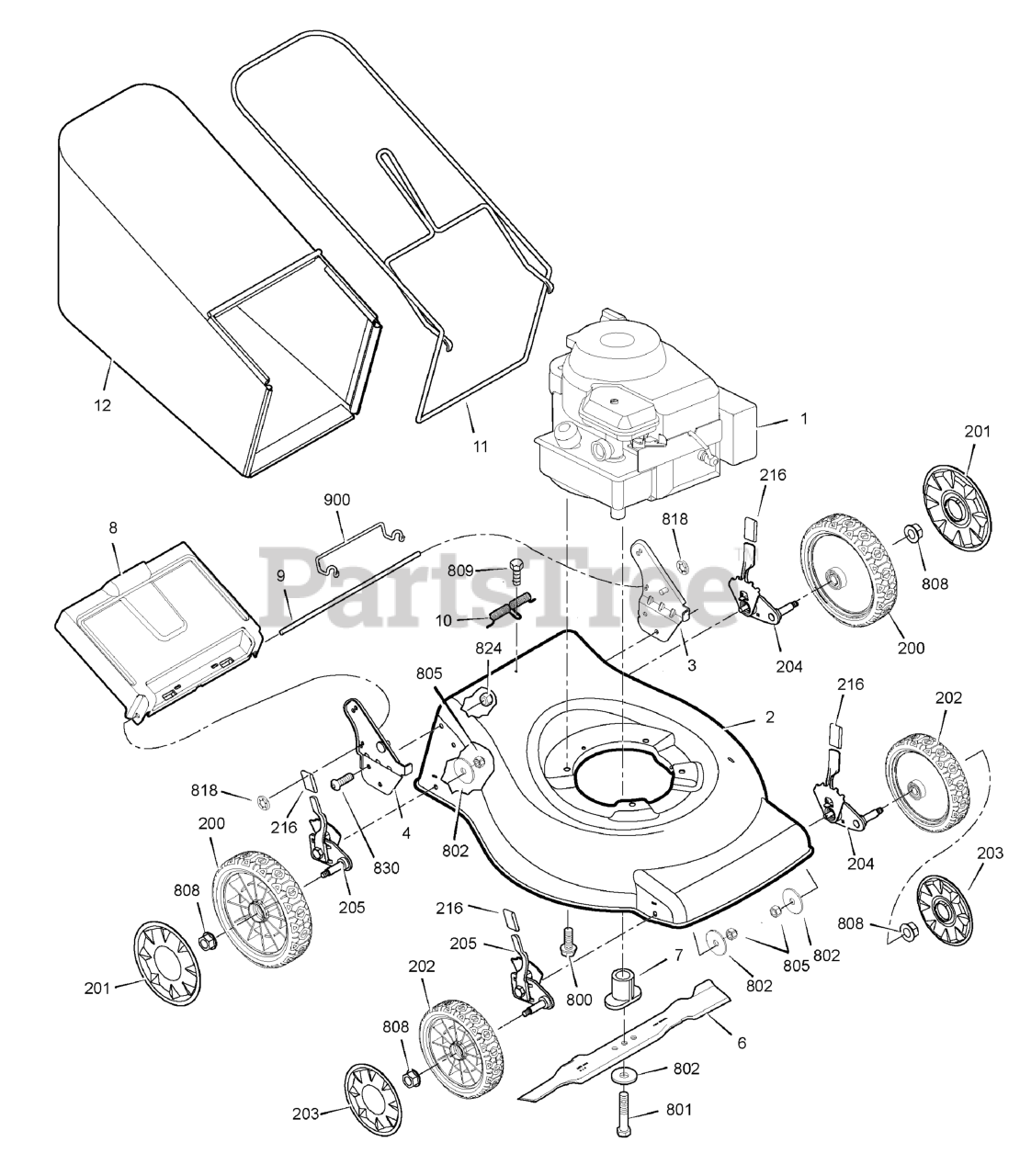

880420X51N - Murray 19" Walk-Behind Mower, Canada (2009) Deck & Engine Group Parts Diagram

19" Walk-Behind Mower, Canada

Deck & Engine Group Parts Diagram

  • Title

1

Murray 10T602-0113-B1

* ENGINE

Note: (Engine Model: 10T602-0113-B1)

$

$

Currently unavailable

2

Murray 700189

HOUSING ASSEMBLY

$

$

Currently unavailable

3

Murray 700141

BRACKET ASSEMBLY, Left Handle

$

$

Currently unavailable

4

Murray 700142

BRACKET ASSEMBLY, Right Handle

$

$

Currently unavailable

6

Murray 700162

BLADE, 16 in
(Superseded to 880638BZYP)

$26.99

$

Usually ships in 2-12 days

0

7

Murray 700000

BLADE ADAPTER ASSEMBLY
(Superseded to 880009YP)

$18.99

$

Usually ships in 2-12 days

0

8

Murray 700099

DOOR, Rear
(Superseded to 700099YP)

$22.99

$

Usually ships in 2-12 days

0

9

Murray 700095

ROD, Rear Door
(Superseded to 880214YP)

$10.99

$

Usually ships in 2-12 days

0

10

Murray 700001

SPRING, Torsion Rear Door
(Superseded to 700001YP)

$5.49

$

Usually ships in 2-12 days

0

11

Murray 700208

FRAME ASSEMBLY

$

$

Currently unavailable

12

Murray 700100

BAG ASSEMBLY

$

$

Not available

200

Murray 700199

WHEEL, Rear
(Superseded to 880194YP)

$

$

Not available

201

Murray 700195

HUBCAP, Rear
(Superseded to 880699YP)

$13.99

$

Usually ships in 2-12 days

0

202

Murray 700153

WHEEL, Front
(Superseded to 880703YP)

$36.99

$

Usually ships in 2-12 days

0

203

Murray 700155

HUBCAP, Front
(Superseded to 880698YP)

$9.49

$

Usually ships in 2-12 days

0

204

Murray 700092

HEIGHT ADJUSTER ASSEMBLY, Left

$

$

Currently unavailable

205

Murray 700093

HEIGHT ADJUSTER ASSEMBLY, Right

$

$

Currently unavailable

216

Murray 700151

GRIP, Height Adjustment
(Superseded to 880542YP)

$4.49

$

Usually ships in 2-12 days

0

800

Murray 0025X6MA

SCREW, Hex Head, 3/8-16 x 1

$5.49

$

Usually ships in 2-12 days

0

801

Murray 700011

BOLT, Blade, 3/8-24 x 2
(Superseded to 880034YP)

$4.49

$

Usually ships in 2-12 days

0

802

Murray 1101989MA

WASHER, Belleville

$5.49

$

Usually ships in 2-12 days

0

805

Murray 700002

NUT, Nylock, M8 x 1-1/4
(Superseded to 880020YP)

$3.99

$

Usually ships in 2-12 days

0

808

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

809

Murray 26X245MA

SCREW, Self Tap, #10-16 x 1/2

$4.49

$

In Stock, Qty 6

0

818

Murray 700156

NUT, Speed
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

822

Murray 15X116MA

NUT, Hex, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

824

Murray 015X88MA

NUT, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

830

Murray 48901MA

SCREW , 5/16-18 x 3/4

$3.99

$

Usually ships in 2-12 days

0

900

Murray 880910YP

SPRING CLIP, Rear Door

$

$

Currently unavailable

1000

Murray 700269

DECAL KIT

$

$

Currently unavailable

1001

Murray 880900YP

MANUAL KIT

$

$

Currently unavailable
