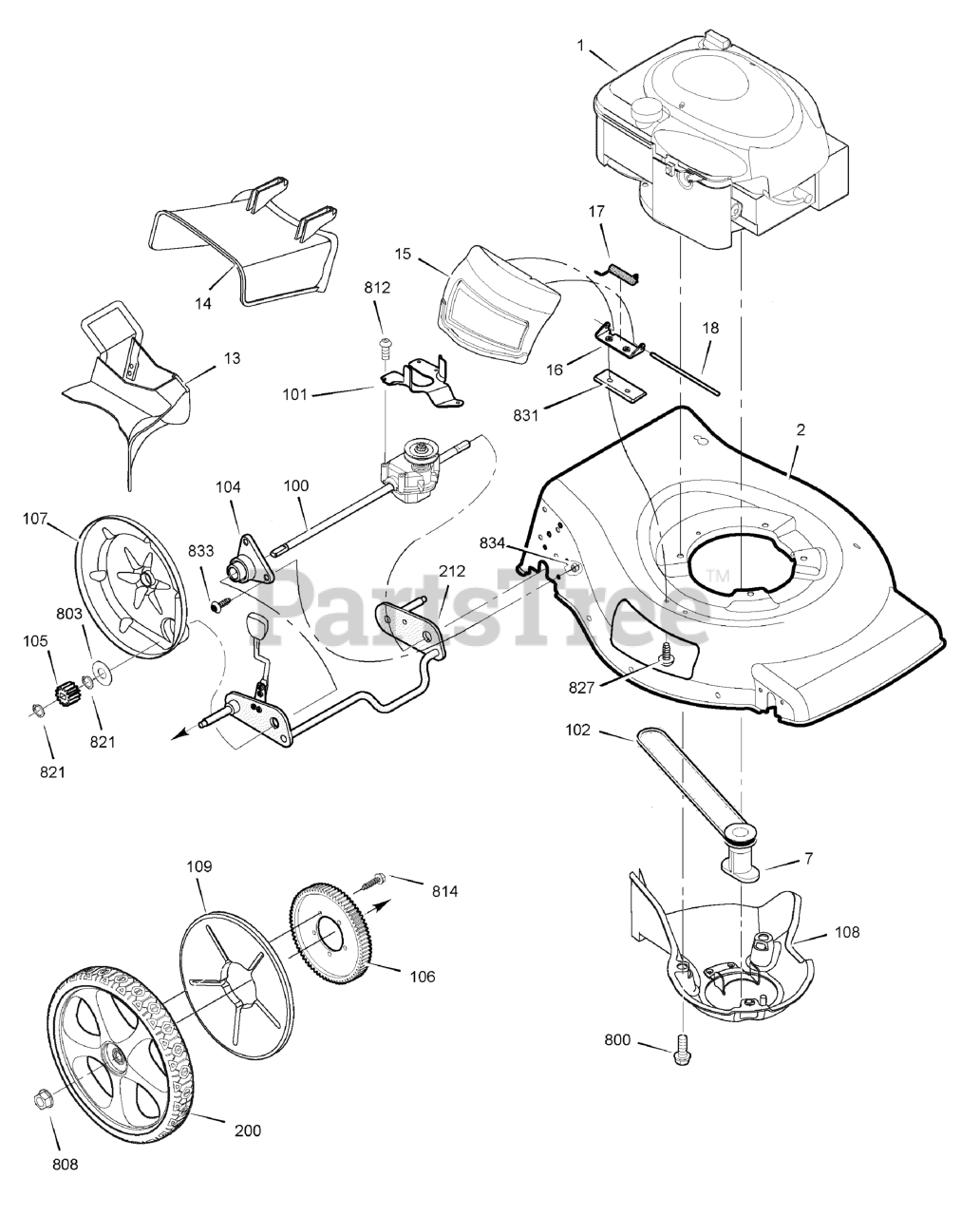

880806X51N - Murray 19" Walk-Behind Mower, Canada (2009) Drive Group Parts Diagram

19" Walk-Behind Mower, Canada

Drive Group Parts Diagram

  • Title

1

Murray 126T02-0253-B1

* ENGINE

Note: (Engine Model: 126T02-0253-B1)

$

$

Currently unavailable

2

Murray 880864YP

MOWER HOUSING

$

$

Currently unavailable

7

Murray 700214

BLADE ADAPTER ASSEMBLY
(Superseded to 880567YP)

$31.99

$

In Stock, only 1 left!

0

13

Murray 880913YP

MULCH PLUG
(Superseded to 700129YP)

$49.99

$

Usually ships in 2-12 days

0

14

Murray 880803YP

CHUTE DEFLECTOR

$31.99

$

Usually ships in 2-12 days

0

15

Murray 880802YP

MULCH COVER

$21.99

$

Usually ships in 2-12 days

0

16

Murray 880584YP

BRACKET, Chute Deflector

$16.99

$

Usually ships in 2-12 days

0

17

Murray 880582YP

SPRING, Chute Deflector

$6.99

$

Usually ships in 2-12 days

0

18

Murray 880581YP

ROD, Chute Deflector

$13.99

$

In Stock, only 2 left!

0

100

Murray 700242

TRANSMISSION
(Superseded to 880604YP)

$148.99

$

Usually ships in 2-12 days

0

101

Murray 700120

BELT GUIDE, Transmission
(Superseded to 880282YP)

$12.99

$

Usually ships in 2-12 days

0

102

Murray 700123

V-BELT
(Superseded to 880268YP)

$26.99

$

Usually ships in 2-12 days

0

104

Murray 880787YP

SLEEVE ASSEMBLY, Rear Axle

$17.99

$

Usually ships in 2-12 days

0

105

Murray 700239

GEAR, Pinion
(Superseded to 880527YP)

$8.49

$

Usually ships in 2-12 days

0

106

Murray 700238

GEAR, Drive
(Superseded to 880526YP)

$15.99

$

Usually ships in 2-12 days

0

107

Murray 700240

DUST COVER
(Superseded to 880528YP)

$18.99

$

Usually ships in 2-12 days

0

108

Murray 700234

BELT COVER ASSEMBLY
(Superseded to 700234YP)

$61.99

$

Usually ships in 2-12 days

0

200

Murray 700193

WHEEL, Rear
(Superseded to 880695YP)

$47.99

$

Usually ships in 2-12 days

0

109

Murray 700241

COVER, Wheel
(Superseded to 880539YP)

$19.99

$

Usually ships in 2-12 days

0

212

Murray 880854YP

CROSSBAR ASSEMBLY, Rear

$75.99

$

Usually ships in 2-12 days

0

800

Murray 0025X6MA

SCREW, Hex Head, 3/8-16 x 1

$5.49

$

Usually ships in 2-12 days

0

808

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

803

Murray 700131

WASHER, Thrust
(Superseded to 880324YP)

$3.49

$

Usually ships in 2-12 days

0

812

Murray 880760YP

SCREW, #10 x 1

$4.49

$

Usually ships in 2-12 days

0

814

Murray 26X296MA

SCREW, 1/4-15 x 3/4

$4.49

$

In Stock, only 1 left!

0

821

Murray 700237

RING, External Retaining
(Superseded to 880269YP)

$3.99

$

Usually ships in 2-12 days

0

827

Murray 700250

SCREW, 1/4-20 x 7/8
(Superseded to 880664YP)

$3.99

$

Usually ships in 2-12 days

0

831

Murray 880583YP

SPACER

$3.99

$

Usually ships in 2-12 days

0

834

Murray 880859YP

NUT, Flange Lock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
