881731-00 (CE 19550 FC) - Canadiana 19" Walk-Behind Mower, Canada (2012) Height of Cut Group (881629) Parts Diagram

19" Walk-Behind Mower, Canada

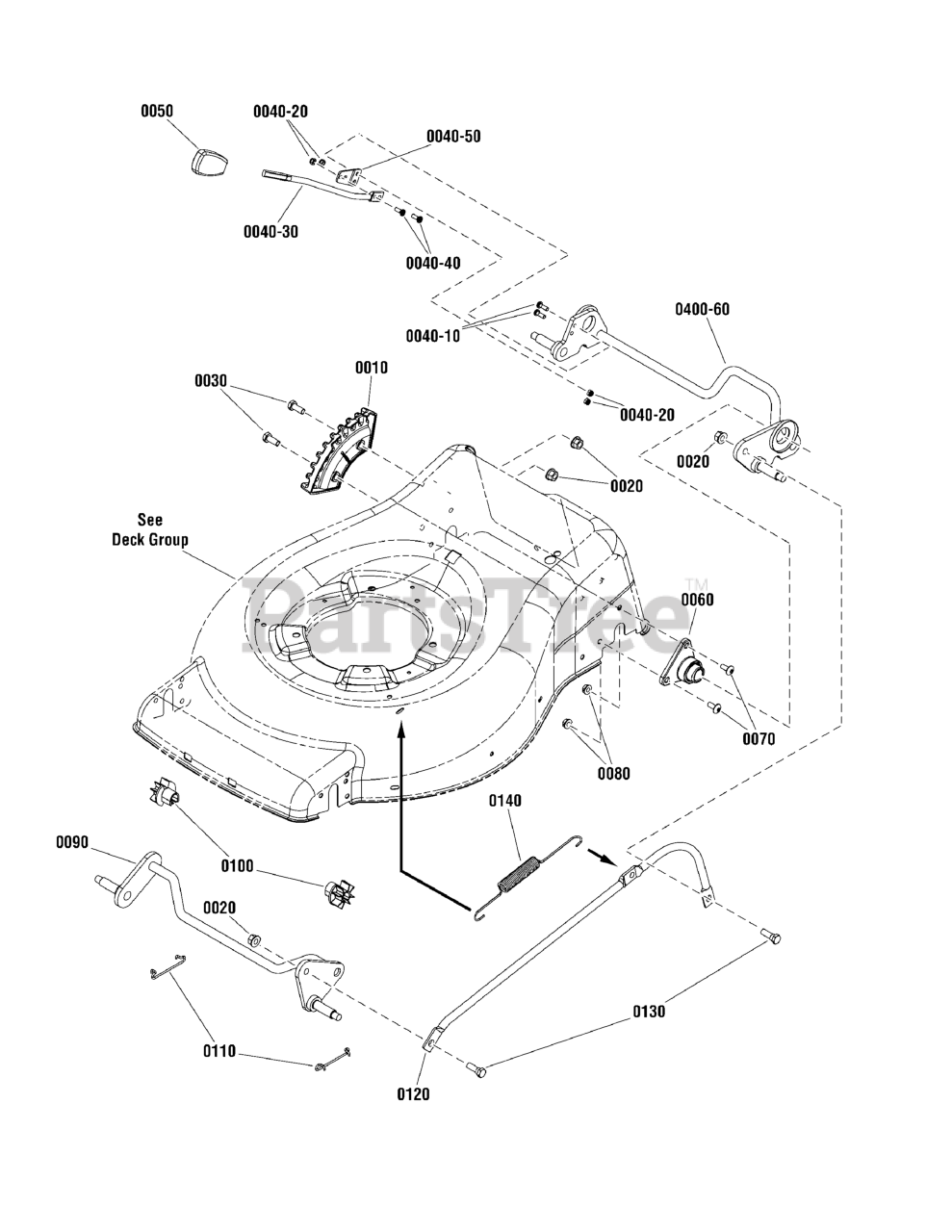

Height of Cut Group (881629) Parts Diagram

  • Title

0010

Murray 880960YP

INDEX PLATE, Standard Wheel

$17.99

$

Usually ships in 2-12 days

0

0020

Murray 1960686SM

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

0030

Murray 1921332SM

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0040-10

Murray 880339YP

SCREW, M5X0.8 x 14.5LG Torx Head

$3.99

$

In Stock, only 4 left!

0

0040-20

Murray 880428YP

NUT, M5 X 0.8 Nyloc

$3.99

$

Usually ships in 2-12 days

0

0040-30

Murray 880540YP

LEVER, Heght Adjuster

$

$

Not available

0040-40

Murray 880577YP

SCREW, M5X0.8 x 12.5LG Torx Head

$3.99

$

In Stock, only 4 left!

0

0040-50

Murray 880642YP

SPRING, Height Adjustment, SP

$6.49

$

In Stock, only 2 left!

0

0040-60

Murray 880829YP

WELDMENT, Crossbar, 19SP
(Superseded to 881233YP)

$235.99

$

Usually ships in 2-12 days

0

0050

Murray 880325YP

KNOB, Height Adjust, Style II

$6.49

$

Usually ships in 2-12 days

0

0060

Murray 880786YP

RETAINER, Ball Bearing

$8.49

$

Usually ships in 2-12 days

0

0070

Murray 880845YP

SCREW, 1/4-20 x 5/8", Torx Truss Head

$3.49

$

Usually ships in 2-12 days

0

0080

Murray 880859YP

NUT, 1/4-20, Flange Lock, BZ

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 880053YP

ASSEMBLY, Front Crossbar (cold-staked)

$51.99

$

Usually ships in 2-12 days

0

0100

Murray 880050YP

BUSHING, Front

$5.49

$

In Stock, only 1 left!

0

0110

Murray 881163YP

SPRING CLIP, Crossbar

$9.49

$

In Stock, Qty 5

0

0120

Murray 880791AYP

LIFTER LINK, 19" Black

$24.99

$

Usually ships in 2-12 days

0

0130

Murray 880651YP

SHOULDER BOLT, 5/16-18 Hex Washer Head, GR 2

$3.99

$

Usually ships in 2-12 days

0

0140

Murray 880052YP

SPRING, Extension

$7.49

$

Usually ships in 2-12 days

0
