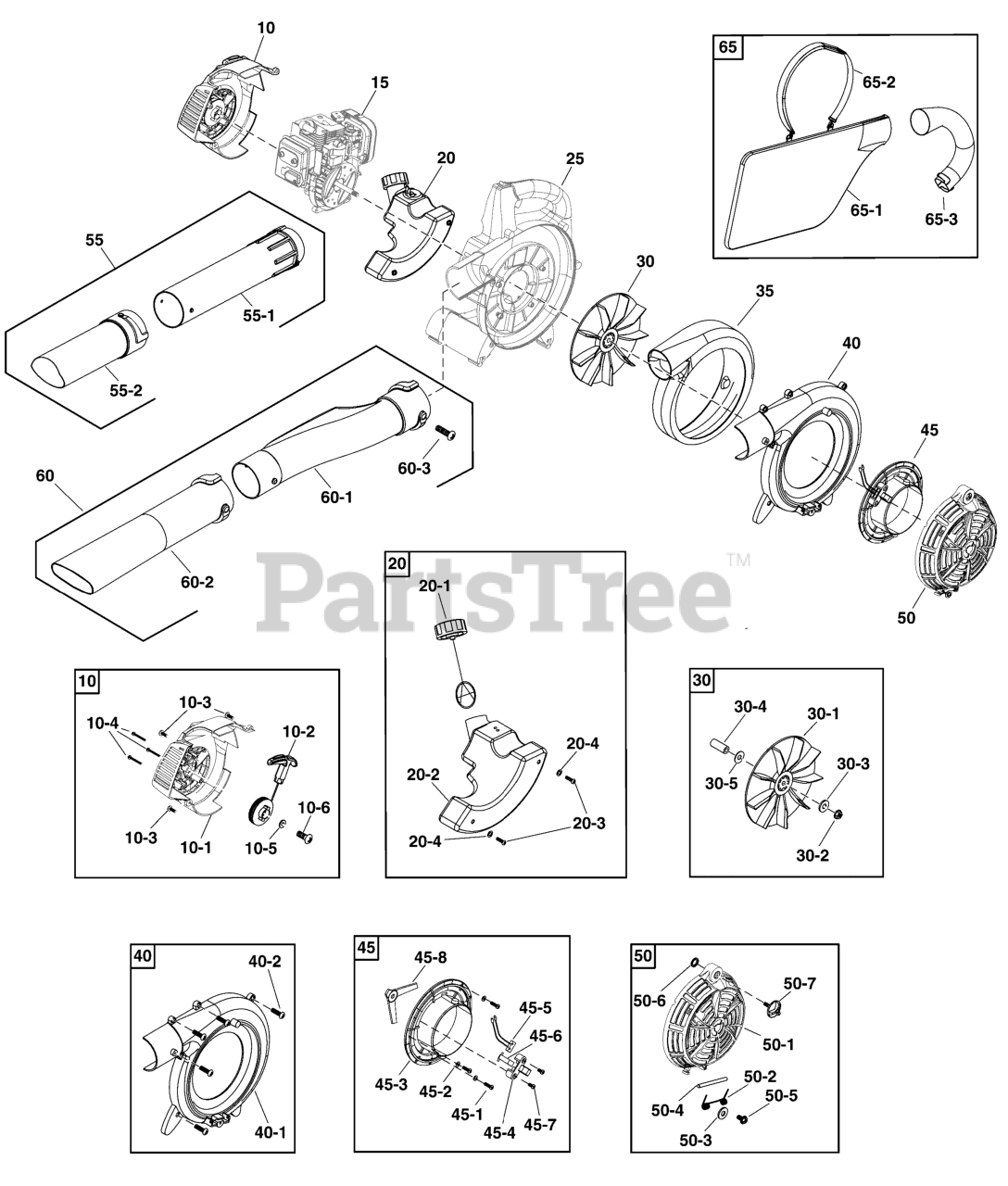

883243 - Murray 26cc Leaf Blower Vac Blower Group (883243) Parts Diagram

26cc Leaf Blower Vac

Blower Group (883243) Parts Diagram

  • Title

10

Murray 771939

FAN COVER ASSEMBLY

Note: (Includes Ref. Nos. 10-1 through 10-6)

$35.99

$

Usually ships in 2-12 days

0

10-1

COWL, Engine

Note: (Not a serviceable part. Order Ref. 10)

$

$

Not available

10-2

STARTER PULLEY ASSEMBLY

Note: (Not a serviceable part. Order Ref. 10)

$

$

Not available

10-3

SCREW, Self Tapping, 5 x 16

Note: (Not a serviceable part. Order Ref. 10)

$

$

Not available

10-4

SCREW, M4 x 35

Note: (Not a serviceable part. Order Ref. 10)

$

$

Not available

10-5

WASHER

Note: (Not a serviceable part. Order Ref. 10)

$

$

Not available

10-6

SCREW, M5 x 10

Note: (Not a serviceable part. Order Ref. 10)

$

$

Not available

15

ENGINE 26cc

Note: (Not a serviceable part. Order 883243)

$

$

Not available

20

Murray 771943

FUEL TANK ASSEMBLY

Note: (Includes Ref. Nos. 20-1 through 20-4

$32.99

$

In Stock, only 1 left!

0

20-1

FUEL CAP

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-2

TANK, Fuel

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-3

SCREW, M5 x 10

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-4

WASHER, 5.2 ID x 9.8 OD

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

25

INVOLUTE CHASSIS ASSEMBLY

Note: (Not a serviceable part. Order 883243)

$

$

Not available

30

Murray 771941

IMPELLER ASSEMBLY

Note: (Includes Ref. Nos. 30-1 through 30-5)

$24.99

$

Usually ships in 2-12 days

0

30-1

IMPELLER

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

30-2

NUT, Lock, M8

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

30-3

WASHER, M8

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

30-4

SPACER

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

30-5

WASHER, Spring, 23 x 8.2 x 0.85

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

35

Murray 771947

INNER INVOLUTE LINER ASSEMBLY

$22.99

$

Usually ships in 2-12 days

0

40

Murray 771940

BLOWER HOUSING ASSEMBLY, Rear

Note: (Includes Ref. Nos. 40-1 & 40-2)

$42.99

$

Usually ships in 2-12 days

0

40-1

HOUSING, Blower

Note: (Not a serviceable part. Order Ref. 40)

$

$

Not available

40-2

SCREW, Self Tapping, 5 x 16

Note: (Not a serviceable part. Order Ref. 40)

$

$

Not available

45

Murray 771944

SAFETY WIRING ASSEMBLY

Note: (Includes Ref. Nos. 45-1 through 45-9)

$28.99

$

Usually ships in 2-12 days

0

45-1

SCREW, M5 x 16

Note: (Not a serviceable part. Order Ref. 45)

$

$

Not available

45-2

WASHER, 5

Note: (Not a serviceable part. Order Ref. 45)

$

$

Not available

45-3

COVER, Connect

Note: (Not a serviceable part. Order Ref. 45)

$

$

Not available

45-4

COVER, Safety

Note: (Not a serviceable part. Order Ref. 45)

$

$

Not available

45-5

SAFETY SWITCH

Note: (Not a serviceable part. Order Ref. 45)

$

$

Not available

45-6

CONNECTOR, Button

Note: (Not a serviceable part. Order Ref. 45)

$

$

Not available

45-7

SCREW M5 x 10

Note: (Not a serviceable part. Order Ref. 45)

$

$

Not available

45-8

BLADE, Mulching

Note: (Not a serviceable part. Order Ref. 45)

$

$

Not available

50

Murray 771939

FAN COVER ASSEMBLY

Note: (Includes Ref. Nos. 50-1 through 50-7)

$35.99

$

Usually ships in 2-12 days

0

50-1

COVER, Fan

Note: (Not a serviceable part. Oder Ref. 50)

$

$

Not available

50-2

SPRING, Fan Cover

Note: (Not a serviceable part. Oder Ref. 50)

$

$

Not available

50-3

WASHER, 6.3 x 15 x 1.2

Note: (Not a serviceable part. Oder Ref. 50)

$

$

Not available

50-4

PIVOT SHAFT, Fan Cover

Note: (Not a serviceable part. Oder Ref. 50)

$

$

Not available

50-5

SCREW, M5 x 10

Note: (Not a serviceable part. Oder Ref. 50)

$

$

Not available

50-6

O-RING

Note: (Not a serviceable part. Oder Ref. 50)

$

$

Not available

50-7

Murray CM-HT00097G

KNOB, Air Filter

Note: (Not a serviceable part. Oder Ref. 50)

$

$

Currently unavailable

55

Murray 771946

MULCHING INTAKE ASSEMBLY

Note: (Includes Ref. Nos. 55-1 & 55-2)

$116.99

$

Usually ships in 2-12 days

0

55-1

INTAKE, Upper

Note: (Not a serviceable part. Order Ref. 55)

$

$

Not available

55-2

INTAKE, Lower

Note: (Not a serviceable part. Order Ref. 55)

$

$

Not available

60

Murray 771942

TUBE ASSEMBLY, Blower Outlet

Note: (Includes Ref. Nos. 60-1 through 60-3

$52.99

$

In Stock, only 1 left!

0

60-1

TUBE, Upper

Note: (Not a serviceable part. Order Ref. 60)

$

$

Not available

60-2

TUBE, Lower

Note: (Not a serviceable part. Order Ref. 60)

$

$

Not available

60-3

SCREW, M5 x 10

Note: (Not a serviceable part. Order Ref. 60)

$

$

Not available

65

Murray 771945

MULCH BAG ASSEMBLY, Single Pack

Note: (Includes Ref. Nos. 65-1 through 65-3)

$

$

Not available

65-1

MULCH BAG

Note: (Not a serviceable part. Order Ref. 65)

$

$

Not available

65-2

HARNESS

Note: (Not a serviceable part. Order Ref. 65)

$

$

Not available

65-3

TUBE

Note: (Not a serviceable part. Order Ref. 65)

$

$

Not available
