885001 - Gravely 30" Deck for 2-Wheel Tractor, Short Drive (SN: 000101 & Above) Long Mower Drive Kit (PN 78500700) Parts Diagram

30" Deck for 2-Wheel Tractor, Short Drive

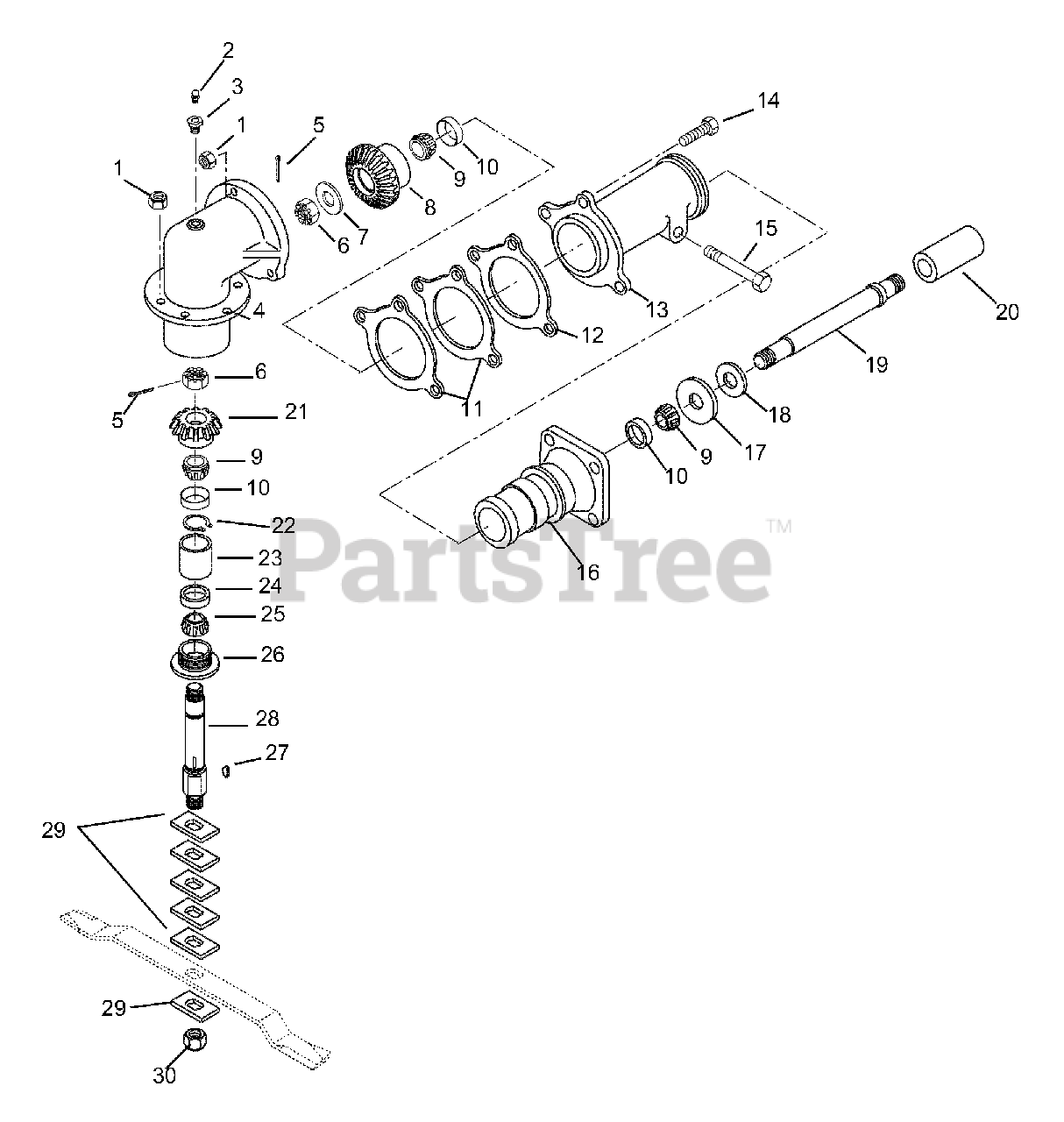

Long Mower Drive Kit (PN 78500700) Parts Diagram

  • Title

1

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 07012500

FTG,LUBE 1/8

$4.99

$

In Stock, Qty 12

0

3

Gravely 144044

BUSH .50 REDUCING PIPE
(Superseded to 07012200)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 032116

HSG,GEAR
(Superseded to 08534700)

$

$

Not available

5

Gravely 06713400

PIN-CTR EXTPRSQCT .09X1.25 YZ

$0.99

$

In Stock, only 2 left!

0

6

Gravely 06523900

NUT-HEX-SL .625-18 YWZC

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 08659700

GR,BEVEL

$

$

Not available

9

Gravely 20035500

CONE,ROLLER BEARING

$

$

Not available

10

Gravely 20035400

CUP,ROLLER BEARING

$

$

Not available

11

Gravely 21511700

SHIM, .020

$

$

Not available

12

Gravely 032862

SHIM,.005
(Superseded to 08508100)

$

$

Not available

13

Gravely 08525400

CSTG,SWIVEL

$

$

Not available

14

Gravely 05936000

BLT-HEX .50-13X1.75
(Superseded to 05901939)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 022515

HSG,SHAFT
(Superseded to 08525500)

$

$

Not available

17

Gravely 035034

WSHR-FL-STL 1.006X2.247X.060
(Superseded to 06427500)

$9.99

$

Usually ships in 4-12 days

0

18

Gravely 05421600

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

19

Gravely 035036

SHFT,DRIVE
(Superseded to 08537900)

$

$

Not available

20

Gravely 035035

COUPLING
(Superseded to 08537800)

Note: (Rapid units must use coupler sleave, part number 08691300, from kit 78510700.)

$131.99

$

Usually ships in 4-12 days

0

21

Gravely 051328

GR,BEVEL PINION
(Superseded to 08659800)

$

$

Not available

22

Gravely 022497

RG-RTNG-INT 2.210X.062
(Superseded to 05714200)

$2.99

$

In Stock, only 2 left!

0

23

Gravely 022521

BUSH.,S1.75X1.94X1.94 ST
(Superseded to 08525700)

$

$

Not available

24

Gravely 022524

BRG-CUP 1.980X.420
(Superseded to 05414600)

$19.99

$

Usually ships in 4-12 days

0

25

Gravely 022523

BRG-CONE 29MMX.58
(Superseded to 05414700)

$

$

Not available

26

Gravely 022522

SL,
(Superseded to 08525800)

$

$

Not available

27

Gravely 271089

KEY-WDRF .13X.38 HRD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 022520

SHFT,ROTOR
(Superseded to 08525600)

$298.99

$

Usually ships in 4-12 days

0

29

Gravely 022526

SPACER-CUTTING HT 1/4
(Superseded to 08525900)

$

$

Not available

30

Gravely 017313

NUT-LK .875-9 HT
(Superseded to 06525600)

$9.99

$

In Stock, only 1 left!

0

Gravely 78500700

DRV,30"ROTARY MOWER

$2286.99

$

Usually ships in 4-12 days

0
