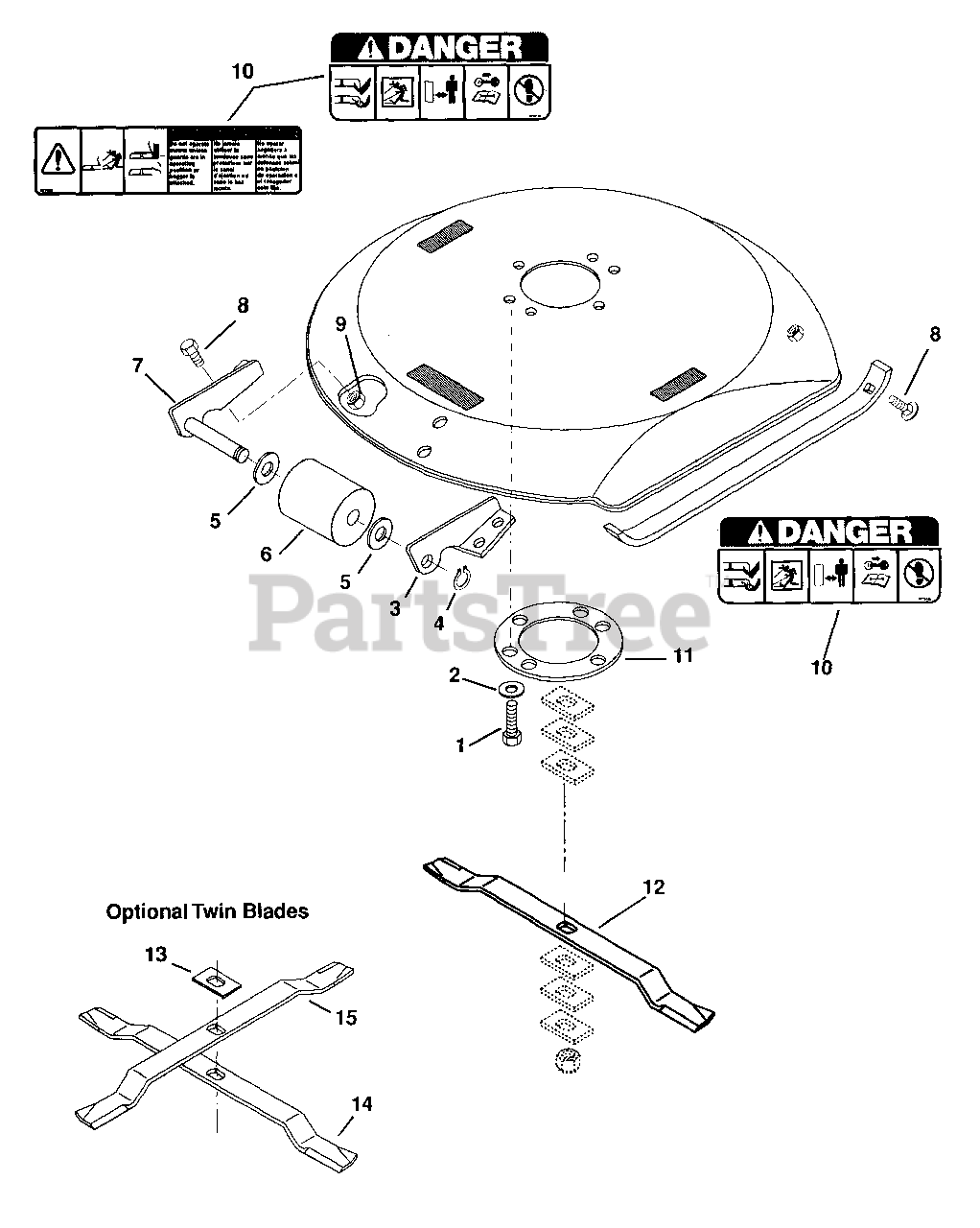

885002 - Gravely 30" Deck for 2-Wheel Tractor (SN: 000101 & Above) 30" Mower Decks Parts Diagram

30" Deck for 2-Wheel Tractor

30" Mower Decks Parts Diagram

  • Title

1

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$5.49

$

In Stock, Qty 14

0

2

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 021399

BRKT,WHEEL L-H
(Superseded to 08517100)

$

$

Not available

4

Gravely 05708300

RG-RTNG-EXT .625X.042

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06430300

WSHR-FL-STL .656X1.250X.10 YZC

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 015351

RLR,GAGE
(Superseded to 07520100)

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 021400

WLDMT,BRACKET
(Superseded to 08517200)

$

$

Not available

8

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

10

Gravely 63611400

DECAL SET - DECK
(Superseded to 53610000)

$66.99

$

Usually ships in 4-12 days

0

11

Gravely 037062

SPRT,DECK
(Superseded to 08539400)

$

$

Not available

12

Gravely 022528

BLD,3/8 ROTARY MOWER
(Superseded to 08526100)

Note: (Model 885002)

$

$

Not available

Gravely 044933

BLD,3/8 ROTARY MOWER
(Superseded to 08526100)

Note: (Model 885301)

$

$

Not available

13

Gravely 022527

SPACER-CUTTING HT THIN 1/8
(Superseded to 08526000)

Note: Optional Twin Blades

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 022529

BLADE, 30" MOWER, THIN
(Superseded to 08526200)

Note: Optional Twin Blades

$

$

Not available

15

Gravely 022530

BLADE, 30" MWR THIN C/SLOT
(Superseded to 08526300)

Note: Optional Twin Blades

$

$

Not available
