885003 - Gravely 40" Deck for 2-Wheel Tractor (SN: 000101 - 000521) MOWER DRIVE Parts Diagram

40" Deck for 2-Wheel Tractor

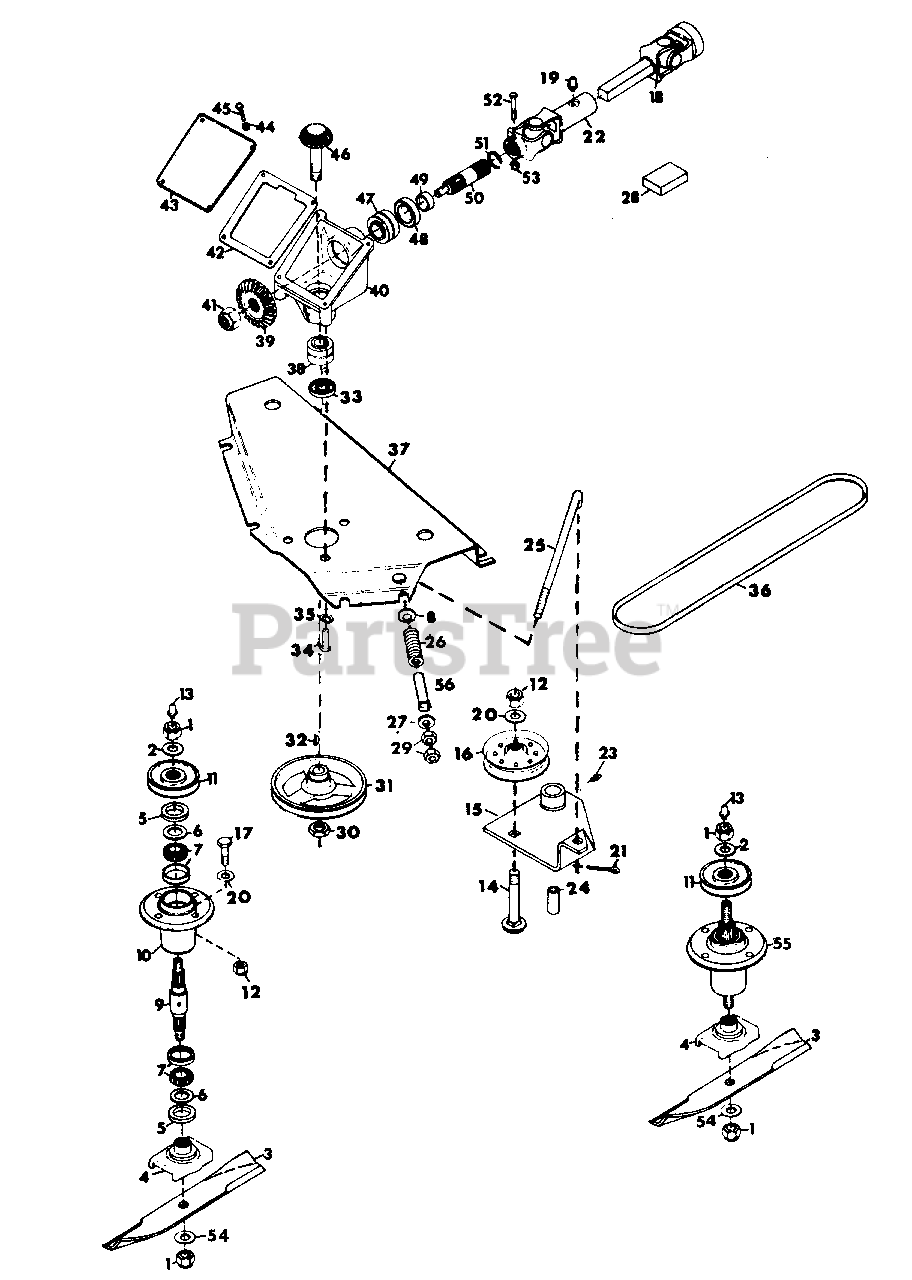

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 418692

NUT, LOCK; 5/8-11 WASHER INSERT HEX
(Superseded to 06540700)

$3.99

$

In Stock, Qty 16

0

2

Gravely 131016

WASHER, FLAT; .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 025124

BLADE
(Superseded to 08904600)

$34.99

$

In Stock, only 1 left!

0

4

Gravely 023026

CRADLE, BLADE
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

5

Gravely 021211

SEAL, STEEL
(Superseded to 08722600)

$15.99

$

In Stock, Qty 11

0

6

Gravely 020743

WASHER, FLAT; .975X1.970X.030
(Superseded to 06426900)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 038199

ASSEMBLY, BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 14

0

8

Gravely 021382

WASHER, CUP
(Superseded to 08516600)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 021216

SHAFT, SPINDLE
(Superseded to 58802800)

$85.99

$

In Stock, only 4 left!

0

10

Gravely 021215

HOUSING, BEARING
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

11

Gravely 025125

SHEAVE, SPINDLE
(Superseded to 08727300)

$

$

Not available

12

Gravely 456004

NUT, LOCK; 3/8-16 WASHER INSERT HEX
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

13

Gravely 411010

FITTING, LUBE; 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 126419

BOLT; 3/8-16X2 RD HD SQ NK
(Superseded to 06200314)

$3.99

$

In Stock, Qty 7

0

15

Gravely 025126

WELDMENT, IDLER PIVOT
(Superseded to 08531600)

$

$

Not available

16

Gravely 021060

SHEAVE, IDLER
(Superseded to 07314800)

$39.99

$

In Stock, Qty 9

0

17

Gravely 180124

BOLT, HEX; 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

18

Gravely 025135

U-JOINT, MALE END
(Superseded to 08532000)

$

$

Not available

19

Gravely 411027

FITTING, LUBE; 1/4-28
(Superseded to 07012600)

$

$

Not available

20

Gravely 120388

WASHER, FLAT; .433X1.000X.038
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

21

Gravely 179252

PIN, COTTER; .062X1.000
(Superseded to 06707500)

$0.99

$

In Stock, only 4 left!

0

22

Gravely 013518

U-JOINT, FEMALE END
(Superseded to 08700200)

$

$

Not available

23

Gravely 014406

FITTING, LUBE; 1/4-28
(Superseded to 07012600)

$

$

Not available

24

Gravely 022062

SPACER
(Superseded to 08518500)

$8.99

$

In Stock, only 1 left!

0

25

Gravely 025128

ROD, IDLER
(Superseded to 20430700)

$

$

Not available

26

Gravely 011779

SPRING
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

27

Gravely 120394

WASHER, FLAT; .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 024560

KIT, REPAIR; UNIVERSAL JOINT(NEAPCO)
(Superseded to 03155800)

Note: (NEAPCO)

$

$

Not available

29

Gravely 120377

NUT, HEX; 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

30

Gravely 451539

NUT, JAM; 3/4-10 HEX HEAVY
(Superseded to 06537700)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 025131

SHEAVE, DRIVE
(Superseded to 08531800)

$

$

Not available

32

Gravely 431787

KEY, WOODRUFF; .188X.625 HARD
(Superseded to 06609300)

$2.99

$

In Stock, only 2 left!

0

33

Gravely 014645

SEAL, OIL; 1.250X1.686X.313
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

34

Gravely 180173

BOLT, HEX; 1/2-13X1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

35

Gravely 120384

WASHER, LOCK; 1/2 REG
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

36

Gravely 025129

V-BELT
(Superseded to 07219500)

$39.99

$

Usually ships in 4-12 days

0

37

Gravely 025132

GUARD, BELT
(Superseded to 08531900)

$66.99

$

Usually ships in 4-12 days

0

38

Gravely 014644

ASSEMBLY, BEARING
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

39

Gravely 019607

GEAR, BEVEL
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

40

Gravely 014636

CASTING, GEAR BOX
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

41

Gravely 456007

NUT, LOCK; 3/4-10 WASHER INSERT HEX
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

42

Gravely 011231

GASKET, GEAR HOUSING
(Superseded to 08570100)

$5.99

$

In Stock, only 1 left!

0

43

Gravely 010982

COVER, GEAR HOUSING
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

44

Gravely 120380

WASHER, LOCK; 1/4 REG
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

45

Gravely 180016

BOLT, HEX; 1/4-20X.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

46

Gravely 019608

SHAFT, GEAR PINION
(Superseded to 08790400)

$

$

Not available

47

Gravely 014640

ASSEMBLY, BEARING
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

48

Gravely 014646

SEAL, OIL; 1.250X1.987X.250
(Superseded to 05613700)

$14.99

$

In Stock, only 3 left!

0

49

Gravely 014641

SPACER
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

50

Gravely 031412

SHAFT
(Superseded to 08729500)

$234.99

$

Usually ships in 4-12 days

0

51

Gravely 014642

RING, RETAINING; 1.000 SHAFT
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

52

Gravely 180044

BOLT, HEX; 1/4-20X2
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

53

Gravely 419454

NUT, LOCK; 1/4-20 WASHER INSERT HEX
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

54

Gravely 033845

WASHER, FLAT; .687X1.312X.130
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

55

Gravely 021306

ASSEMBLY, SPINDLE
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

56

Gravely 033828

SLEEVE, ROD
(Superseded to 08536200)

$

$

Not available
