885003 - Gravely 40" Deck for 2-Wheel Tractor (SN: 000522 - 009999)

40" Deck for 2-Wheel Tractor

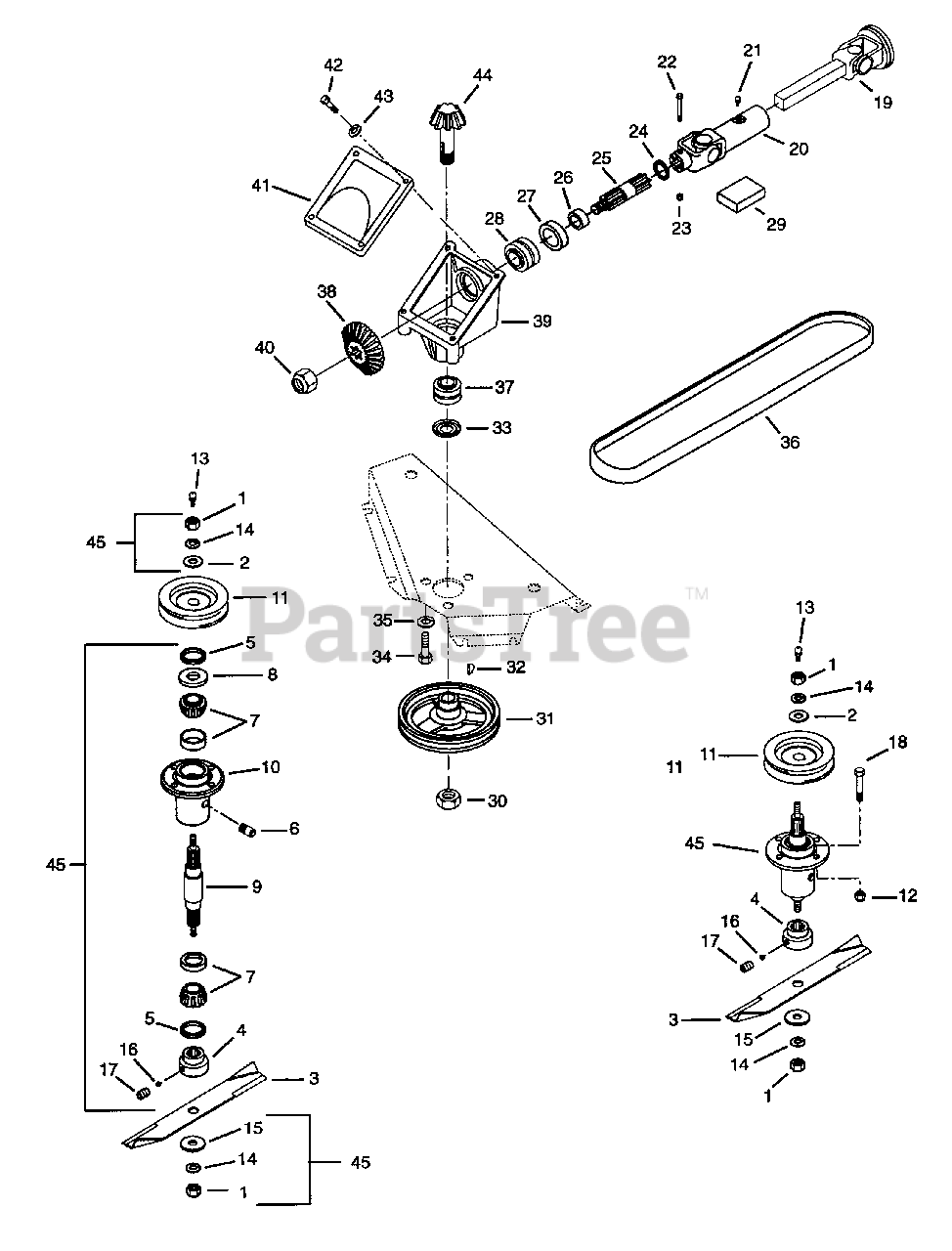

885003 - Gravely 40" Deck for 2-Wheel Tractor (SN: 000522 - 009999) > Parts Diagrams (3) > MOWER DRIVE

  • Title
124589

1

Nut-Hex .625-11 Grade 2

Part# 124589 (Superseded to 06535600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

033845

2

Washer-Flat-Steel .687 x 1.312 x .150

Part# 033845 (Superseded to 06427400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

025124

3

Blade

Part# 025124 (Superseded to 08904600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $18.95

08886500

4

Hub

Part# 08886500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

05613000

5

Seal 1.987 x 1.375 x .313

Part# 05613000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

08896500

6

Relief Fitting - Grease

Part# 08896500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

038199

7

Assembly, Bearing Cup & Cone

Part# 038199 (Superseded to 21245800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $44.66

06416600

8

Washer-Hardened-Thrust 1.007 x 1.542 x .062

Part# 06416600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.52

08898600

9

Shaft, Spindle

Part# 08898600 (Superseded to 58802800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $78.20

08894500

10

Bearing Housing

Part# 08894500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $78.20

08895400

11

Sheave

Part# 08895400

OEM Warranty Repair Part for Gravely

Not available

456004

12

Nut-Locking-Nylon .375-16 Grade 2

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

411010

13

Fitting-Lube 1/8

Part# 411010 (Superseded to 07012500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06300700

14

Washer-Locking .625 x .156

Part# 06300700 (Superseded to 06309500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06435200

15

Washer-Flat .640 x 1.81 x .250

Part# 06435200 (Superseded to 06400829)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.34

03191400

16

Plug

Part# 03191400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

06005400

17

Screw-Set .25-20 x .25

Part# 06005400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

180124

18

Bolt-Hex .38-16 x 1.25 Grade 5

Part# 180124 (Superseded to 05958000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

025135

19

Shaft, Prop Square Bar

Part# 025135 (Superseded to 08532000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $247.68

013518

20

Joint, U Female Eng

Part# 013518 (Superseded to 08700200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $343.84

411027

21

Fitting, Lube .25-28

Part# 411027 (Superseded to 07012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

180044

22

Bolt-Hex .25-20 x 2.00 Grade 5

Part# 180044 (Superseded to 05967100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

419454

23

Nut-Locking-Nylon .250-20 Grade 2

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

014642

24

Ring-Retaining 1.106 x .95

Part# 014642 (Superseded to 05711600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

031412

25

Shaft

Part# 031412 (Superseded to 08729500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $128.51

014641

26

Bushing Flange 1.00 x 1.25 x 1.25

Part# 014641 (Superseded to 08700500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

014646

27

Seal 1.250 x 1.983 x .250

Part# 014646 (Superseded to 05613700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

014640

28

Bearing-Assembly 1.000 x 1.980 x 1.243

Part# 014640 (Superseded to 05419300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $90.00

024560

29

Kit, Repair U-Joint

Part# 024560 (Superseded to 03155800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.73

451539

30

Nut-Hex-Jam .750-10

Part# 451539 (Superseded to 06537700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

025131

31

Sheave, Drive

Part# 025131 (Superseded to 08531800)

OEM Warranty Repair Part for Gravely

Not available

431787

32

Key-Woodruff .19 x .63

Part# 431787 (Superseded to 06609300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.03

014645

33

Seal 1.250 x 1.691 x .310

Part# 014645 (Superseded to 05613600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

180173

34

Bolt-Hex .50-13 x 1 Grade 5

Part# 180173 (Superseded to 05947100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

120384

35

Washer-Lock .50 Reg.

Part# 120384 (Superseded to 06300115)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.21

025129

36

V-Belt A-Section 33.25 x .504

Part# 025129 (Superseded to 07219500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $31.25

014644

37

Bearing-Assembly .75 x 1.781 x 1.499

Part# 014644 (Superseded to 05419400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $99.56

019607

38

Gear, Bevel

Part# 019607 (Superseded to 08790300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $208.12

014636

39

Casting, Gear Box

Part# 014636 (Superseded to 08700400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $234.72

456007

40

Nut-Locking-Nylon .75-10 Grade 2

Part# 456007 (Superseded to 06540800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

010982

41

Cover, Gear Housing

Part# 010982 (Superseded to 08860500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $31.25

180016

42

Bolt-Hex .25-20 x .50

Part# 180016 (Superseded to 05947900)

OEM Warranty Repair Part for Gravely

Not available

120380

43

Washer-Lock .250 Reg.

Part# 120380 (Superseded to 06308400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

019608

44

Shaft, Gear Pinion

Part# 019608 (Superseded to 08790400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $339.74

58802300

45

Service Kit Spindle Assembly

Part# 58802300 (Superseded to 58803600)

Note: (Contains one ea. of Items 2,4,6,8-10,15-17 and two ea. of Items 1,5,7,14)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $212.36
