885003 - Gravely 40" Deck for 2-Wheel Tractor (SN: 000522 - 009999)

40" Deck for 2-Wheel Tractor

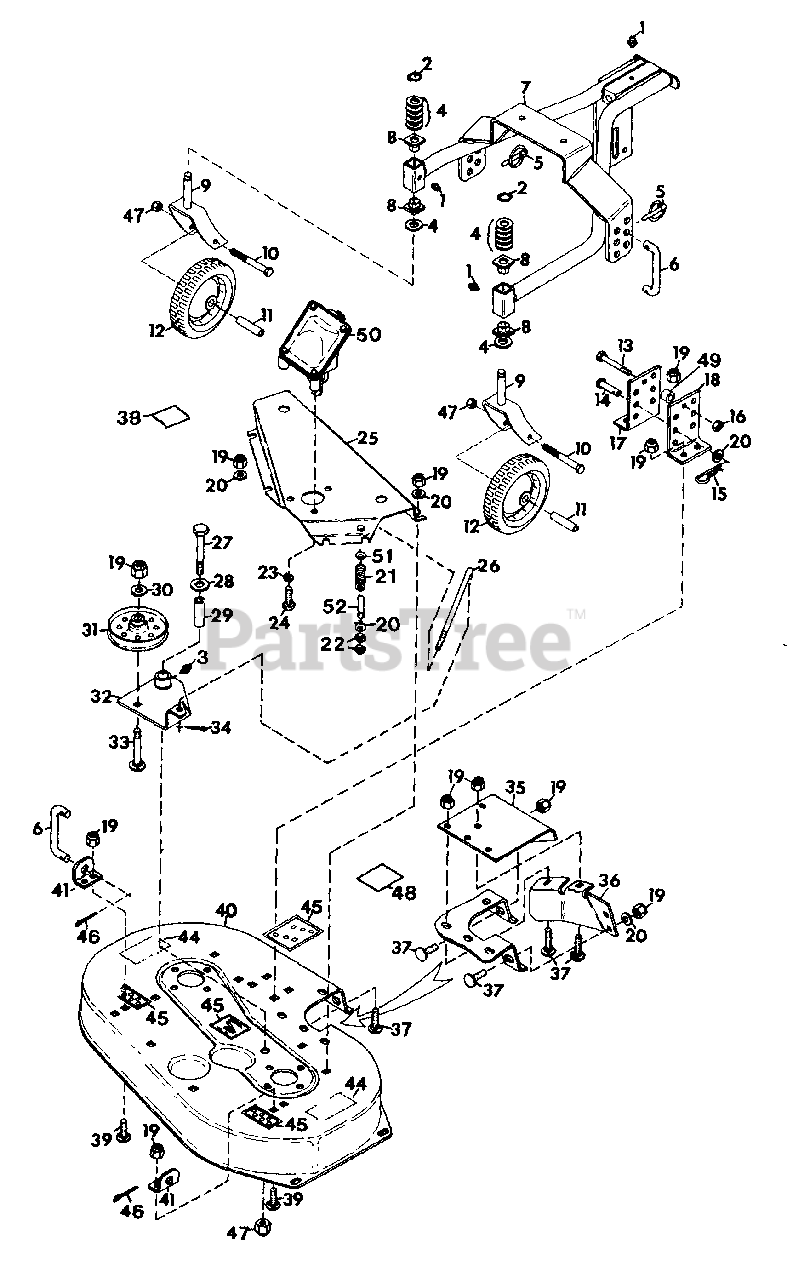

885003 - Gravely 40" Deck for 2-Wheel Tractor (SN: 000522 - 009999) > Parts Diagrams (3) > MOWER HOUSING & FRAME

  • Title
411027

1

Fitting-Lube .25-28 x .256

Part# 411027 (Superseded to 07012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

011135

2

Ring-Retaining-Internal .750 x .042

Part# 011135 (Superseded to 05700135)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

014406

3

Fitting-Lube .25-28 x .46

Part# 014406 (Superseded to 07012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

423315

4

Washer-Flat-Steel .813 x 1.370 x .100

Part# 423315 (Superseded to 06439000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

023468

5

Pin-Klik 1.000 x .188 x 1.25

Part# 023468 (Superseded to 07014500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

025153

6

Rod, Adjusting

Part# 025153 (Superseded to 08598900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

025137

7

Weldment, Support

Part# 025137 (Superseded to 08532100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

025148

8

Bushing-Flange .610 x 1.200 x 1.04 x .190

Part# 025148 (Superseded to 05519300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

025146

9

Weldment, Caster

Part# 025146 (Superseded to 08532800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $111.74

433163

10

Bolt-Hex .50-13 x 5.00

Part# 433163 (Superseded to 05962200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

011950

11

Spacer .532 x .748 x 3.34

Part# 011950 (Superseded to 09023500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

023696

12

Wheel Hub 3.25 x .75

Part# 023696 (Superseded to 07128100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $111.24

180024

13

Bolt-Hex .25-20 x 1.25 Grade 5

Part# 180024 (Superseded to 05947400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

138078

14

Pin, Clevis .375 x .948

Part# 138078 (Superseded to 06811900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

011860

15

Pin-Cotter .05 x 1.157

Part# 011860 (Superseded to 06713500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

419454

16

Nut-Locking-Nylon .250-20 Grade 2

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

025149

17

Bracket, Rear Support

Part# 025149 (Superseded to 08533100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

025150

18

Bracket, Rear Support

Part# 025150 (Superseded to 08533200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

456004

19

Nut-Locking-Nylon .375-16 Grade 2

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

120394

20

Washer-Flat-Steel .406 x .812 x .065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

011779

21

Spring-Compression .125 x .78 x 1.00

Part# 011779 (Superseded to 08327000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06522900

22

Nut-Hex .375-24

Part# 06522900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

120384

23

Washer-Lock .50 Reg.

Part# 120384 (Superseded to 06300115)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.21

180173

24

Bolt-Hex .50-13 x 1 Grade 5

Part# 180173 (Superseded to 05947100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

025132

25

Guard, Belt

Part# 025132 (Superseded to 08531900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $65.35

021112

26

Rod, Idler 40 inch Mower

Part# 021112 (Superseded to 03351200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

180181

27

Bolt-Hex .50-13 x 2.00 Grade 5

Part# 180181 (Superseded to 05959700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

120396

28

Washer-Flat-Steel .531 x 1.062 x .095

Part# 120396 (Superseded to 06441900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

022062

29

Spacer .516 x .874 x .998

Part# 022062 (Superseded to 08518500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

120388

30

Washer-Flat-Steel .438 x 1.000 x .083

Part# 120388 (Superseded to 06435900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

021060

31

Pulley-Idler 4.50 x .380

Part# 021060 (Superseded to 07314800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $28.84

025126

32

Weldment, Idler Pivot

Part# 025126 (Superseded to 08531600)

OEM Warranty Repair Part for Gravely

Not available

126419

33

Bolt-Round Head Square Neck .38-16 x 2.00

Part# 126419 (Superseded to 06224300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

179252

34

Pin-Cotter .06 x 1.00

Part# 179252 (Superseded to 06707500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.31

025123

35

Shield, Discharge

Part# 025123 (Superseded to 08802200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

025122

36

Shroud, Blade

Part# 025122 (Superseded to 08802100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.61

120915

37

Bolt-Round Head Square Neck .38-16 x 1.0

Part# 120915

OEM Warranty Repair Part for Gravely

Not available

033928

38

Decal, Warning Eye

Part# 033928 (Superseded to 05350200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

126227

39

Bolt-Round Head Square Neck .375-16 x .75 Grade 1

Part# 126227 (Superseded to 06223900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

025121

40

Deck, 40 Inch Mower

Part# 025121 (Superseded to 08531500)

OEM Warranty Repair Part for Gravely

Not available

025152

41

Bracket, Mower Support

Part# 025152 (Superseded to 08533400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

033927

44

Decal, Danger Foot

Part# 033927 (Superseded to 05350100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

031842

45

Decal, 40" Com Mower

Part# 031842 (Superseded to 05350900)

OEM Warranty Repair Part for Gravely

Not available

177923

46

Pin-Cotter .12 x .75

Part# 177923 (Superseded to 06707300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

435507

47

Nut-Locking-Nylon .50-13 Grade 5

Part# 435507 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

033926

48

Decal, Danger Hand

Part# 033926 (Superseded to 05350300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

025151

49

Spacer .277 x .375 x .440

Part# 025151 (Superseded to 08533300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

08570300

50

Assembly-Gearbox

Part# 08570300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $907.19

021382

51

Washer

Part# 021382 (Superseded to 08516600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

033828

52

Sleeve, Rod

Part# 033828 (Superseded to 08536200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $167.64
