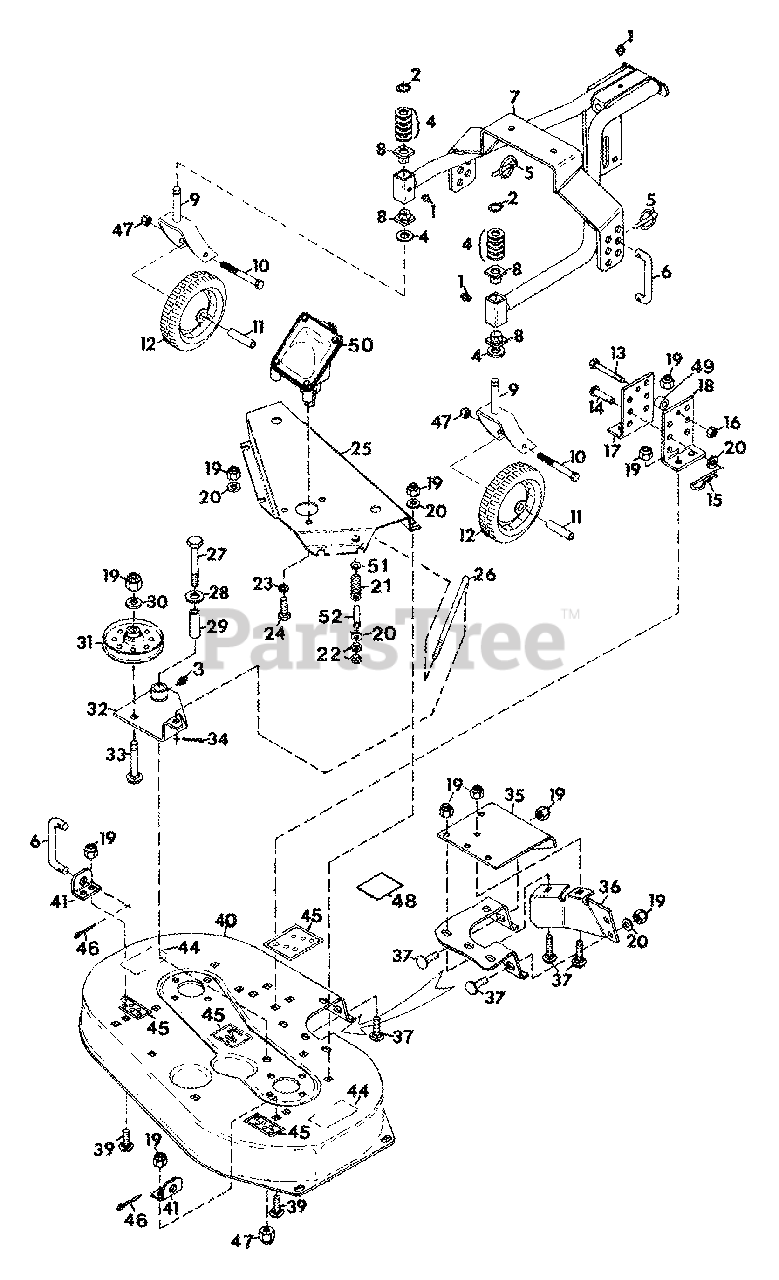

885003 - Gravely 40" Deck for 2-Wheel Tractor (SN: 010000 & Above) Mower Housing And Frame Parts Diagram

40" Deck for 2-Wheel Tractor

Mower Housing And Frame Parts Diagram

  • Title

1

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

2

Gravely 011135

Ring-Retaining-Internal .750 x .042
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

3

Gravely 051325

Fitting-Lube .25-28 x .256
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

4

Gravely 423315

Washer-Flat-Steel .813 x 1.370 x .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

5

Gravely 023468

Pin-Klik 1.000 x .188 x 1.25
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 025153

Rod, Adjusting
(Superseded to 08598900)

$

$

Not available

7

Gravely 025137

Weldment, Support
(Superseded to 08532100)

$387.99

$

Usually ships in 4-12 days

0

8

Gravely 025148

Bushing-Flange .610 x 1.200 x 1.04 x .190
(Superseded to 05519300)

$7.49

$

In Stock, Qty 5

0

9

Gravely 025146

Weldment, Caster
(Superseded to 08532800)

$

$

Not available

10

Gravely 05962200

Bolt-Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 011950

Spacer .532 x .748 x 3.34
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 023696

Wheel Hub 3.25 x .75
(Superseded to 07128100)

$

$

Not available

13

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

14

Gravely 06811900

Pin, Clevis .375 x .948

$4.99

$

In Stock, Qty 5

0

15

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 17

0

16

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

17

Gravely 025149

Bracket, Rear Support
(Superseded to 08533100)

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 025150

Bracket, Rear Support
(Superseded to 08533200)

$39.99

$

Usually ships in 4-12 days

0

19

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

20

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 4 left!

0

22

Gravely 06522900

Nut-Hex .375-24
(Superseded to 06500940)

$2.49

$

In Stock, only 1 left!

0

23

Gravely 06307300

Washer-Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

24

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

25

Gravely 025132

Guard, Belt
(Superseded to 08531900)

$66.99

$

Usually ships in 4-12 days

0

26

Gravely 021112

Rod, Idler 40 inch Mower
(Superseded to 03351200)

$

$

Not available

27

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 022062

Spacer .516 x .874 x .998
(Superseded to 08518500)

$8.99

$

In Stock, only 1 left!

0

30

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

31

Gravely 021060

Pulley-Idler 4.50 x .380
(Superseded to 07314800)

$39.99

$

In Stock, Qty 9

0

32

Gravely 025126

Weldment, Idler Pivot
(Superseded to 08531600)

$

$

Not available

33

Gravely 06224300

Bolt-Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, Qty 7

0

34

Gravely 06707500

Pin-Cotter .06 x 1.00

$0.99

$

In Stock, only 3 left!

0

35

Gravely 025123

Shield, Discharge
(Superseded to 08802200)

$28.99

$

Usually ships in 4-12 days

0

36

Gravely 025122

Shroud, Blade
(Superseded to 08802100)

$66.99

$

Usually ships in 4-12 days

0

37

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

39

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

40

Gravely 025121

Deck, 40 Inch Mower
(Superseded to 08531500)

$

$

Not available

41

Gravely 025152

Bracket, Mower Support
(Superseded to 08533400)

$12.99

$

Usually ships in 4-12 days

0

44

Gravely 07731400

Decal, Danger

$21.99

$

In Stock, only 2 left!

0

45

Gravely 05350900

Decal Set, 40" Mower

$

$

Not available

46

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 9

0

47

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

48

Gravely 07742300

Decal, Warning

$11.99

$

Usually ships in 4-12 days

0

49

Gravely 025151

Spacer .277 x .375 x .440
(Superseded to 08533300)

$15.99

$

Usually ships in 4-12 days

0

50

Gravely 08570300

Assembly-Gearbox

$1066.99

$

Usually ships in 4-12 days

0

51

Gravely 021382

Washer
(Superseded to 08516600)

$3.99

$

Usually ships in 4-12 days

0

52

Gravely 033828

Sleeve, Rod
(Superseded to 08536200)

$

$

Not available
