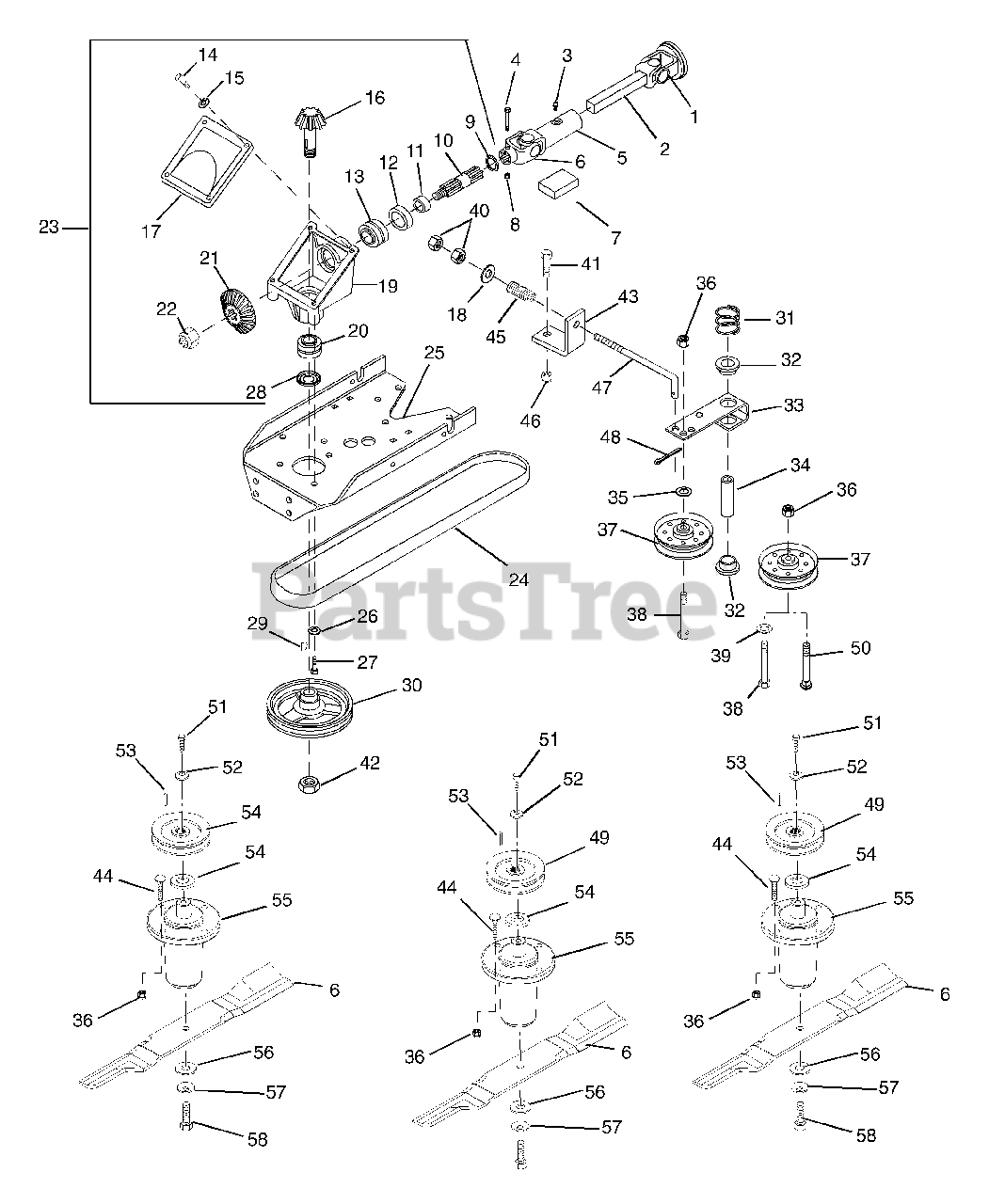

885005 - Gravely 40" Deck for 2-Wheel Tractor (SN: 010000 & Above) 40" & 50" Mower Drive Parts Diagram

40" Deck for 2-Wheel Tractor

40" & 50" Mower Drive Parts Diagram

  • Title

1

Gravely 045954

Q.D. YOKE
(Superseded to 20823200)

$

$

Not available

2

Gravely 08713900

SHFT,PROP SQ. BAR

$672.99

$

Usually ships in 4-12 days

0

3

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

4

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

5

Gravely 013518

JT,U,FEMALE END
(Superseded to 08700200)

$

$

Not available

6

Gravely 08899300

MOWER BLADE TUNGSTEN CARBIDE
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0

Gravely 08899800

MOWER BLADE TUNGSTEN CARBIDE
(Superseded to 03498400)

$19.99

$

In Stock, Qty 20+

0

7

Gravely 012134

JOURNAL CROSS & BEARING ASSEMB
(Superseded to 03155800)

$

$

Not available

8

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

9

Gravely 014642

RG-RTNG EXT 1.106X.95
(Superseded to 05711600)

$9.99

$

Usually ships in 4-12 days

0

10

Gravely 031412

SHFT,
(Superseded to 08729500)

$

$

Not available

11

Gravely 014641

BUSH F 1.00X1.25X1.25 ST
(Superseded to 08700500)

$24.99

$

In Stock, only 2 left!

0

12

Gravely 014646

SEAL 1.250X1.983X.250
(Superseded to 05613700)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 014640

BRG-ASM 1.000X1.980X1.243
(Superseded to 05419300)

$115.99

$

In Stock, only 1 left!

0

14

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

15

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

16

Gravely 051326

SHFT,PINION GEAR
(Superseded to 08790400)

$

$

Not available

17

Gravely 010982

CVR,GEAR HOUSING
(Superseded to 08860500)

$45.99

$

Usually ships in 4-12 days

0

18

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 014636

CSTG,GEAR BOX
(Superseded to 08700400)

$305.99

$

Usually ships in 4-12 days

0

20

Gravely 014644

BRG-ASM .75X1.781X1.499
(Superseded to 05419400)

$116.99

$

Usually ships in 4-12 days

0

21

Gravely 051325

GR,BEVEL
(Superseded to 08790300)

$245.99

$

Usually ships in 4-12 days

0

22

Gravely 06540800

NUT-LK-NYL .75-10 YWZC

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 08570300

ASSY, GEARBOX

$

$

Not available

24

Gravely 07226700

V-BELT, HA-WRAPPED

Note: (Model 005)

$70.99

$

In Stock, Qty 20+

0

Gravely 07226600

BELT,HA 127.10 WRAPPED C-L2089
(Superseded to 07219600)

Note: (Model 006)

$83.99

$

In Stock, Qty 20+

0

25

Gravely 045632

SUPPORT, GEAR HOUSING
(Superseded to 08561300)

$

$

Not available

26

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

28

Gravely 014645

SEAL 1.250X1.691X.310
(Superseded to 05613600)

$17.99

$

In Stock, only 3 left!

0

29

Gravely 431787

KEY-WDRF .19X.63 HRD #61
(Superseded to 06609300)

$3.49

$

In Stock, only 2 left!

0

30

Gravely 045649

SHEAVE,DRIVE
(Superseded to 08770000)

$

$

Not available

31

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

32

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

33

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

34

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

35

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

36

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

37

Gravely 021060

PLY-IDLER 4.00X.380
(Superseded to 07314800)

$40.99

$

In Stock, Qty 10

0

38

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

Note: (Model 005)

$3.49

$

In Stock, Qty 20+

0

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

Note: (Model 006)

$3.49

$

In Stock, Qty 20+

0

39

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (Model 005)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 120369

NUT-HEX .375-24 YWZC
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

41

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

Note: (Model 006)

$4.99

$

In Stock, Qty 12

0

Gravely 180176

BLT-HEX .50-13X1.375
(Superseded to 05935800)

Note: (Model 005)

$

$

Not available

42

Gravely 06537700

NUT-JAM .75-10 YWZC

$2.99

$

In Stock, Qty 20+

0

43

Gravely 034431

SPRT,SPRING
(Superseded to 08537000)

$

$

Not available

44

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

45

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

46

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

47

Gravely 021111

ROD,IDLER 50 IN. MOWER
(Superseded to 08598300)

Note: (Model 006)

$43.99

$

Usually ships in 4-12 days

0

Gravely 021112

ROD,IDLER 40 IN. MOWER
(Superseded to 03351200)

Note: (Model 005)

$

$

Not available

48

Gravely 121224

PIN-CTR .09X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 11

0

49

Gravely 04906100

SHEAVE, SPINDLE

Note: (Model 005)

$116.99

$

Usually ships in 4-12 days

0

Gravely 04903900

WLDM'T, PLY-V 3.50X1.004 W/KEY
(Superseded to 07333467)

Note: (Model 006)

$70.99

$

In Stock, only 2 left!

0

50

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

Note: (Model 006)

$4.99

$

In Stock, Qty 11

0

51

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

52

Gravely 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

53

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

54

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0

55

Gravely 58803600

MAINTENANCE FREE SPINDLE ASSY

$273.99

$

In Stock, Qty 8

0

56

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

57

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

58

Gravely 07053400

BLT-HEX .50-13X1.90 GR8 BLADE

$48.99

$

In Stock, only 3 left!

0

Gravely 036799

SPRING
(Superseded to 08738900)

Note: NS

$13.99

$

Usually ships in 4-12 days

0

Gravely 036800

COLLAR
(Superseded to 08739000)

Note: NS

$25.99

$

Usually ships in 4-12 days

0

Gravely 036801

RG,SNAP
(Superseded to 08739100)

Note: NS

$

$

Not available

Gravely 145643

BALL .375 GRD 2000 CBN STL
(Superseded to 05429800)

Note: NS

$

$

Not available
