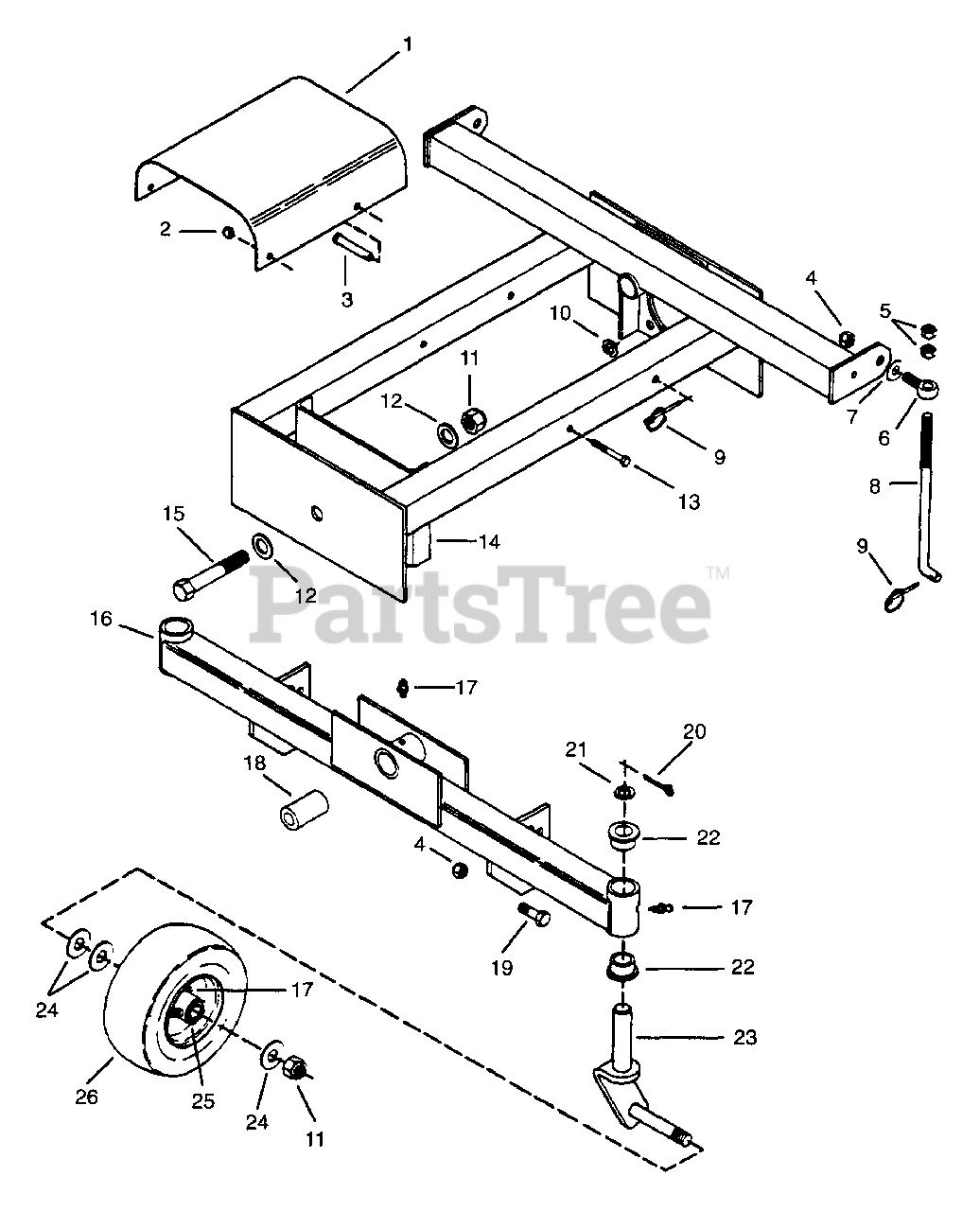

885007 - Gravely 50" Deck for 2-Wheel Tractor (SN: 000252 - 000339) MOWER FRAME Parts Diagram

50" Deck for 2-Wheel Tractor

MOWER FRAME Parts Diagram

  • Title

1

Gravely 035012

Guard, PTO Shaft
(Superseded to 08537700)

$31.99

$

Usually ships in 4-12 days

0

2

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

3

Gravely 022113

Pin-Clevis .38 x 2.62
(Superseded to 06811100)

$

$

Not available

4

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 120238

Nut-Jam .50-13 Grade 2
(Superseded to 06500911)

$1.49

$

In Stock, Qty 17

0

6

Gravely 035165

Bolt-Eye .56 x 2.12
(Superseded to 07015300)

$32.99

$

In Stock, only 1 left!

0

7

Gravely 120389

Washer-Flat-Steel .500 x 1.250 x .083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 16

0

8

Gravely 035690

Rod, Height Adjuster
(Superseded to 08599000)

$93.99

$

Usually ships in 4-12 days

0

9

Gravely 023468

Pin-Klik 1.000 x .188 x 1.25
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 120384

Washer-Lock .50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

11

Gravely 456007

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

12

Gravely 035640

Washer-Flat-Steel .700 x 1.470 x .134
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

13

Gravely 180091

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

14

Gravely 044154

Weldment, Mower Frame
(Superseded to 08553900)

$

$

Not available

15

Gravely 271781

Bolt-Hex .75-10 x 4.50
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

16

Gravely 044394

Weldment, Axle
(Superseded to 08555500)

$113.99

$

Usually ships in 4-12 days

0

17

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

18

Gravely 034920

Tube, Pivot
(Superseded to 08911800)

$

$

Not available

19

Gravely 180176

Bolt-Hex .50-13 x 1.375
(Superseded to 05935800)

$

$

Not available

20

Gravely 137253

Pin-Cotter .188 x 1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .03

$4.99

$

In Stock, only 4 left!

0

22

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

23

Gravely 08954653

Weldment, Caster Fork

$221.99

$

Usually ships in 4-12 days

0

24

Gravely 131017

Washer-Flat .812 x 1.469 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 17

0

25

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$18.99

$

In Stock, Qty 7

0

26

Gravely 045205

Wheel 9 x 3.50
(Superseded to 07130100)

$108.99

$

In Stock, Qty 5

0
