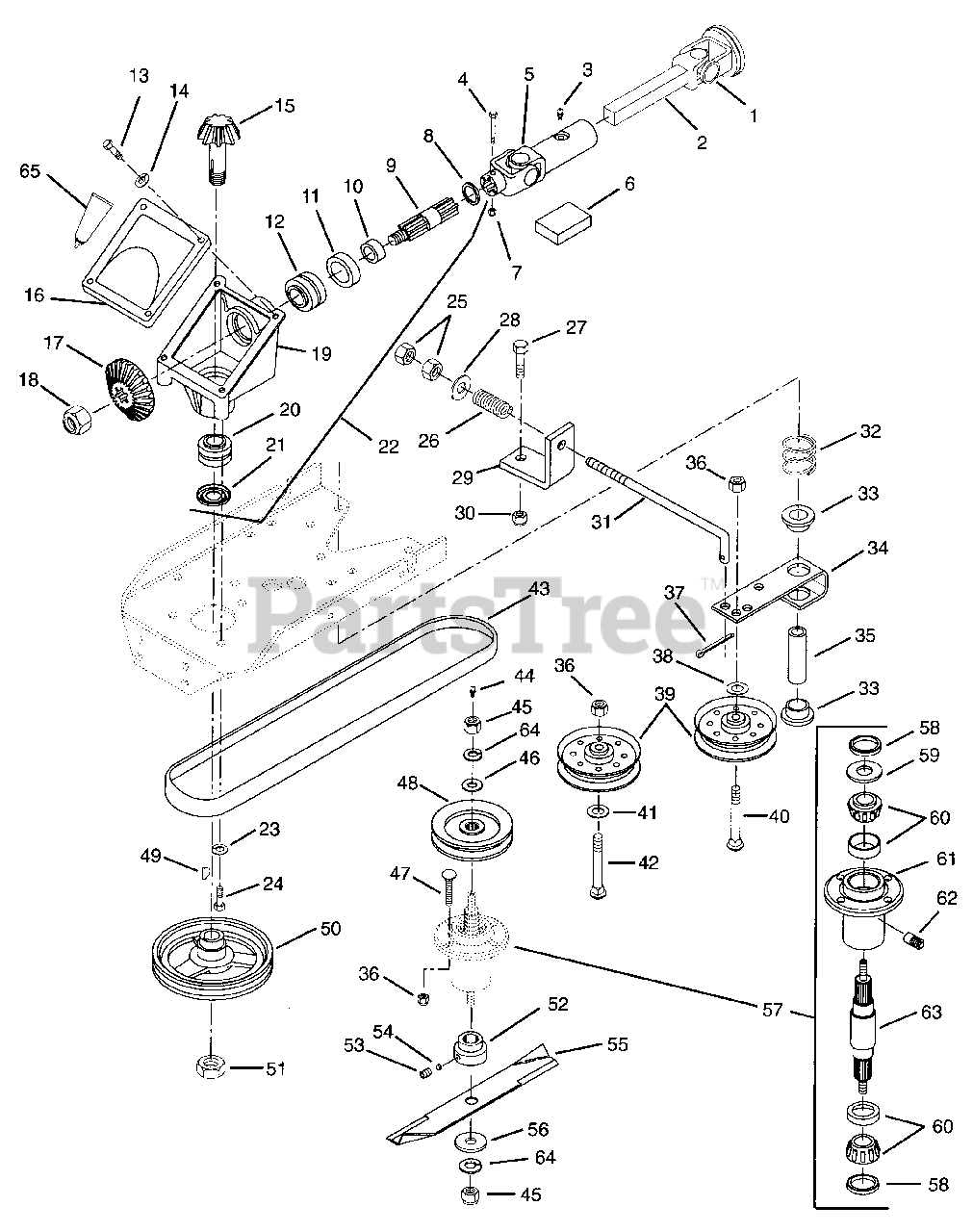

885007 - Gravely 50" Deck for 2-Wheel Tractor (SN: 000340 & Above) MOWER DRIVE Parts Diagram

50" Deck for 2-Wheel Tractor

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 045954

Yoke, Quick Disconnect
(Superseded to 20823200)

Note: (Contains the following 4 service parts)

$213.99

$

Usually ships in 4-12 days

0

1

Gravely 036799

Spring
(Superseded to 08738900)

$9.49

$

In Stock, only 1 left!

0

1

Gravely 036800

Collar
(Superseded to 08739000)

$25.99

$

Usually ships in 4-12 days

0

1

Gravely 036801

Ring, Snap
(Superseded to 08739100)

$14.99

$

Usually ships in 4-12 days

0

1

Gravely 145643

Ball .375 Guard
(Superseded to 05429800)

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 019074

Shaft, Prop Square Bar
(Superseded to 08713900)

$532.99

$

Usually ships in 4-12 days

0

3

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

4

Gravely 180044

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 013518

U-Joint, Female End
(Superseded to 08700200)

$

$

Not available

5

Gravely 012134

Kit, Repair, U-Joint
(Superseded to 03155800)

$

$

Not available

6

Gravely 039739

Kit, Repair, Journal Cross and Bearing Assembly
(Superseded to 03155800)

$

$

Not available

7

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

8

Gravely 014642

Ring-Retaining 1.106 x .95
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 031412

Shaft
(Superseded to 08729500)

$234.99

$

Usually ships in 4-12 days

0

10

Gravely 014641

Bushing Flange 1.00 x 1.25 x 1.25
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

11

Gravely 014646

Seal 1.250 x 1.983 x .250
(Superseded to 05613700)

$14.99

$

In Stock, only 3 left!

0

12

Gravely 014640

Bearing-Assembly 1.000 x 1.980 x 1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

13

Gravely 180016

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

14

Gravely 120380

Washer-Lock .250 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

15

Gravely 045588

Shaft, Pinion Gear
(Superseded to 08790400)

$

$

Not available

16

Gravely 010982

Cover, Gear Housing
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

17

Gravely 045587

Gear, Bevel
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

18

Gravely 456007

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

19

Gravely 014636

Casting, Gear Box
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

20

Gravely 014644

Bearing-Assembly .75 x 1.781 x 1.499
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

21

Gravely 014645

Seal 1.250 x 1.691 x .310
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

22

Gravely 08570300

Assembly, Gear Box

Note: (Contains items 9 through 22)

$1066.99

$

Usually ships in 4-12 days

0

23

Gravely 120384

Washer-Lock .50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

24

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

25

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 1 left!

0

26

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

27

Gravely 180176

Bolt-Hex .50-13 x 1.375
(Superseded to 05935800)

$

$

Not available

28

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 034431

Support, Spring
(Superseded to 08537000)

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 021111

Rod, Idler 50 In. Mower
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

32

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 2 left!

0

33

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

34

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

In Stock, only 1 left!

0

35

Gravely 034119

Spacer .560 x .750 x 2.437
(Superseded to 08820500)

$17.99

$

In Stock, only 2 left!

0

36

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

37

Gravely 121224

Pin-Cotter .09 x 1.0

$0.99

$

Usually ships in 4-12 days

0

38

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 12

0

39

Gravely 021060

Pulley-Idler 4.50 x .380
(Superseded to 07314800)

$39.99

$

In Stock, Qty 9

0

40

Gravely 180130

Bolt-Hex .38-16 x 3.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 14

0

41

Gravely 120388

Washer-Flat-Steel .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

42

Gravely 126416

Bolt-Round Head Square Neck .38-16 x 1.75
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

43

Gravely 011216

Belt, V .5 x .312 x 126.3
(Superseded to 07219600)

$79.99

$

In Stock, Qty 12

0

44

Gravely 411010

Fitting-Lube 1/8 (Left and Right Spindle)
(Superseded to 07012500)

Note: (Left and Right Spindle)

$3.99

$

In Stock, only 4 left!

0

44

Gravely 021214

Fitting-Lube .125 (Center Spindle)
(Superseded to 07012100)

Note: (Center Spindle)

$

$

Not available

45

Gravely 124587

Nut, Hex .625-11 Grade 2

$

$

Not available

46

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .150
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

47

Gravely 126402

Bolt-Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

48

Gravely 08894900

Sheave
(Superseded to 58803500)

$119.99

$

Usually ships in 4-12 days

0

49

Gravely 431787

Key-Woodruff .19 x .63
(Superseded to 06609300)

$2.99

$

In Stock, only 2 left!

0

50

Gravely 014660

Sheave, 1/2 x 6.50
(Superseded to 08770000)

$140.99

$

Usually ships in 4-12 days

0

51

Gravely 451539

Nut-Hex-Jam .750-10
(Superseded to 06537700)

$2.49

$

In Stock, Qty 20+

0

52

Gravely 08886500

Hub

$64.99

$

Usually ships in 4-12 days

0

53

Gravely 06005400

Screw-Set, Socket Head Cup Point .25-20 x .25

$3.99

$

Usually ships in 4-12 days

0

54

Gravely 03191400

Plug

$6.49

$

Usually ships in 4-12 days

0

55

Gravely 011234

Blade
(Superseded to 08861600)

$22.99

$

In Stock, Qty 20+

0

56

Gravely 06435200

Washer-Flat .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, Qty 15

0

57

Gravely 58802300

Service Kit Spindle Assembly
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

58

Gravely 05613000

Seal 1.987 x 1.375 x .313

$10.99

$

In Stock, Qty 11

0

59

Gravely 06416600

Washer, Hardened Thrust 1.007 x 1.1542 x .062

$2.99

$

In Stock, Qty 20+

0

60

Gravely 038199

Assembly, Bearing Cup & Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 14

0

61

Gravely 08894500

Bearing Housing

$

$

Not available

62

Gravely 08896800

Relief Fitting, Grease

$13.99

$

Usually ships in 4-12 days

0

63

Gravely 08898600

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 4 left!

0

64

Gravely 06300700

Washer, Locking .625 x .156
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

65

Gravely 00932500

Kit, Liquid Gasket

$

$

Not available
