885009 - Gravely 42" Sickle Mower for 2-Wheel Tractor (SN: 000101 & Above) SICKLE MOWER Parts Diagram

42" Sickle Mower for 2-Wheel Tractor

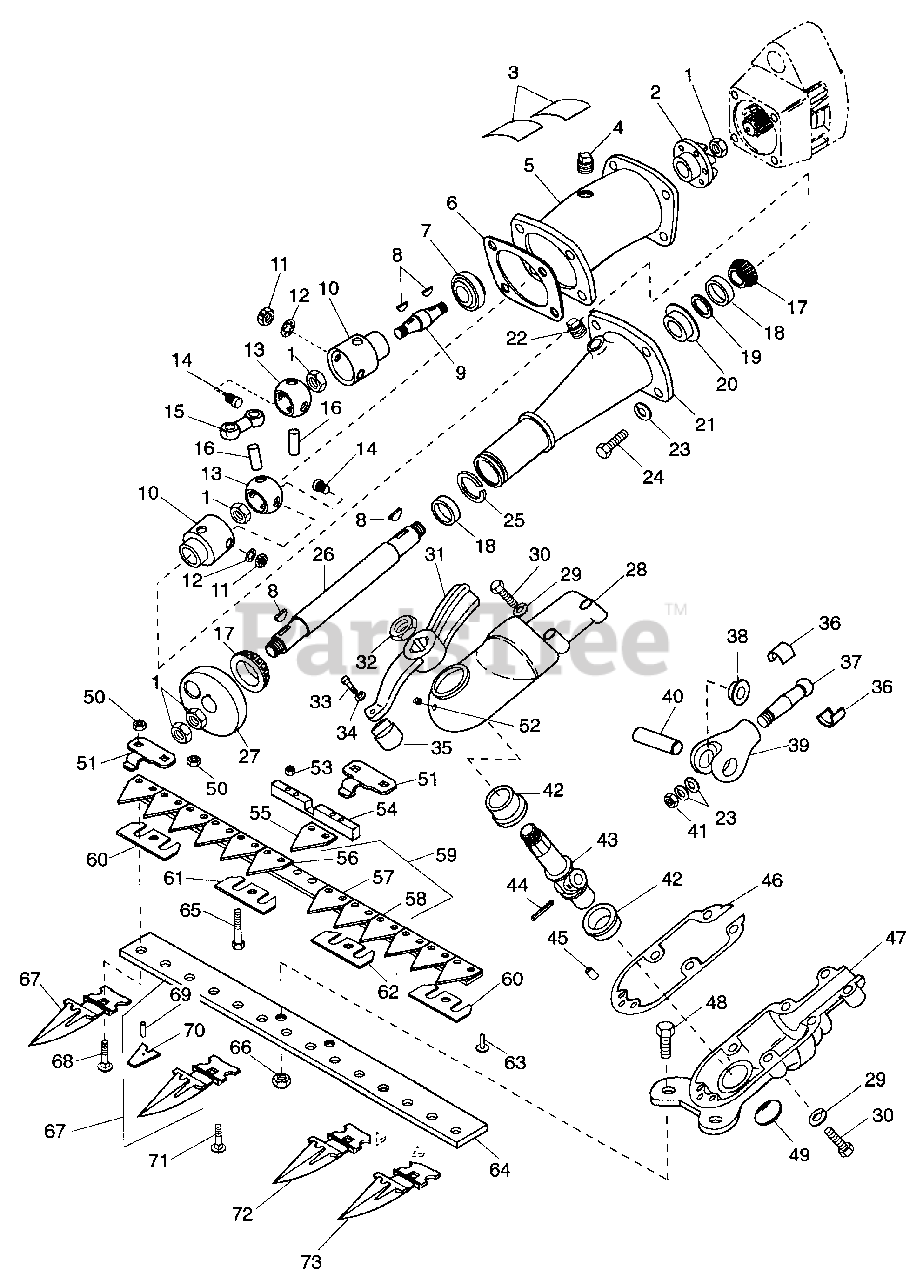

SICKLE MOWER Parts Diagram

  • Title

1

Gravely 019918

Nut-Lk .625-24
(Superseded to 06526200)

$

$

Not available

2

Gravely 041887

Wldmt, Dog Plate
(Superseded to 08548000)

$

$

Not available

3

Gravely 021369

Decal, Sckl Mwr Warning
(Superseded to 05201300)

$

$

Not available

4

Gravely 013408

Plug-Pipe .50 x .81
(Superseded to 07015900)

$

$

Not available

5

Gravely 003197

Hsg, Universal
(Superseded to 08576300)

$

$

Not available

6

Gravely 005056

Gskt, Attachment
(Superseded to 08584900)

$3.99

$

In Stock, Qty 18

0

7

Gravely 013597

Brg-Ball .984 x 2.047 x .59
(Superseded to 05418900)

$

$

Not available

8

Gravely 124549

Key-Wdrf .19 x .75 Hrd #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 013596

Shft, Stud
(Superseded to 08500700)

$

$

Not available

10

Gravely 013598

Cup, Universal
(Superseded to 08500800)

$

$

Not available

11

Gravely 013627

Nut,Lk .375-24 Lt Esna
(Superseded to 06526100)

$

$

Not available

12

Gravely 138542

Wshr-Lock Int .375 Tooth
(Superseded to 06306000)

$

$

Not available

13

Gravely 013600

Rg, Center
(Superseded to 08501000)

$

$

Not available

14

Gravely 013599

Stud, Pivot
(Superseded to 08500900)

$

$

Not available

15

Gravely 013602

Link
(Superseded to 08501200)

$

$

Not available

16

Gravely 013601

Pin, Pivot
(Superseded to 08501100)

$

$

Not available

17

Gravely 013594

Brg, Cone .875 x .781
(Superseded to 05416100)

$

$

Not available

18

Gravely 013595

Brg, Race 2.240 x .62 Tmkn
(Superseded to 05416400)

$

$

Not available

19

Gravely 012987

Seal .875 x 1.500 x .256
(Superseded to 05621800)

$9.99

$

Usually ships in 4-12 days

0

20

Gravely 003151

Rtnr, Oil Seal
(Superseded to 08575900)

$

$

Not available

21

Gravely 013604

Clmn, Drive
(Superseded to 08501400)

$

$

Not available

22

Gravely 013607

Adptr-Pipe .75-14
(Superseded to 07016000)

$

$

Not available

23

Gravely 120384

Wshr-Lock .50 Reg
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

24

Gravely 180173

Blt-Hex .50-13 x 1 Pl Gr 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

25

Gravely 003173

Cork Seal
(Superseded to 08501600)

$9.99

$

Usually ships in 4-12 days

0

26

Gravely 013603

C/Shft
(Superseded to 08501300)

$

$

Not available

27

Gravely 023711

Crank Disk
(Superseded to 08530600)

$

$

Not available

28

Gravely 010476

Hsg, Crank Assembly
(Superseded to 08580600)

$

$

Not available

29

Gravely 120382

Wshr-Lock .375 x .094 Med Pl
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

30

Gravely 180130

Blt-Hex .38-16 x 2.00 Pl Gr 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 12

0

31

Gravely 003117

Lvr, Knife Actuating
(Superseded to 08575600)

$

$

Not available

32

Gravely 013619

Nut-Lk 1.0-14 Wshr Insert
(Superseded to 00181818)

$9.49

$

In Stock, only 1 left!

0

33

Gravely 003154

Blt-Hex .25-28 x 1.0
(Superseded to 07012900)

$3.49

$

In Stock, only 1 left!

0

34

Gravely 120423

Wshr-Lock .25 Int Th Tya
(Superseded to 06305200)

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 003182

Tip, Wearing
(Superseded to 08576200)

$68.99

$

In Stock, only 1 left!

0

36

Gravely 003145

Brg-Ball Stud
(Superseded to 08575800)

$

$

Not available

37

Gravely 003144

Stud, Ball
(Superseded to 08575700)

$

$

Not available

38

Gravely 003178

Bshg-Flg .813 x 1.002 x 1.000 x 1.31
(Superseded to 05528500)

$

$

Not available

39

Gravely 010442

Yoke, Crank Assembly
(Superseded to 08580500)

$284.99

$

Usually ships in 4-12 days

0

40

Gravely 003176

Pin, Knuckle
(Superseded to 08576000)

$5.99

$

Usually ships in 4-12 days

0

41

Gravely 124934

Nut-Jam .50-20 Pl
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

42

Gravely 013550

Bshg-FIg 1.250 x 1.875 x .75 x .125
(Superseded to 05516800)

$

$

Not available

43

Gravely 003606

Shft, Actuating Lever

$

$

Not available

44

Gravely 414525

Pin, Spring .188 x 1.375
(Superseded to 06706500)

$

$

Not available

45

Gravely 003184

Pin, Dwl .38 x .75
(Superseded to 05809500)

$

$

Not available

46

Gravely 003191

Gskt, Housing
(Superseded to 08572100)

$14.99

$

In Stock, only 1 left!

0

47

Gravely 010476

Hsg, Crank Assembly
(Superseded to 08580600)

$

$

Not available

48

Gravely 180177

Blt-Hex .50-13 x 1.50 Pl Gr 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

49

Gravely 003198

Plug, Expansion
(Superseded to 08576400)

$

$

Not available

50

Gravely 065035

Nut .437-14
(Superseded to 06503500)

$3.49

$

In Stock, only 4 left!

0

51

Gravely 003309

Clip, Knife
(Superseded to 08576800)

$

$

Not available

52

Gravely 070237

Plug, Pipe .12 Sq Hd Un Fin Stl
(Superseded to 07023700)

$

$

Not available

53

Gravely 454750

Nut-Lk-Nyl .250-20 W/lnsr
(Superseded to 06526900)

$5.99

$

In Stock, only 3 left!

0

54

Gravely 003308

Brk, Knife Drive
(Superseded to 08576700)

$112.99

$

Usually ships in 4-12 days

0

55

Gravely 013608

Knf, Center Sec 1 Ea
(Superseded to 08501700)

$14.99

$

Usually ships in 4-12 days

0

56

Gravely 013610

Knf, Right Section 1 Each
(Superseded to 21096400)

$

$

Not available

57

Gravely 013609

Knf, Left Section 1 Each
(Superseded to 21096300)

$

$

Not available

58

Gravely 003206

Knf, Section 1 Each
(Superseded to 08576500)

$6.99

$

Usually ships in 4-12 days

0

59

Gravely 040597

Asm, 42" Knife
(Superseded to 21255000)

$

$

Not available

60

Gravely 020504

Plt, Wear
(Superseded to 08512500)

$14.99

$

Usually ships in 4-12 days

0

61

Gravely 020745

Plt, Wear R.H.
(Superseded to 08513200)

$

$

Not available

62

Gravely 020746

Plt, Wear L.H.
(Superseded to 08513300)

$22.99

$

In Stock, only 1 left!

0

63

Gravely 189290

Rvt, Knife
(Superseded to 21060900)

$

$

Not available

64

Gravely 003301

Bar, Guard
(Superseded to 08576600)

$

$

Not available

65

Gravely 181577

Blt-Hex .25-28 x 1.75
(Superseded to 05936700)

$3.49

$

In Stock, only 4 left!

0

66

Gravely 120238

Nut-Jam .50-13 Pl
(Superseded to 06500911)

$1.49

$

In Stock, Qty 15

0

67

Gravely 014902

Grd, Single Asm
(Superseded to 08502900)

$45.99

$

Usually ships in 4-12 days

0

68

Gravely 003304

Blt-Plow .44-14 x 1.50
(Superseded to 07013000)

$3.49

$

Usually ships in 4-12 days

0

69

Gravely 014119

Rvt-Single
(Superseded to 20155400)

$5.49

$

In Stock, only 2 left!

0

70

Gravely 014118

Plt, Single Ledger
(Superseded to 20155300)

$

$

Not available

71

Gravely 023282

Blt, Plow .44-14 x 1.75
(Superseded to 07021800)

$

$

Not available

72

Gravely 010112

Grd, Right
(Superseded to 08578900)

$

$

Not available

73

Gravely 010111

Grd, Left
(Superseded to 08578800)

$

$

Not available

Gravely 040596

Knf, Asm 42-3 In Knife
(Superseded to 08542400)

$

$

Not available
