885015 - Gravely 44" Power Brush for Tractor (SN: 000101 & Above) Controls Parts Diagram

44" Power Brush for Tractor

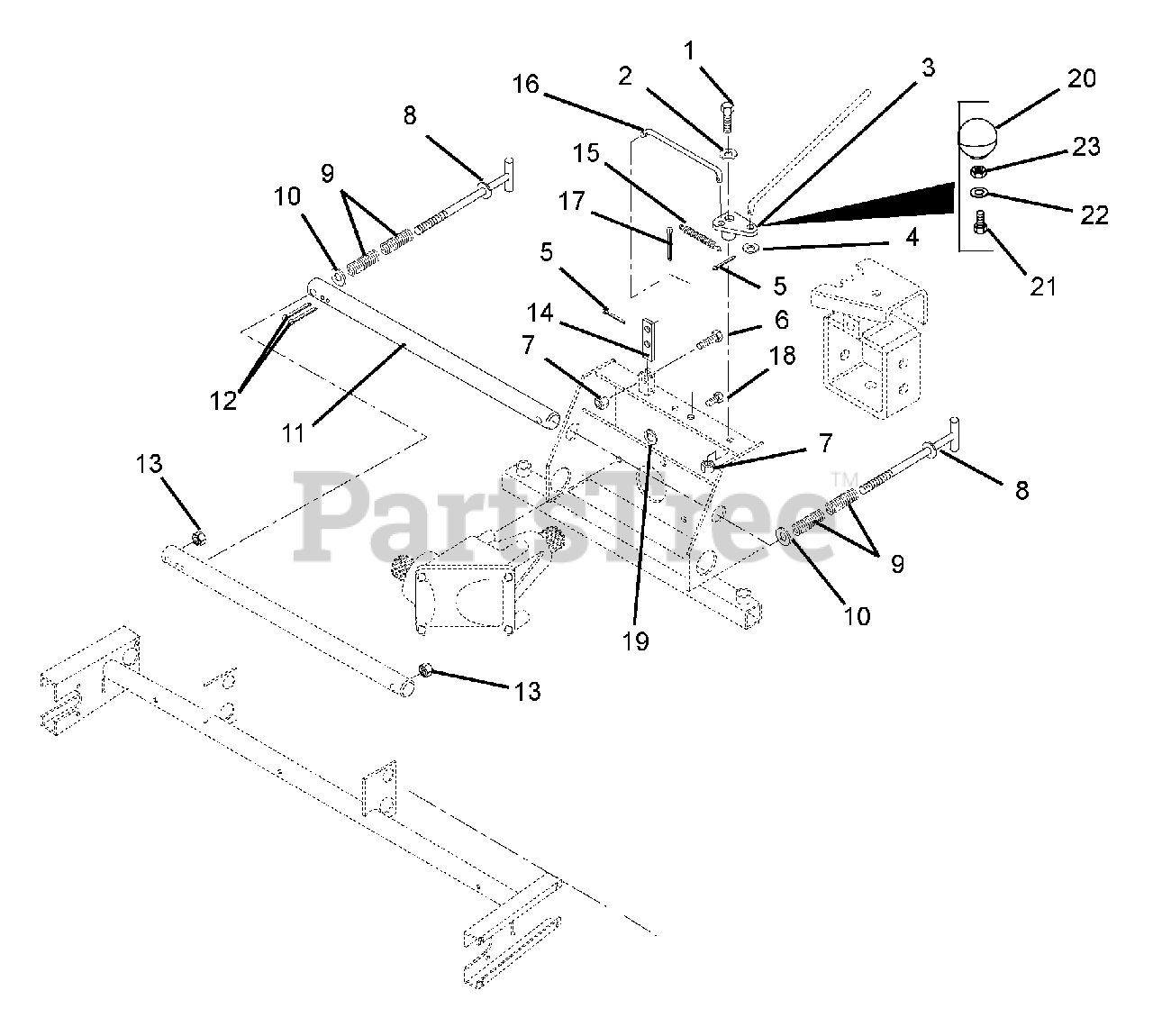

Controls Parts Diagram

  • Title

1

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 15

0

2

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 019261

Weldment-Bracket
(Superseded to 08508300)

$

$

Not available

4

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

Note: (Two- & Four-Wheel Tractors Only)

$0.99

$

In Stock, only 3 left!

0

5

Gravely 06707300

Pin-Cotter.125 x.750

Note: (Two- & Four-Wheel Tractors Only)

$0.99

$

In Stock, only 3 left!

0

6

Gravely 05957900

Bolt-Hex.38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 7

0

7

Gravely 06529800

Nut-Locking-Center.31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 019278

Weldment-Rod
(Superseded to 08509500)

$157.99

$

Usually ships in 4-12 days

0

9

Gravely 011779

Spring-Compression.125 x.78 x 1.00
(Superseded to 08327000)

$16.99

$

In Stock, only 4 left!

0

10

Gravely 06442000

Washer-Flat-Steel.563 x 1.38 x.109
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 019276

Anchor, Adjustment
(Superseded to 08509300)

$

$

Not available

12

Gravely 06714300

Pin-Cotter .125 x 1.50

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 019264

Plate-Locking
(Superseded to 08508500)

$51.99

$

Usually ships in 4-12 days

0

15

Gravely 015353

Spring, Tension .075 x .75 x 2.25
(Superseded to 08327600)

$17.99

$

In Stock, only 1 left!

0

16

Gravely 019266

Rod-Linkage
(Superseded to 08600800)

$43.99

$

Usually ships in 4-12 days

0

17

Gravely 414218

Pin-Cotter .375 x 1.375
(Superseded to 06706400)

$

$

Not available

18

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, Qty 8

0

19

Gravely 06307300

Washer, Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, only 2 left!

0

20

Gravely 07515900

Knob

Note: (Rapid Units Only)

$22.99

$

In Stock, only 1 left!

0

21

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

Note: (Rapid Units Only)

$2.99

$

In Stock, Qty 6

0

22

Gravely 06436700

Washer, Flat, Steel .323 x .625 x .062
(Superseded to 06401002)

Note: (Rapid Units Only)

$1.49

$

Usually ships in 4-12 days

0

23

Gravely 06530400

Nut, Spin Lock, Flange .312-18
(Superseded to 06500815)

Note: (Rapid Units Only)

$1.99

$

In Stock, Qty 20+

0
