885015 - Gravely 44" Power Brush for Tractor (SN: 000101 & Above) Drive And Brush Parts Diagram

44" Power Brush for Tractor

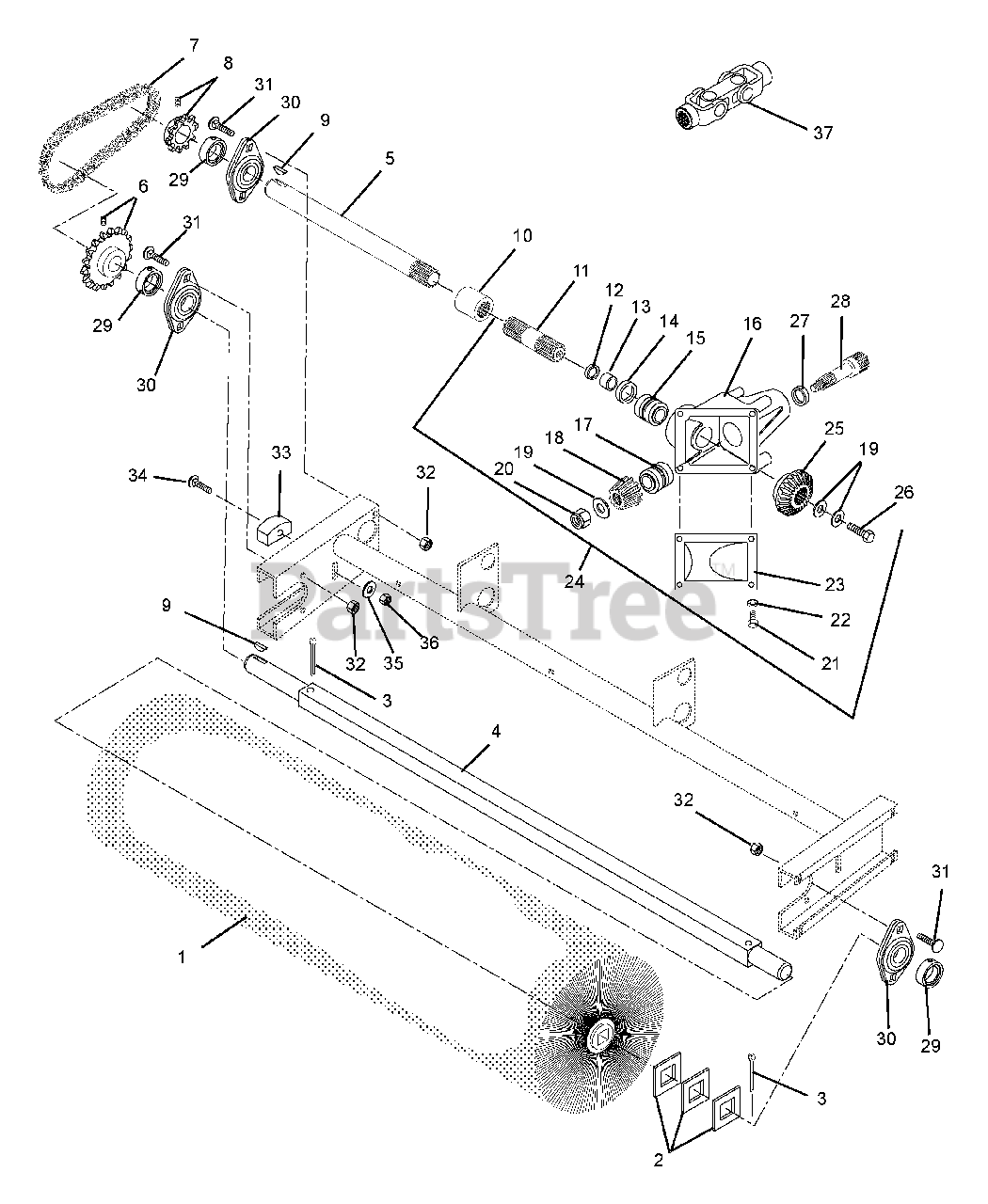

Drive And Brush Parts Diagram

  • Title

1

Gravely 022115

Brush-44"
(Superseded to 08518600)

$646.99

$

Usually ships in 4-12 days

0

2

Gravely 022117

Spacer-Square 1.010 x 2.000 x .125
(Superseded to 08518800)

$16.99

$

Usually ships in 4-12 days

0

3

Gravely 06713100

Pin-Cotter .25 x 2.00
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 022116

Shaft-Power Brush
(Superseded to 08518700)

$258.99

$

Usually ships in 4-12 days

0

5

Gravely 019275

Shaft
(Superseded to 08509200)

$89.99

$

Usually ships in 4-12 days

0

6

Gravely 019287

Sprocket
(Superseded to 08509900)

$171.99

$

Usually ships in 4-12 days

0

7

Gravely 019288

Chain-Roller
(Superseded to 08601400)

$83.99

$

In Stock, only 1 left!

0

8

Gravely 019282

Sprocket
(Superseded to 08509800)

$87.99

$

Usually ships in 4-12 days

0

9

Gravely 06601200

Key-Woodruff .25 x .750 x .313 SAE 91

$2.99

$

In Stock, only 4 left!

0

10

Gravely 019272

Coupling 1.6 x 1.37
(Superseded to 07017100)

$55.99

$

Usually ships in 4-12 days

0

11

Gravely 014637

Shaft-Drive
(Superseded to 08502700)

$155.99

$

Usually ships in 4-12 days

0

12

Gravely 014642

Ring-Retaining-External 1.106 x .95
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 014641

Bushing, Flange 1.00 x 1.25 x 1.25
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

14

Gravely 014646

Seal 1.250 x 1.983 x .250
(Superseded to 05613700)

$14.99

$

In Stock, only 3 left!

0

15

Gravely 014640

Bearing Assembly 1.000 x 1.980 x 1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

16

Gravely 014636

Casting-Gear Box
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

17

Gravely 014644

Bearing Assembly .75 x 1.781 x 1.499
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

18

Gravely 011831

Gear-Bevel
(Superseded to 08585800)

$266.99

$

Usually ships in 4-12 days

0

19

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06512100

Nut-Lock .50-20 UNF
(Superseded to 06544000)

$5.99

$

In Stock, only 1 left!

0

21

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

22

Gravely 06308400

Washer-Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

23

Gravely 010982

Cover-Gear Housing
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

24

Gravely 08570200

Assembly-Gear Box

$1289.99

$

Usually ships in 4-12 days

0

25

Gravely 08790300

Gear-Belevel

$240.99

$

Usually ships in 4-12 days

0

26

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 019321

Seal-Oil 1.000 x 1.690 x .250
(Superseded to 05615500)

$23.99

$

Usually ships in 4-12 days

0

28

Gravely 019268

Shaft
(Superseded to 08508800)

$135.99

$

Usually ships in 4-12 days

0

29

Gravely 046316

Bearing w/ Collar 1.00 x 2.047 x .844
(Superseded to 05426200)

$45.99

$

In Stock, only 3 left!

0

30

Gravely 046315

Flange-Mounting 2-Hole 52mm x 3.75
(Superseded to 05426100)

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

32

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

33

Gravely 019274

Block, Tension
(Superseded to 08509100)

$35.99

$

Usually ships in 4-12 days

0

34

Gravely 06222900

Bolt-Round Head Square Neck .25-20 x 2.00

$1.49

$

In Stock, only 1 left!

0

35

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

36

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 011967

Assembly, Double Universal Joint
(Superseded to 08587200)

$452.99

$

Usually ships in 4-12 days

0
