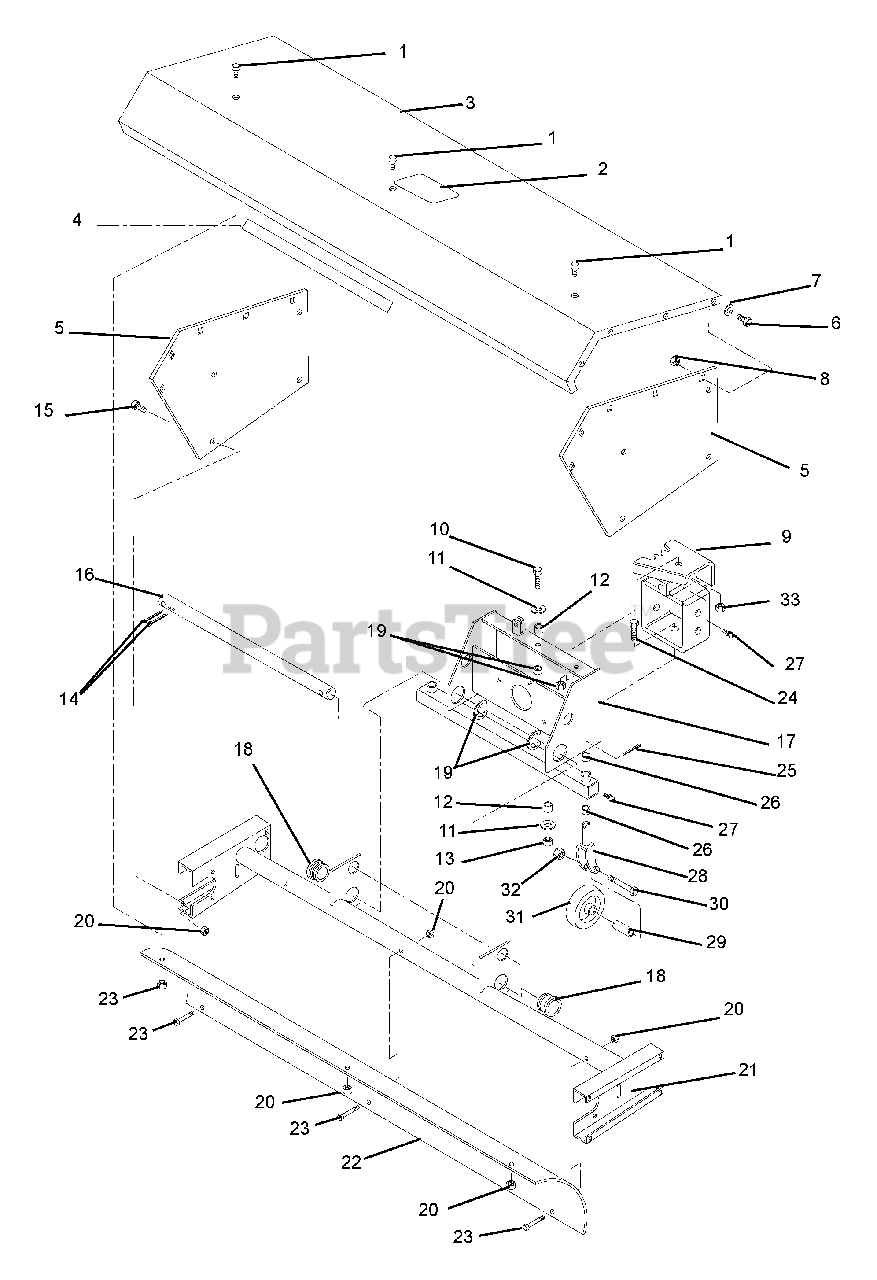

885015 - Gravely 44" Power Brush for Tractor (SN: 000101 & Above) Frame, Guards, And Wheels Parts Diagram

44" Power Brush for Tractor

Frame, Guards, And Wheels Parts Diagram

  • Title

1

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

2

Gravely 019479

DECAL,CAUTION
(Superseded to 05200700)

$

$

Not available

3

Gravely 019290

HOOD,
(Superseded to 08510053)

$125.99

$

Usually ships in 4-12 days

0

4

Gravely 02460800

G-DECAL, GRAVLEY LOGO

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 019291

PLT,SIDE
(Superseded to 08510153)

$57.99

$

Usually ships in 4-12 days

0

6

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

9

Gravely 022166

WLDMT,PIVOT POWER BRUSH
(Superseded to 08519200)

$461.99

$

Usually ships in 4-12 days

0

10

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

11

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 019260

BUSH.,S.532X.750X.550 ST
(Superseded to 08713700)

$32.99

$

Usually ships in 4-12 days

0

13

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

14

Gravely 06714300

PIN-CTR .12X1.50 EXTPRSQCT YZ

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 019277

ANCHOR, ADJUSTABLE THREADED
(Superseded to 08509400)

$44.99

$

Usually ships in 4-12 days

0

17

Gravely 019251

WLDMT,PIVOT FRAME
(Superseded to 08507500)

$

$

Not available

18

Gravely 019269

BUSH.,F1.38X1.62X1.25 ST
(Superseded to 08557900)

$56.99

$

Usually ships in 4-12 days

0

19

Gravely 019270

RG-RTNG-EXT 1.375X.062 TYPE-E
(Superseded to 05713400)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 023192

FRM,BRUSH SUPPORT
(Superseded to 08527500)

$

$

Not available

22

Gravely 019292

SHIELD,
(Superseded to 08510253)

$64.99

$

Usually ships in 4-12 days

0

23

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$4.99

$

In Stock, Qty 20+

0

25

Gravely 06712600

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 011375

BSHG-SLV .752X.877X.75 BRONZE
(Superseded to 05518500)

$7.99

$

In Stock, only 2 left!

0

27

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

28

Gravely 011385

WLDMT, CASTER FORK
(Superseded to 08585053)

$122.99

$

In Stock, only 2 left!

0

29

Gravely 011387

BUSH.,S.516X.745X2.59 ST
(Superseded to 08585100)

$24.99

$

Usually ships in 4-12 days

0

30

Gravely 05960100

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.49

$

In Stock, only 2 left!

0

31

Gravely 011386

WHL-CASTER
(Superseded to 07132800)

$81.99

$

Usually ships in 4-12 days

0

32

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

33

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0
