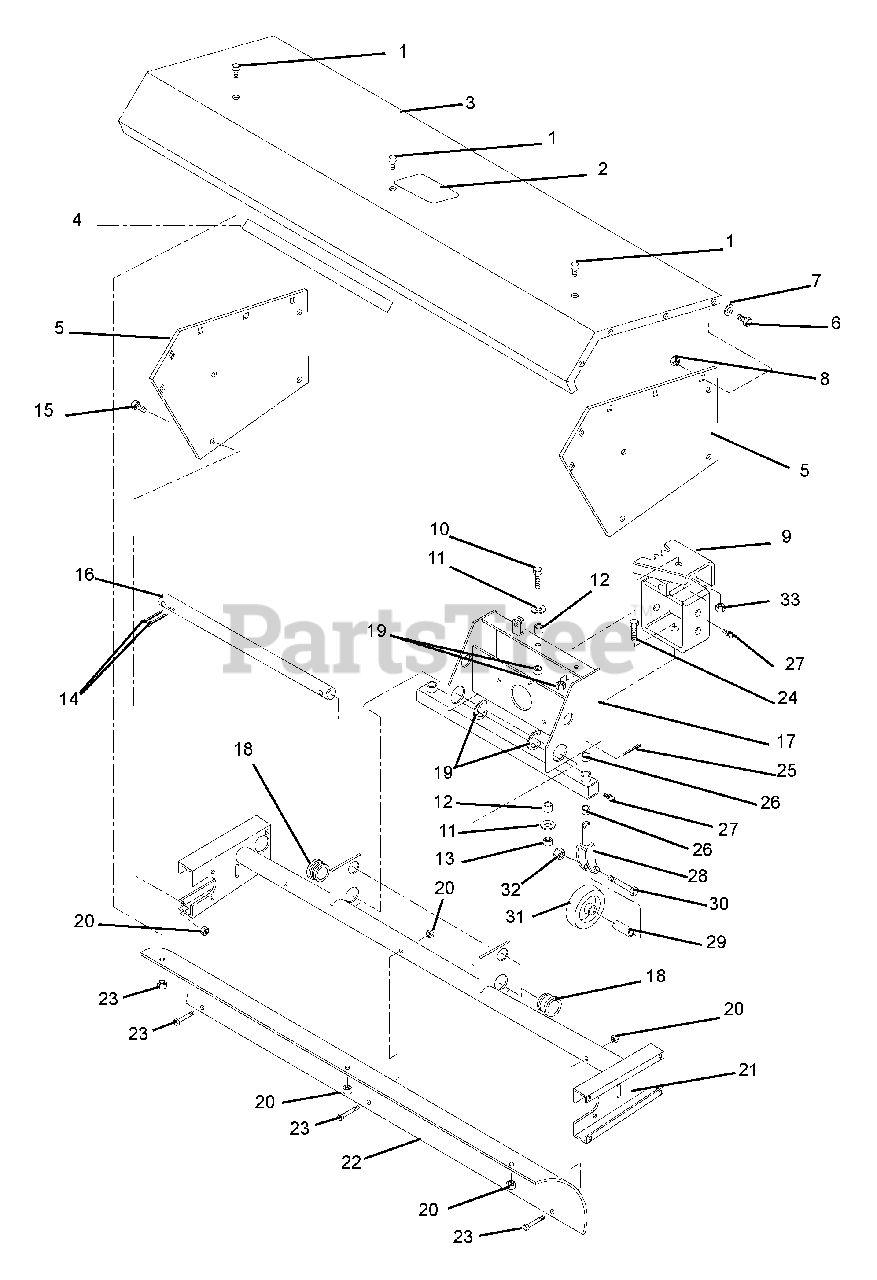

885015 - Gravely 44" Power Brush for Tractor (SN: 000101 & Above) Frame, Guards, And Wheels Parts Diagram

44" Power Brush for Tractor

Frame, Guards, And Wheels Parts Diagram

  • Title

1

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

2

Gravely 019479

Decal-Caution
(Superseded to 05200700)

$

$

Not available

3

Gravely 019290

Hood
(Superseded to 08510053)

$122.99

$

Usually ships in 4-12 days

0

4

Gravely 02460800

Decal-Gravely Logo

$28.99

$

Usually ships in 4-12 days

0

5

19291

Plate-Side

$

$

Not available

6

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

7

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

8

Gravely 06530200

Nut-Locking-Center .31-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 022166

Weldment, Power Brush Pivot
(Superseded to 08519200)

$452.99

$

Usually ships in 4-12 days

0

10

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06441900

Washer, Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 019260

Bushing, Sleeve .532 x .750 x .550
(Superseded to 08713700)

$30.99

$

Usually ships in 4-12 days

0

13

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

14

6714300

Pin, Cotter .12 x 1.50

$

$

Not available

15

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

16

Gravely 019277

Anchor-Threaded Adjustment
(Superseded to 08509400)

$43.99

$

Usually ships in 4-12 days

0

17

Gravely 019251

Weldment, Pivot Frame
(Superseded to 08507500)

$

$

Not available

18

Gravely 019269

Bushing, Flange 1.38 x 1.62 x 1.25
(Superseded to 08557900)

$54.99

$

Usually ships in 4-12 days

0

19

Gravely 019270

Ring-Retaining-External 1.880 x .062
(Superseded to 05713400)

$3.49

$

In Stock, only 1 left!

0

20

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 023192

Frame-Brush Support
(Superseded to 08527500)

$

$

Not available

22

Gravely 019292

Shield
(Superseded to 08510253)

$62.99

$

Usually ships in 4-12 days

0

23

Gravely 05956700

Bolt-Hex .25-20 x 2.25 Grade 5
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 05970600

Bolt-Hex .50-13 x 1.75 Grade 5
(Superseded to 05901939)

$3.99

$

In Stock, Qty 7

0

25

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 7

0

26

Gravely 011375

Bushing-Sleeve, .752 x .877 x .75 Bronze
(Superseded to 05518500)

$7.49

$

Usually ships in 4-12 days

0

27

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

28

Gravely 011385

Weldment, Caster Fork
(Superseded to 08585053)

$120.99

$

In Stock, only 2 left!

0

29

Gravely 011387

Bushing, Sleeve .515 x .745. x 2.59
(Superseded to 08585100)

$23.99

$

Usually ships in 4-12 days

0

30

Gravely 05960100

Bolt, Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

In Stock, only 1 left!

0

31

Gravely 011386

Wheel-Caster
(Superseded to 07132800)

$79.99

$

Usually ships in 4-12 days

0

32

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

33

Gravely 06528200

Nut-Locking-Cone .50-13

$3.99

$

In Stock, only 2 left!

0
