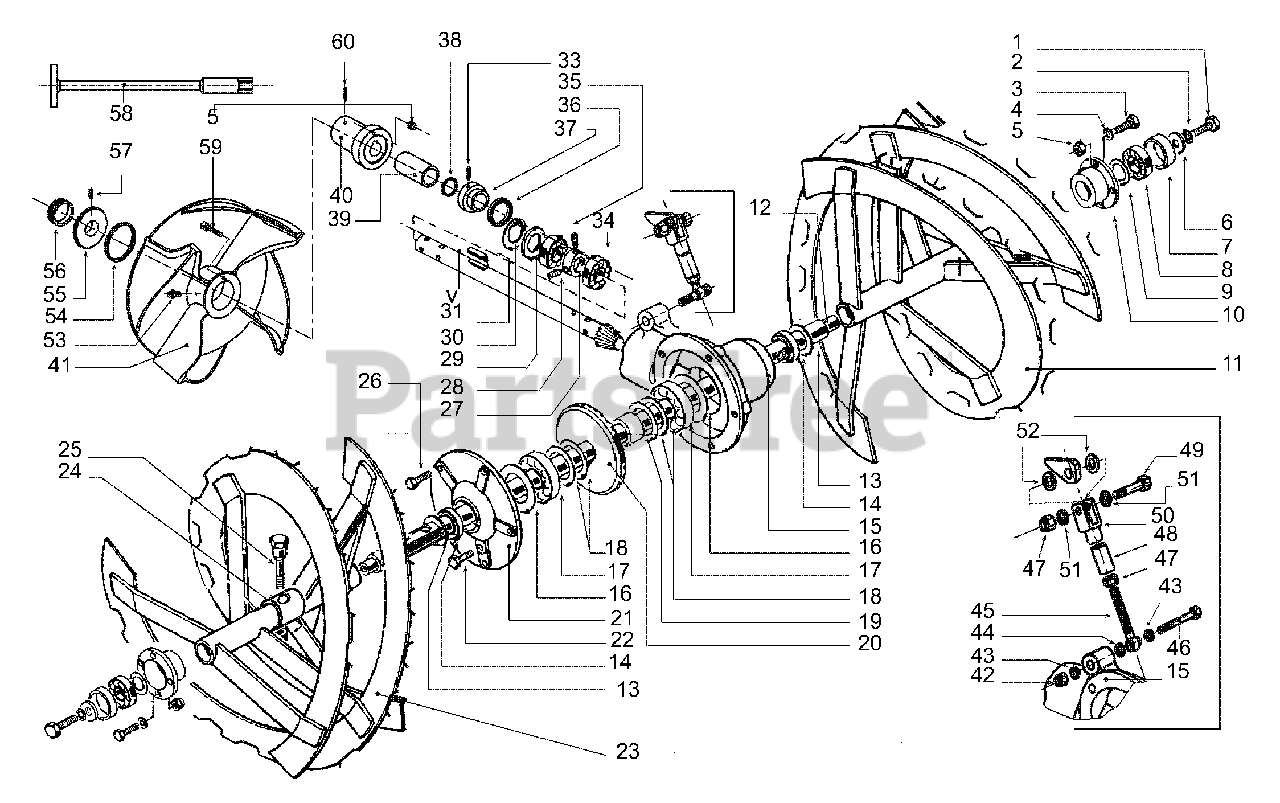

885042 - Gravely Rapid Sno-Thro Attachment Auger And Impeller Parts Diagram

Rapid Sno-Thro Attachment

Auger And Impeller Parts Diagram

  • Title

1

Gravely 00820800

HEXAGONAL HEAD SCREW M8 X 25 -

$

$

Not available

2

Gravely 00820900

INNER DENTICULATED WASHER M8 -

$

$

Not available

3

Gravely 00821000

HEXAGONAL HEAD SCREW M6 X 20 -

$

$

Not available

4

Gravely 00821100

WASHER 6,6 X 18 X 2 - UNI 6593

$

$

Not available

5

Gravely 00816500

SELF LOCKING NUT M6 - DIN 982

$

$

Not available

6

Gravely 00821200

WASHER 8,5 X 28 X 5

$

$

Not available

7

Gravely 00821300

DISTANCE RING 41 X 46,5 X 13

$

$

Not available

8

Gravely 00821400

BEARING 6204 2RS 20 X 47 X 14

$

$

Not available

9

Gravely 00821500

RING 20,3 X 37,5 X 0,3

$

$

Not available

10

Gravely 00821600

SUPPORT FOR AUGER SHAFT

$

$

Not available

11

Gravely 00821700

RIGHT AUGER

$

$

Not available

12

Gravely 00821800

AUGER SHAFT

$

$

Not available

13

Gravely 00821900

WASHER 30,3X45X2

$

$

Not available

14

Gravely 00822000

OIL SEAL 30 X 45 X 8

$

$

Not available

15

Gravely 00822100

GEAR BOX

$

$

Not available

16

Gravely 00822200

RING 40 X 61,5 X 1

$

$

Not available

17

Gravely 00822300

BEARING 62046 ZZ - 30 X 62 X

$

$

Not available

18

Gravely 00822400

RING 30,5 X 50 X 0,2

$

$

Not available

19

Gravely 00822500

DISTANCE RING 30 X 40 X 25

$

$

Not available

20

Gravely 00822600

GEAR WHEEL

$

$

Not available

21

Gravely 00822700

GEAR BOX COVER

$

$

Not available

22

Gravely 00822800

HEXAGONAL HEAD SCREW M8X 16 -

$

$

Not available

23

Gravely 00822900

LEFT AUGER

$

$

Not available

24

Gravely 00819200

SELF LOCKING NUT M10 - DIN 982
(Superseded to 08628600)

$

$

Not available

25

Gravely 08696400

SCREW, SAFETY WITH NUT

$

$

Not available

26

Gravely 00823000

HEXAGONAL HEAD SCREW M8X35 -

$

$

Not available

27

Gravely 00823100

FASTENING RING 25 X 37 X 15

$

$

Not available

28

Gravely 00823200

GRUB - SCREW M8 X 8 - DIN

$

$

Not available

29

Gravely 00823300

DISTANCE RING 38 X 51,8 X 3,3

$

$

Not available

30

Gravely 00823400

SNAP RING 52 - DIN 472-1

$

$

Not available

31

Gravely 00823500

KEY 8 X 7 X 30

$

$

Not available

32

Gravely 00823600

PINION

$

$

Not available

33

Gravely 00823700

GRUB - SCREW M8 X 10

$

$

Not available

34

Gravely 00823800

BEARING 3205 2RS - 25 X 52 X

$

$

Not available

35

Gravely 00823900

BEARING 6205 2RS - 25 X 52 X

$

$

Not available

36

Gravely 00824000

OIL SEAL 35 X 52 X 7

$

$

Not available

37

Gravely 00824100

GUARD RING FOR OIL SEAL

$

$

Not available

38

Gravely 00824200

O-RING 132

$

$

Not available

39

Gravely 00824300

SPACING BAR

$

$

Not available

40

Gravely 00824400

HUB

$

$

Not available

41

Gravely 00824500

SECOND STAGE IMPELLER (370 MM

Note: (Ø 370 mm. Left Hand, 3 Buckets)

$

$

Not available

42

Gravely 00824600

SELF LOCKING NUT M10 - DIN 985

$

$

Not available

43

Gravely 00824700

WASHER 10,5 X 21 X 2 - DIN125A

$

$

Not available

44

Gravely 00824800

WASHER 10,5 X 21 X 1

$

$

Not available

45

Gravely 00824900

EYE TIE ROD M12 X 95 - HOLE 10

$

$

Not available

46

Gravely 00825000

HEXAGONAL HEAD SCREW M10 X 53

$

$

Not available

47

Gravely 00825100

SELF LOCKING NUT M12 - DIN 985

$

$

Not available

48

Gravely 00825200

SPACER 12,4 X 20 X 38

$

$

Not available

49

Gravely 00825300

HEXAGONAL HEAD SCREW M12 X 43

$

$

Not available

50

Gravely 00825400

CLEVIS M12

$

$

Not available

51

Gravely 00820000

WASHER 13 X 24 X 2,5 DIN 125A

$

$

Not available

52

Gravely 00825500

WASHER 13 X 28 X 1

$

$

Not available

53

Gravely 00825600

GREASE NIPPLE M8

$

$

Not available

54

Gravely 00825700

OR 165

$

$

Not available

55

Gravely 00825800

DISTANCE RING

$

$

Not available

56

Gravely 00825900

V. RING A 38

$

$

Not available

57

Gravely 00826000

GRUB-SCREW M8 X 6 - UNI 5923

$

$

Not available

58

Gravely 00865400

HEXAGONAL SOCKET WRENCH (10MM)

Note: (10mm)

$

$

Not available

59

Gravely 00816200

HEX HEAD SCREW M6X35 - DIN 931

$

$

Not available

60

Gravely 00826100

GRUB-SCREW M12-1,25 X 9

$

$

Not available
