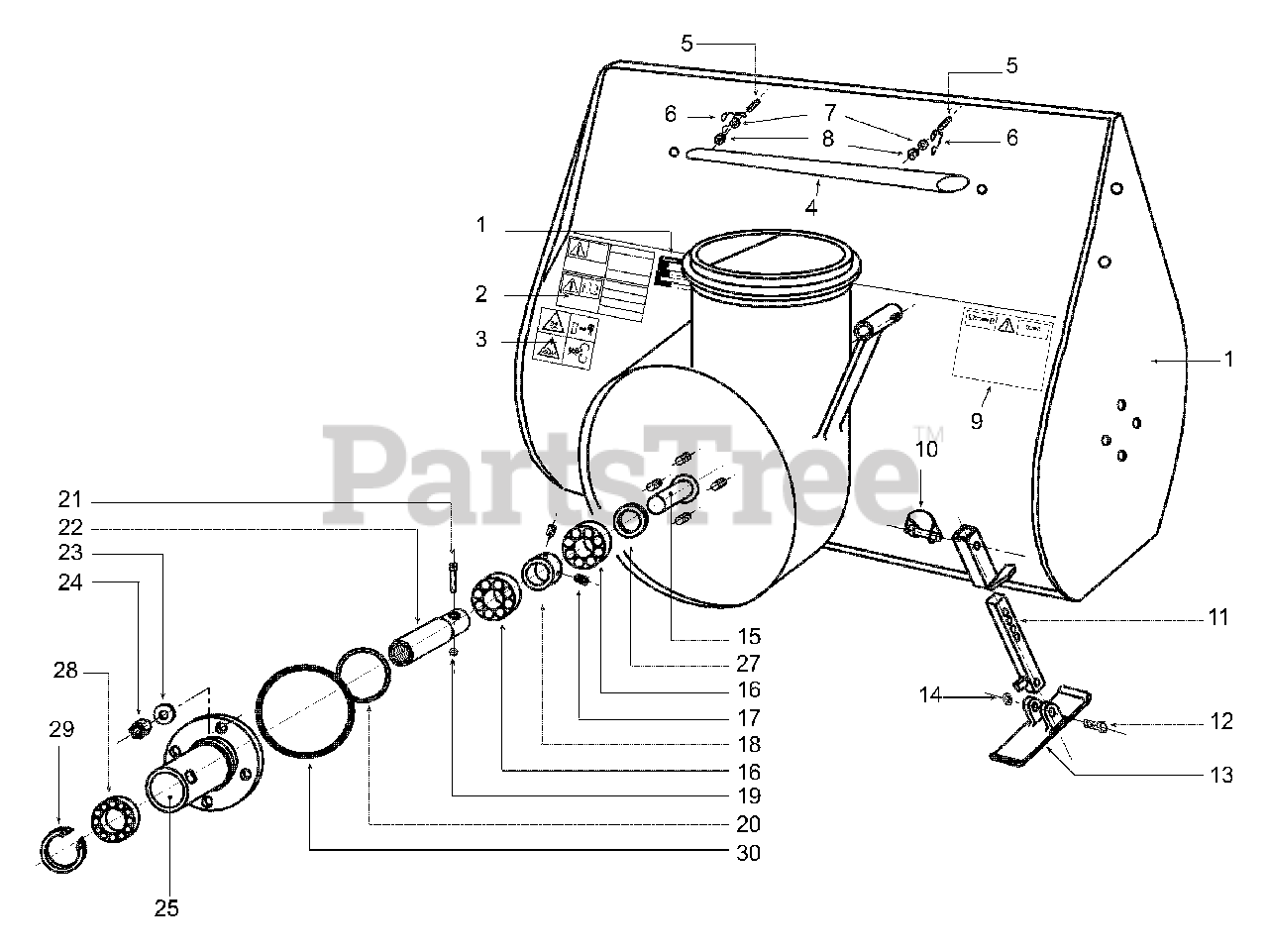

885042 - Gravely Rapid Sno-Thro Attachment Auger Housing And Drive Parts Diagram

Rapid Sno-Thro Attachment

Auger Housing And Drive Parts Diagram

  • Title

1

Gravely 00818100

LABEL - "MACHINE DATA"

$

$

Not available

2

Gravely 00818200

LABEL - "INSTRUCTION MANUAL AN

$

$

Not available

3

Gravely 00818300

LABEL - "SAFETY DISTANCE AND R

$

$

Not available

4

Gravely 00818400

STICK FOR CLOGGING REMOVING

$

$

Not available

5

Gravely 00818500

HEXAGONAL HEAD SCREW M6 X 15 -

$

$

Not available

6

Gravely 00818600

SPRING FOR STICK CLAMPING

$

$

Not available

7

Gravely 00818700

WASHER 5,5 X 10 X 1 - DIN 125A

$

$

Not available

8

Gravely 00816500

SELF LOCKING NUT M6 - DIN 982

$

$

Not available

9

Gravely 00818800

LABEL - "SAFETY BOLT REPLACEME

$

$

Not available

10

Gravely 00818900

FAST PIN 8 X 45

$

$

Not available

11

Gravely 00819000

ADJUSTABLE ROD FOR SLIDE

$

$

Not available

12

Gravely 00819100

HEXAGONAL HEAD SCREW M10 X 45

$

$

Not available

13

Gravely 08696300

SHOE, SLIDE

$

$

Not available

14

Gravely 00819200

SELF LOCKING NUT M10 - DIN 982
(Superseded to 08628600)

$

$

Not available

15

Gravely 00819300

PINION

$

$

Not available

16

Gravely 00819400

BEARING 6305 2RS - 25 X 62 X

$

$

Not available

17

Gravely 00819500

GRUB - SCREW M8 X 10 - DIN

$

$

Not available

18

Gravely 00819600

FASTENING RING 25 X 37 X 11

$

$

Not available

19

Gravely 00819700

NUT M8 - DIN 934

$

$

Not available

20

Gravely 00819800

O-RING 162 - 59 X 3,53

$

$

Not available

21

Gravely 00869000

BOLT, SAFETY FOR COUPLING BOX

$

$

Not available

22

Gravely 00819900

COUPLING BOX (POWER TAKE OFF)

Note: (Power Take Off)

$

$

Not available

23

Gravely 00820000

WASHER 13 X 24 X 2,5 DIN 125A

$

$

Not available

24

Gravely 00820100

SELF LOCKING NUT M10 - DIN 982

$

$

Not available

25

Gravely 00820200

FLANGE ( 4 HOLES 12)

Note: (4 Holes Ø12)

$

$

Not available

26

Gravely 00820300

LABEL - "RAPID"

$

$

Not available

27

Gravely 00820400

DISTANCE RING 25,5 X 35 X 2,5

$

$

Not available

28

Gravely 00820500

BEARING 6007 2RS - 35 X 62 X14

$

$

Not available

29

Gravely 00820600

SNAP RING 62 - DIN 472-1

$

$

Not available

30

Gravely 00820700

O-RING 4550

$

$

Not available
