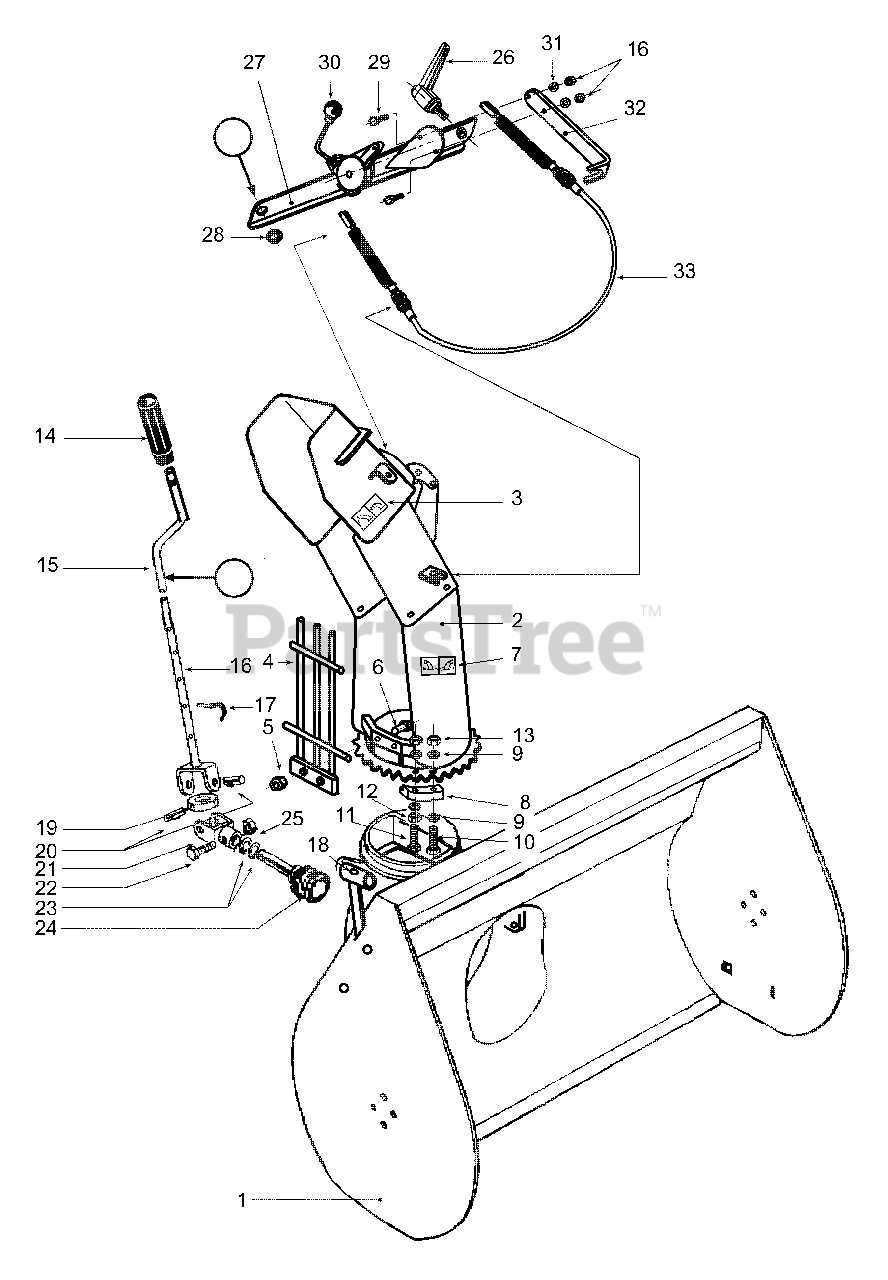

885042 - Gravely Rapid Sno-Thro Attachment Discharge Chute And Controls Parts Diagram

Rapid Sno-Thro Attachment

Discharge Chute And Controls Parts Diagram

  • Title

1

Gravely 00814200

SNOWTHROWER MAIN BODY, 85CM WD

$

$

Not available

2

Gravely 00814300

EJECTION CHIMNEY

$

$

Not available

3

Gravely 00814400

LABEL - "FLAP UP/DOWN"

$

$

Not available

4

Gravely 00865200

CHIMNEY SAFETY GUARD

$

$

Not available

5

Gravely 00814600

SELF LOCKING NUT M8 - DIN 985

$

$

Not available

6

Gravely 00814700

HEX HEAD SCREW M8X30 - DIN 933

$

$

Not available

7

Gravely 00814800

LABEL - "CHIMNEY ROTATION"

$

$

Not available

8

Gravely 00814900

ALUNINIUM BLOCK

$

$

Not available

9

Gravely 00815000

WASHER 6,4 X 12 X 1,6 DIN 125A

$

$

Not available

10

Gravely 00815100

HEX HD SCREW M6 X 35 - DIN 933

$

$

Not available

11

Gravely 00815200

HEX HD SCREW M6 X 40 - DIN 933

$

$

Not available

12

Gravely 00815300

NUT M6 HAUT - UNI 5587

$

$

Not available

13

Gravely 00815400

SELF LOCKING NUT M6 - DIN 982

$

$

Not available

14

Gravely 00815500

GRIFF
(Superseded to 00816500)

$

$

Not available

15

Gravely 00814500

CHIMNEY SAFETY GUARD

$

$

Not available

16

Gravely 00815600

CRANK - ADJUSTABLE PART

$

$

Not available

17

Gravely 00815700

FAST PIN

$

$

Not available

18

Gravely 00815800

GREASE NIPPLE M6

$

$

Not available

19

Gravely 00815900

CROSS FOR CARDAN JOINT

$

$

Not available

20

Gravely 00816000

LOCK PIN 10 X 18 - DIN 1481

$

$

Not available

21

Gravely 00816100

CLEVIS FOR CARDAN JOINT

$

$

Not available

22

Gravely 00816200

HEX HEAD SCREW M6X35 - DIN 931

$

$

Not available

23

Gravely 00865300

WASHER, 20,25 X 28 X 0,3

$

$

Not available

24

Gravely 00816400

QUAD SCW, RHT HND FOR CHIM ROT

$

$

Not available

25

Gravely 00816500

SELF LOCKING NUT M6 - DIN 982

$

$

Not available

26

Gravely 00816600

GRIPPING LEVER M10 X 20

Note: (Mr80 Pm 10/20)

$

$

Not available

27

Gravely 00816700

BRCKT FOR CRANK AND THRTLE LVR

$

$

Not available

28

Gravely 00816800

PLASTIC RING

$

$

Not available

29

Gravely 00816300

WASHER 20,25 X 28 X 0,3

$

$

Not available

30

Gravely 00816900

THROTTLE LEVER FOR FLAP ADJUST

$

$

Not available

31

Gravely 00817000

WASHER 6,5 X 12 X 1 DIN 125A

$

$

Not available

32

Gravely 00817100

BRACKET FOR CABLE

$

$

Not available

33

Gravely 08696200

ASSY, ADJUSTING CABLE

Note: (Length: 1800 mm) For Flap Adjustment

$

$

Not available
