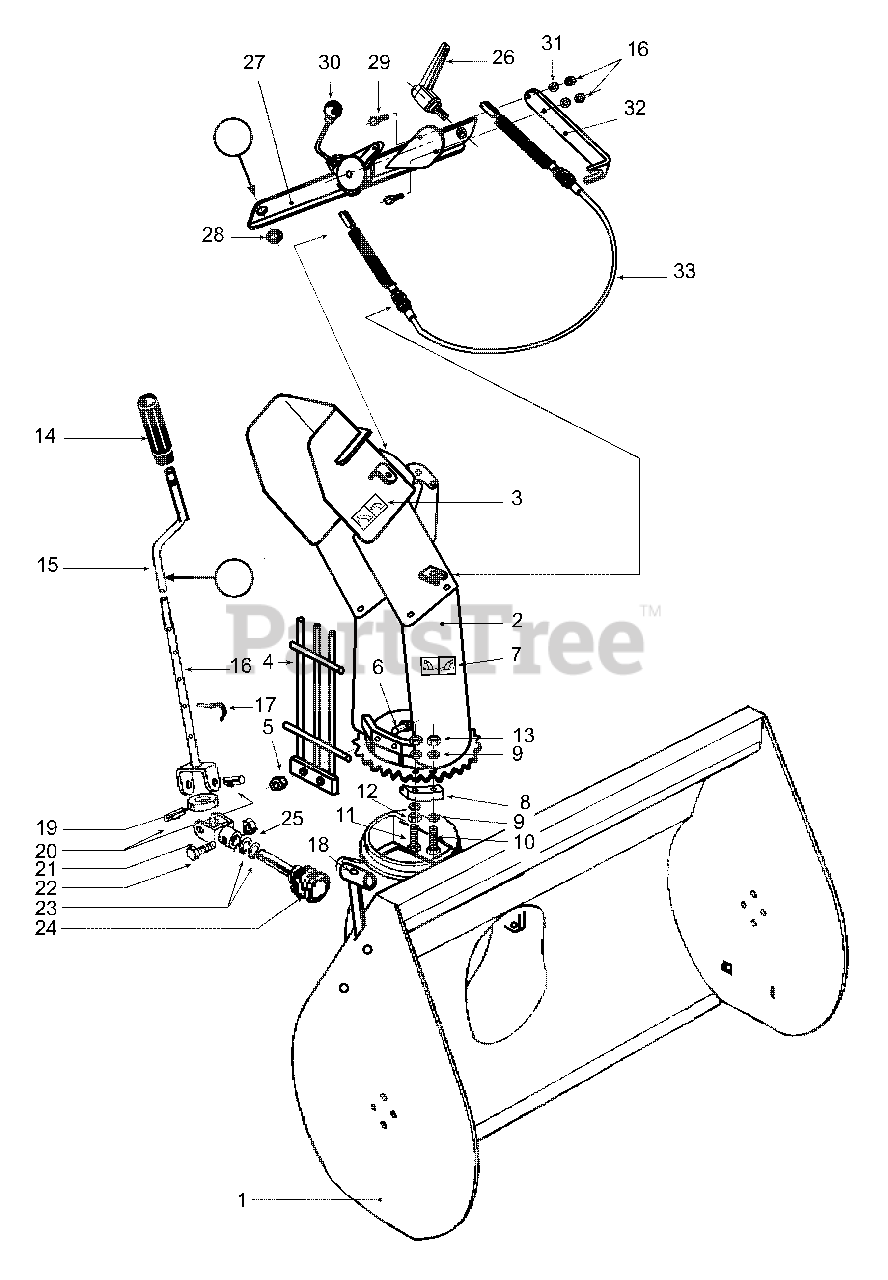

885042 - Gravely Rapid Sno-Thro Attachment Discharge Chute And Controls Parts Diagram

Rapid Sno-Thro Attachment

Discharge Chute And Controls Parts Diagram

  • Title

1

Gravely 00814200

Snow Thrower Main Body, 85 Cm Wide - SX 370

$

$

Not available

2

Gravely 00814300

Ejection Chimney

$

$

Not available

3

Gravely 00814400

Label - "Flap Up/Down"

$

$

Not available

4

Gravely 00865200

Chimney Safety Guard

$

$

Not available

5

Gravely 00814600

Self Locking Nut M8 - Din 985

$

$

Not available

6

Gravely 00814700

Hexagonal Head Screw M8 x 30 - Din 933

$

$

Not available

7

Gravely 00814800

Label - "Chimney Rotation"

$

$

Not available

8

Gravely 00814900

Aluminum Block

$

$

Not available

9

Gravely 00815000

Washer 6.4 x 12 x 1.6 Din 125a

$

$

Not available

10

Gravely 00815100

Hexagon Head Screw M6 x 35 - Din 933

$

$

Not available

11

Gravely 00815200

Hexagon Head Screw M6 x 40 - Din 933

$

$

Not available

12

Gravely 00815300

Nut M6 Haut - Uni 5587

$

$

Not available

13

Gravely 00815400

Self Locking Nut M6 - Din 982

$

$

Not available

14

Gravely 00815500

Griff
(Superseded to 00816500)

$

$

Not available

15

Gravely 00814500

Crank - Extractable Part

$

$

Not available

16

Gravely 00815600

Crank - Adjustable Part

$

$

Not available

17

Gravely 00815700

Fast Pin Ø 5

$

$

Not available

18

Gravely 00815800

Grease Nipple M6

$

$

Not available

19

Gravely 00815900

Cross For Cardan Joint

$

$

Not available

20

Gravely 00816000

Lok Pin 10 x 18 - Din 1481

$

$

Not available

21

Gravely 00816100

Clevis For Cardan Joint

$

$

Not available

22

Gravely 00816200

Hexagonal Head Screw M6 x 35 - Din 931

$

$

Not available

23

Gravely 00865300

Washer 20.25 x 28 x 0.3

$

$

Not available

24

Gravely 00816400

Quadruple Screw, Right Hand For Chimney Rotation

$

$

Not available

25

Gravely 00816500

Self Locking Nut M6 - Din 982

$

$

Not available

26

Gravely 00816600

Gripping Lever M10 x 20 (Mr80 Pm 10/20)

Note: (Mr80 Pm 10/20)

$

$

Not available

27

Gravely 00816700

Bracket For Crank And Throttle Lever

$

$

Not available

28

Gravely 00816800

Plastic Ring

$

$

Not available

29

Gravely 00816300

Screw M6 x 25 - Din 7991

$

$

Not available

30

Gravely 00816900

Throttle Lever For Flap Adjustment

$

$

Not available

31

Gravely 00817000

Washer 6.5 x 12 x 1 Din 125a

$

$

Not available

32

Gravely 00817100

Bracket For Cable

$

$

Not available

33

Gravely 08696200

Complete Cable (Length: 1800 mm) For Flap Adjustment

Note: (Length: 1800 mm) For Flap Adjustment

$

$

Not available
