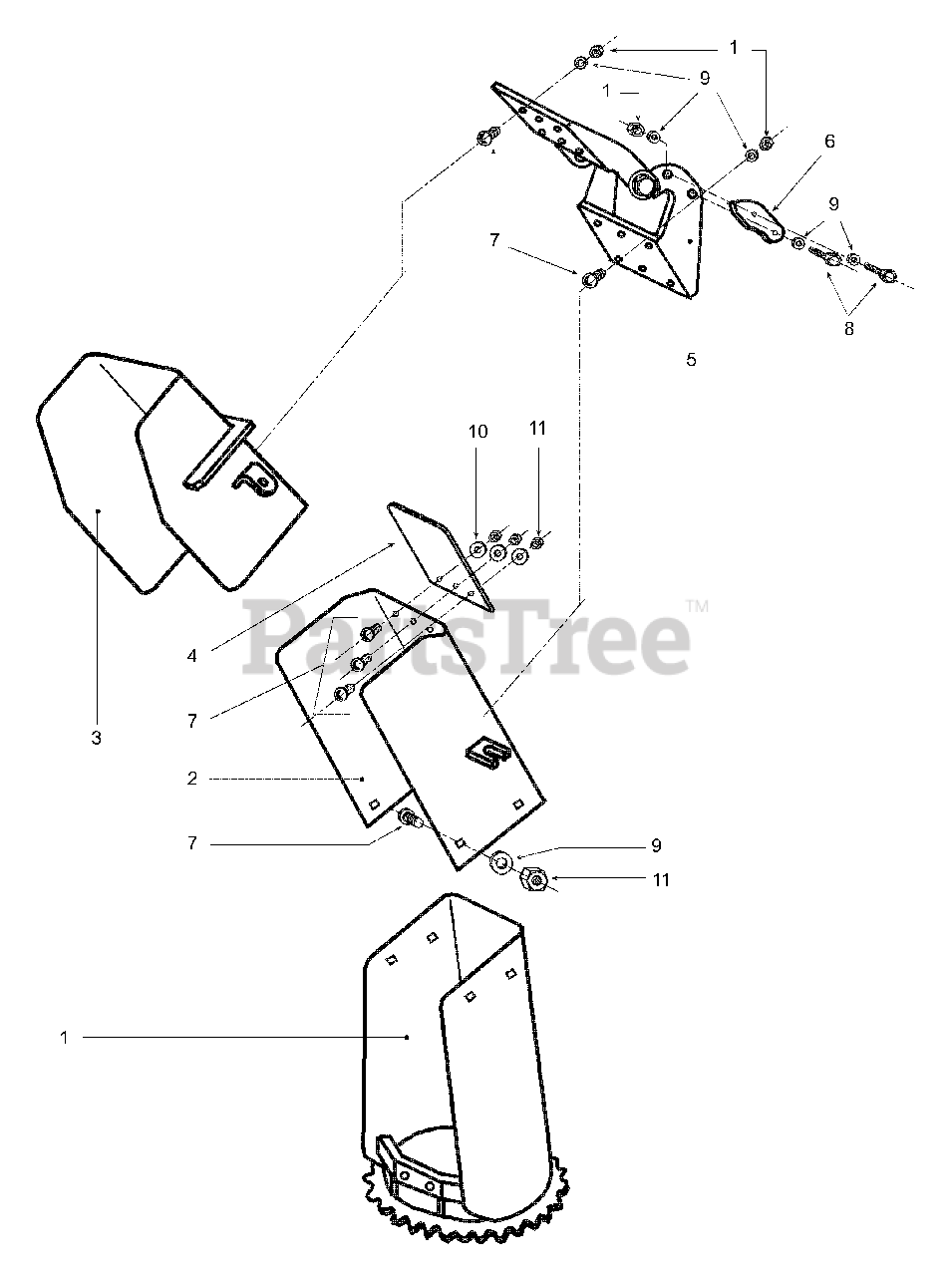

885042 - Gravely Rapid Sno-Thro Attachment Discharge Chute Deflector Parts Diagram

Rapid Sno-Thro Attachment

Discharge Chute Deflector Parts Diagram

  • Title

1

Gravely 00817200

EJECTION CHIMNEY

$

$

Not available

2

Gravely 00817300

INTERMEDIATE SECTOR

$

$

Not available

3

Gravely 00817400

ADJUSTABLE FLAP

$

$

Not available

4

Gravely 00817500

RUBBER PLATE

$

$

Not available

5

Gravely 00817600

COMPLETE HINGE FOR FLAP

$

$

Not available

6

Gravely 00817700

FLAP LIMIT STOP

$

$

Not available

7

Gravely 00817800

ROUNDHEADED SCREW M6X16 - DIN

$

$

Not available

8

Gravely 00817900

HEX HEAD SCREW M6X18 - DIN 933

$

$

Not available

9

Gravely 00815000

WASHER 6,4 X 12 X 1,6 DIN 125A

$

$

Not available

10

Gravely 00818000

WASHER 6,6X18X2 UNIT 6593

$

$

Not available

11

Gravely 00815400

SELF LOCKING NUT M6 - DIN 982

$

$

Not available
