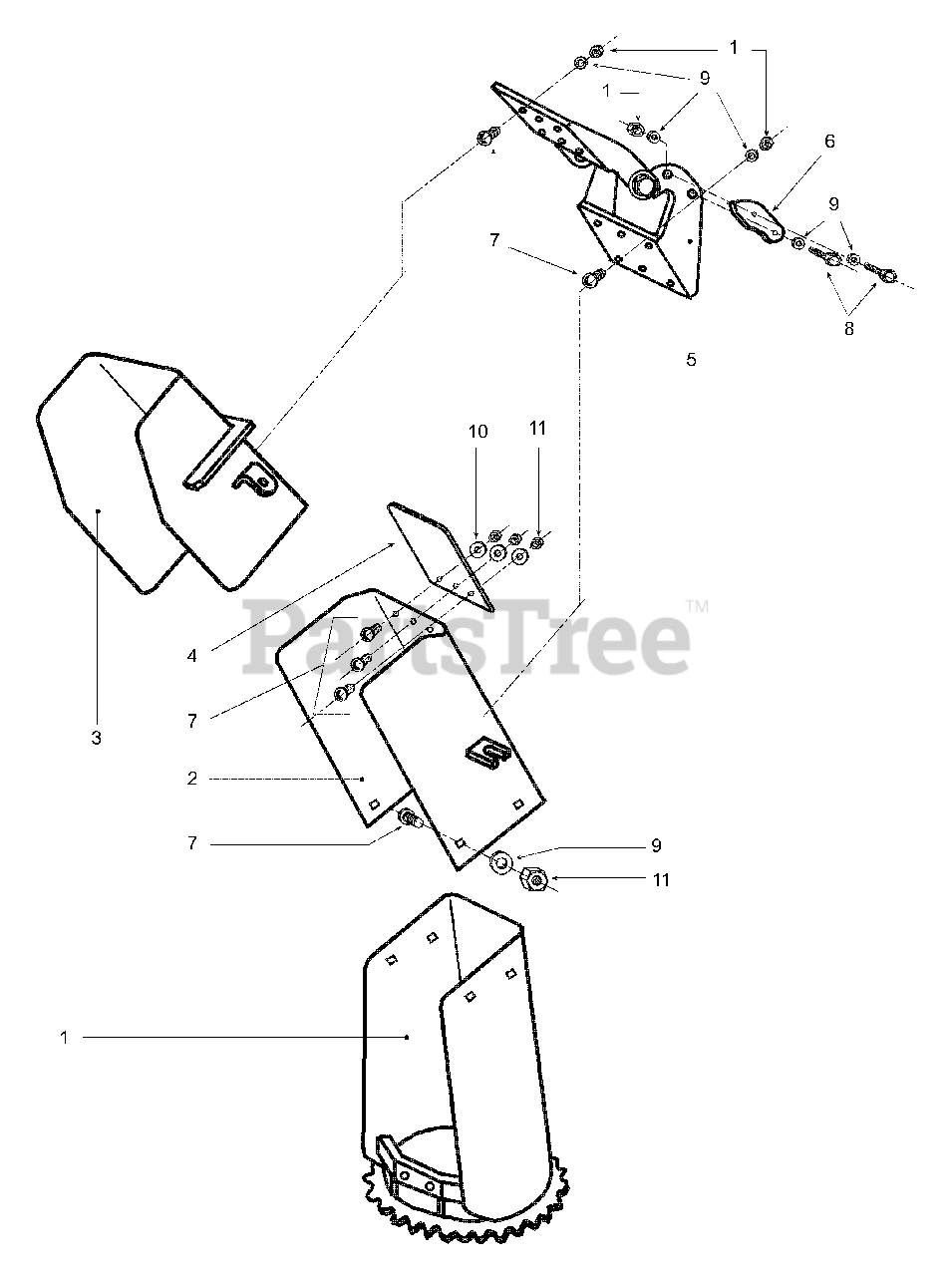

885042 - Gravely Rapid Sno-Thro Attachment Discharge Chute Deflector Parts Diagram

Rapid Sno-Thro Attachment

Discharge Chute Deflector Parts Diagram

  • Title

1

Gravely 00817200

Ejection Chimney

$

$

Not available

2

Gravely 00817300

Intermediate Sector

$

$

Not available

3

Gravely 00817400

Adjustable Flap

$

$

Not available

4

Gravely 00817500

Rubber Plate

$

$

Not available

5

Gravely 00817600

Complete Hinge For Flap

$

$

Not available

6

Gravely 00817700

Flap Limit Stop

$

$

Not available

7

Gravely 00817800

Roundhead Screw M6 x 16 - Din 603

$

$

Not available

8

Gravely 00817900

Hexagonal Head Screw M6 x 18 - Din 933

$

$

Not available

9

Gravely 00815000

Washer 6.4 x 12.5 x 1.6 - Din 125a

$

$

Not available

10

Gravely 00818000

Washer 6.6 x 18 x 2 Uni 6593

$

$

Not available

11

Gravely 00815400

Self Locking Nut M6 - Din 982

$

$

Not available
