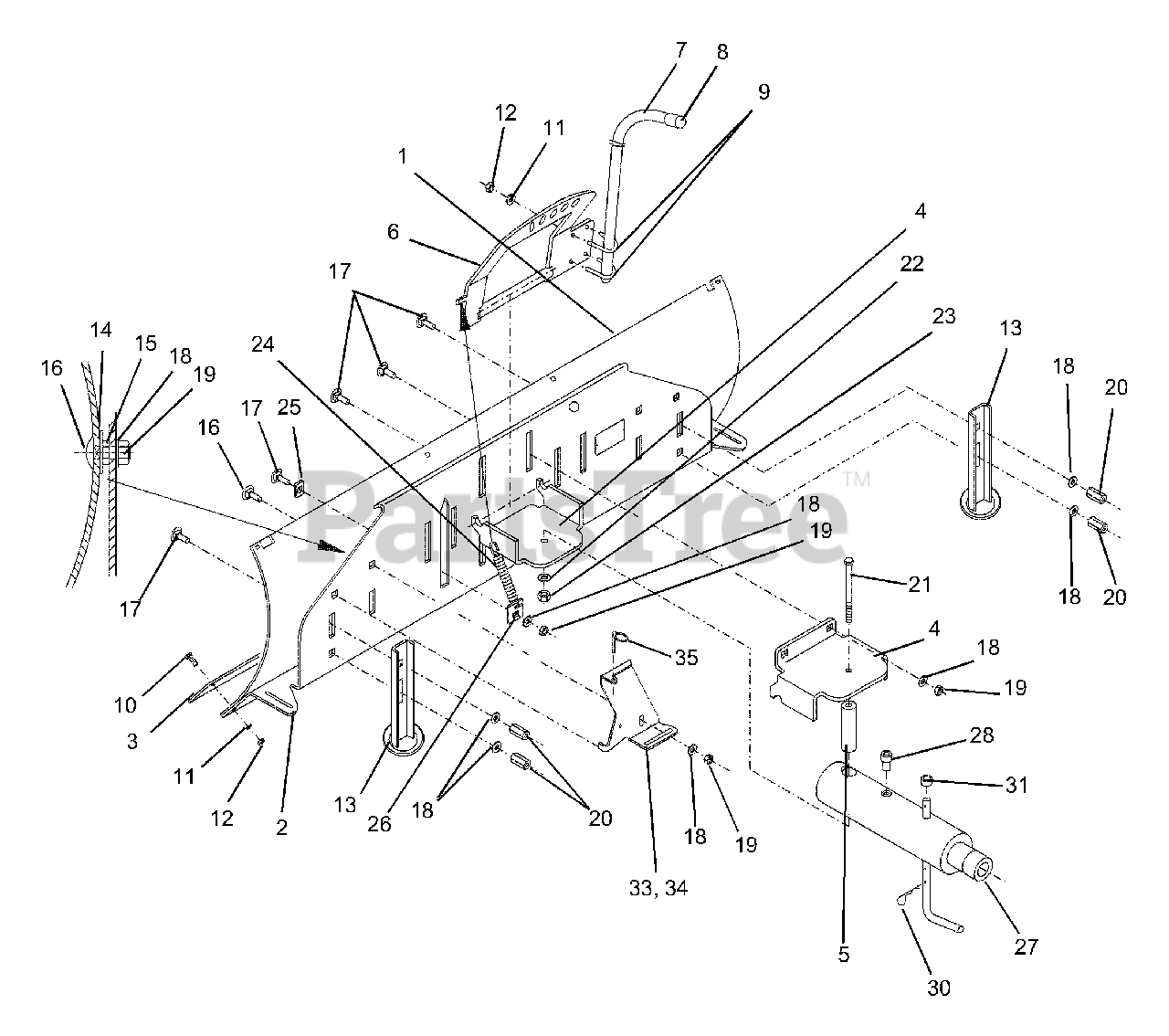

885043 - Gravely 50" Blade General Assembly Parts Diagram

50" Blade

General Assembly Parts Diagram

  • Title

1

Gravely 00692900

Snow Blade, 125 cm (50 in.)

Note: (50 in.)

$

$

Not available

2

Gravely 00693000

Sheet, 125 cm (50 in.)

Note: (50 in.)

$

$

Not available

3

Gravely 08695900

Ploughshare

$

$

Not available

4

Gravely 00693200

Plate, Connection

$

$

Not available

5

Gravely 00693300

Bushing

$

$

Not available

6

Gravely 00693400

Plate, Adjusting

$

$

Not available

7

Gravely 00693500

Handlebar

$

$

Not available

8

Gravely 00693600

Cap

$

$

Not available

9

Gravely 00693700

Clamp

$

$

Not available

10

Gravely 08636400

Bolt, Hex, D933 M8 x 30

$

$

Not available

11

Gravely 08605800

Washer, M8

$

$

Not available

12

Gravely 08605700

Nut, Hex D934 M8

$

$

Not available

13

Gravely 08696000

Stay

$

$

Not available

14

Gravely 00693800

Washer, D125 17 x 30 x 3

$

$

Not available

15

Gravely 00693900

Nut, Hex D439 M12

$

$

Not available

16

Gravely 00694000

Bolt, Square Neck D603 M12 x 35

$

$

Not available

17

Gravely 00694100

Bolt, Square Neck D603 M12 x 30

$

$

Not available

18

Gravely 08604600

Washer, M12

$

$

Not available

19

Gravely 00694200

Nut, Hex D934 M12

$

$

Not available

20

Gravely 00694300

Nut, Hex, D6334 M12 x 36

$

$

Not available

21

Gravely 00694400

Bolt, Hex D921 M14 x 140

$

$

Not available

22

Gravely 00694500

Washer, Spring 14.4 x 30.2

$

$

Not available

23

Gravely 00694600

Nut, Lock D985 M14

$

$

Not available

24

Gravely 00694700

Spring, Tension

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 00694800

Guide, Spring

$

$

Not available

26

Gravely 00694900

Retainer, Spring

$

$

Not available

27

Gravely 00695100

Arm, Support

$1002.99

$

Usually ships in 4-12 days

0

28

Gravely 00695200

Screw, Cylinder

$

$

Not available

29

Gravely 00695300

Support

$

$

Not available

30

Gravely 00695400

Pin, Detent

$

$

Not available

31

Gravely 08614600

Nut, Lock

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 08625700

Guard, Sheet Metal

$

$

Not available

33

Gravely 00691000

Bracket, Left

$

$

Not available

34

Gravely 00691100

Bracket, Right

$

$

Not available

35

Gravely 00690900

Pin, Lynch

$

$

Not available
