885911 - Gravely Pro-QXT 44" Brush Attachment (SN: 000101 - 000999) Brush Head Parts Diagram

Pro-QXT 44" Brush Attachment

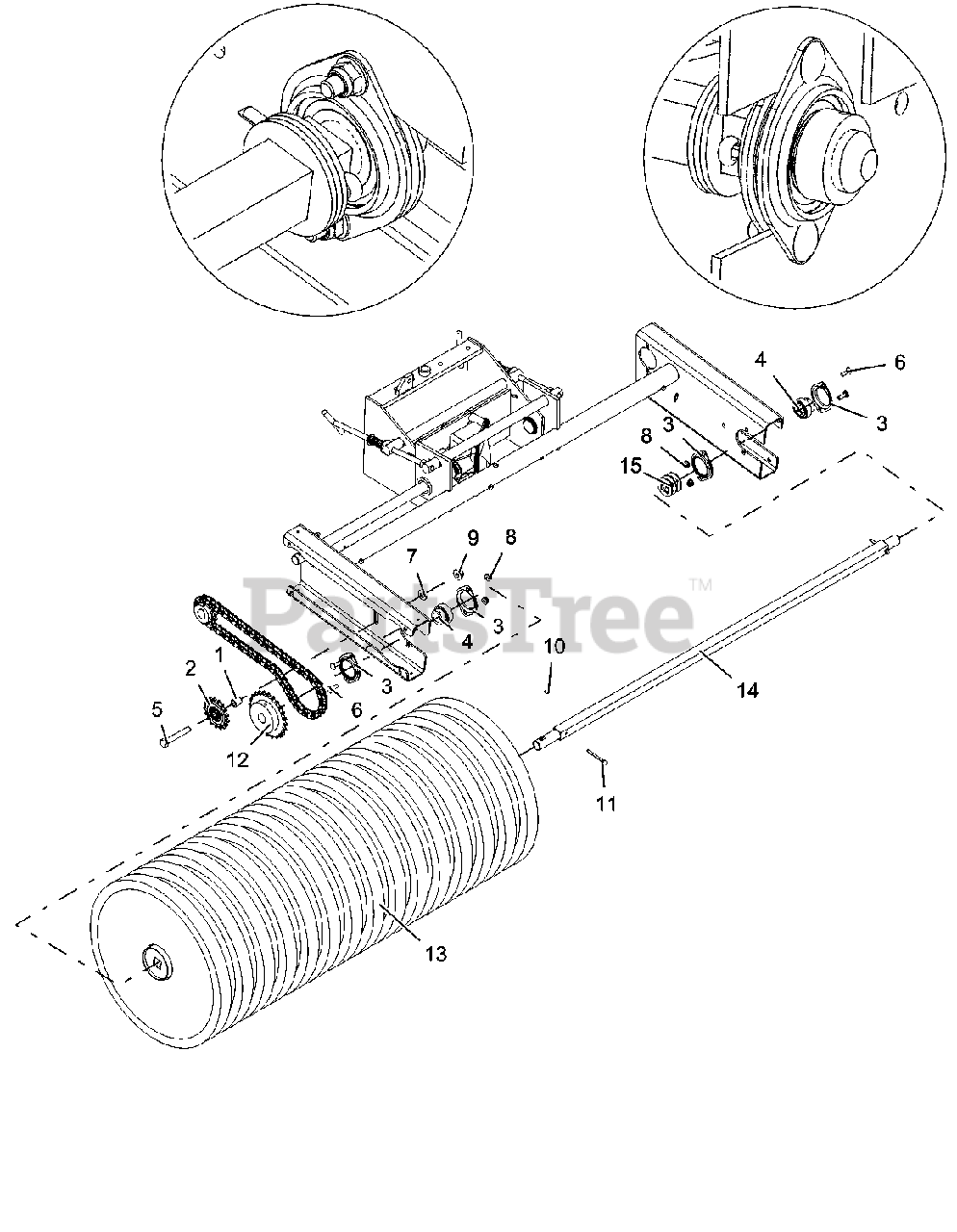

Brush Head Parts Diagram

  • Title

1

Gravely 03139500

SPACER .510X.750X.750

$13.99

$

Usually ships in 4-12 days

0

2

Gravely 04970800

SPROCKET, 17 TOOTH NO 50 CHAIN

$93.99

$

Usually ships in 4-12 days

0

3

Gravely 05426100

MTG-FLG 2 HOLE 52MM X 3.75

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 05426200

BRG/W COLLAR 1.0 X 2.047 X.844

$45.99

$

In Stock, only 3 left!

0

5

Gravely 05901634

BLT,HEX .50-13X3.25 G5ZC120

$3.99

$

In Stock, only 1 left!

0

6

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZC120

$1.49

$

In Stock, Qty 13

0

7

Gravely 06401015

WSHR,FL-STL.531X1.06X.095ZC120

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 15

0

9

Gravely 06500810

NUT,LK-NYL-FLG .50-13 G5ZC120

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, only 4 left!

0

11

Gravely 06700213

PIN,CTR.25X2.00EXTPRSQCT ZC120

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 08509900

SPRKT,

$171.99

$

Usually ships in 4-12 days

0

13

Gravely 08518600

BRUSH,44IN

$646.99

$

Usually ships in 4-12 days

0

14

Gravely 08518700

SHFT,POWER BRUSH

$258.99

$

Usually ships in 4-12 days

0

15

Gravely 08518800

SPCR, SQ 1.010X2.000X.125

$16.99

$

Usually ships in 4-12 days

0
