885911 - Gravely Pro-QXT 44" Brush Attachment (SN: 000101 - 000999) Brush Head Frame Parts Diagram

Pro-QXT 44" Brush Attachment

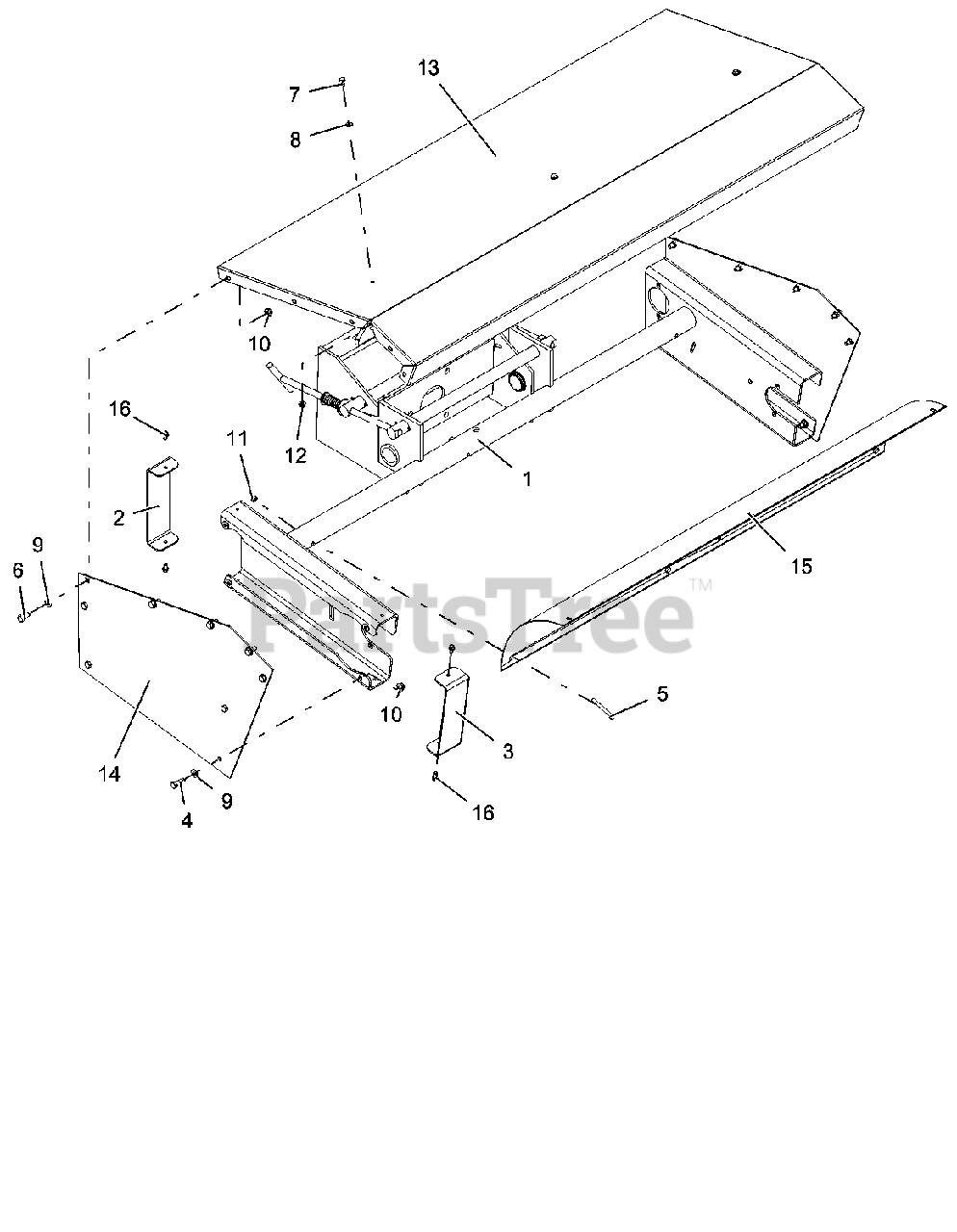

Brush Head Frame Parts Diagram

  • Title

1

Gravely 04970053

WLDMT, BRUSH FRAME SUPPORT

$526.99

$

Usually ships in 4-12 days

0

2

Gravely 04974553

BRUSH, BRKT COVER

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 04974653

BRUSH, BRKT COVER FRONT

$19.99

$

Usually ships in 4-12 days

0

4

Gravely 05901701

BLT,HEX .31-18X1.00 G5ZC120

$1.49

$

In Stock, Qty 8

0

5

Gravely 05901636

BLT,HEX .25-20X2.25 G5ZC120

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 05901704

BLT,HEX .31-18X.75 G5ZC120

$1.49

$

In Stock, Qty 12

0

7

Gravely 05901705

BLT,HEX .25-20X.50 G5ZC120

$0.99

$

In Stock, Qty 5

0

8

Gravely 06401001

WSHR,FL-STL.281X.62X.065 ZC120

$0.99

$

In Stock, Qty 16

0

9

Gravely 06401017

WSHR,FL-STL.344X.688X.065ZC120

$0.99

$

In Stock, Qty 9

0

10

Gravely 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 19

0

11

Gravely 06500812

NUT,LK-CTR .25-20 G5ZC120

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500813

NUT,LK-NYL-FLG .25-20 G5ZC120

$1.49

$

In Stock, Qty 12

0

13

Gravely 08510053

HOOD,

$122.99

$

Usually ships in 4-12 days

0

14

Gravely 08510153

PLT,SIDE

$56.99

$

Usually ships in 4-12 days

0

15

Gravely 08510253

SHIELD,

$62.99

$

Usually ships in 4-12 days

0

16

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZC120

$0.99

$

In Stock, Qty 20+

0
