885912 - Gravely Pro-QXT 32" Snow Blower Attachment (SN: 000101 - 000999) Auger And Impeller Parts Diagram

Pro-QXT 32" Snow Blower Attachment

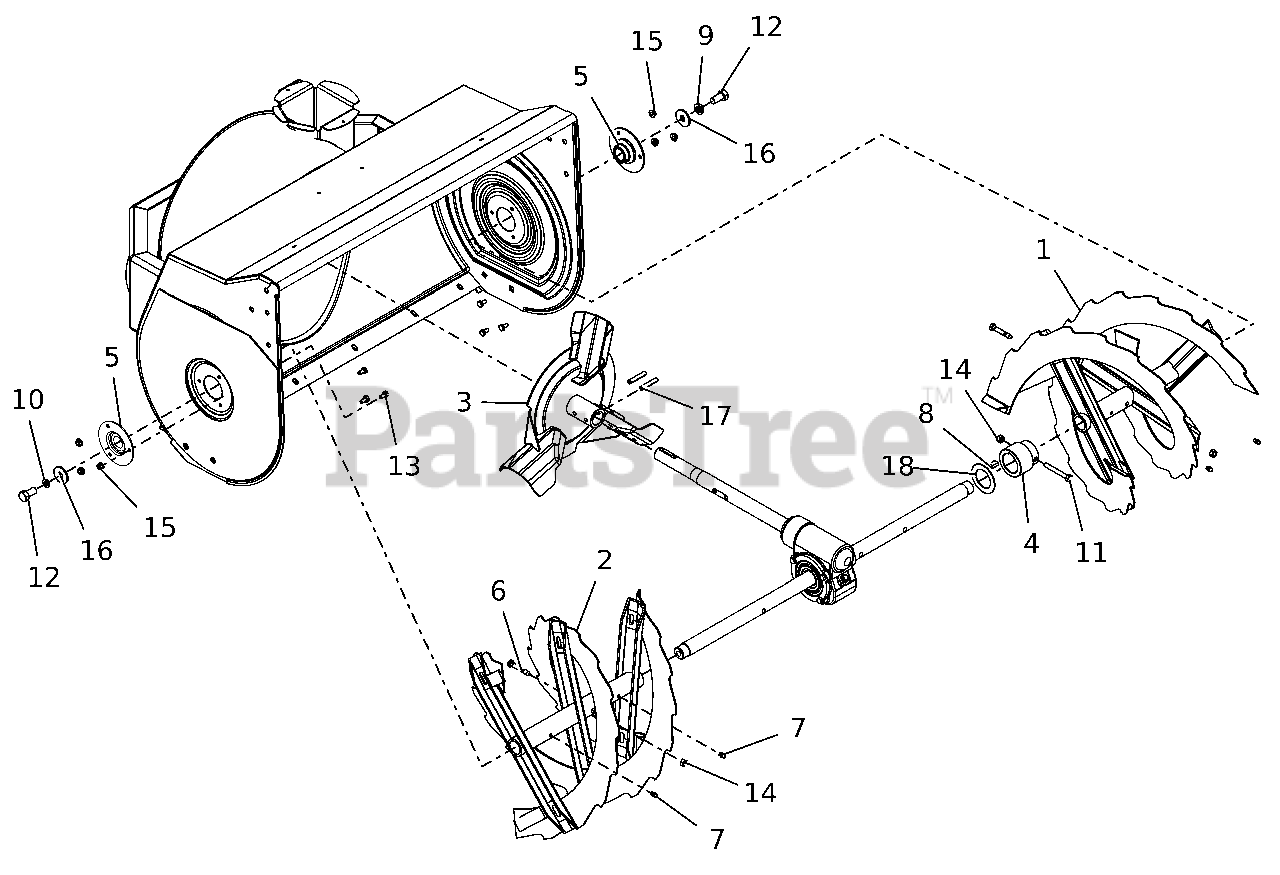

Auger And Impeller Parts Diagram

  • Title

1

Gravely 03365051

RAKE, L.H.-32" (1.12 X 16)
(Superseded to 53303000)

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 03365151

RAKE, R.H.-32" (1.12 X 16)
(Superseded to 53302900)

$452.99

$

Usually ships in 4-12 days

0

3

Gravely 04995351

IMPELLER, 3 BLADE 16"

$102.99

$

Usually ships in 4-12 days

0

4

Gravely 05020451

ADAPTER, RAKE SHAFT

$100.99

$

Usually ships in 4-12 days

0

5

Gravely 62463800

ASSY, FLANGE BEARING

$76.99

$

Usually ships in 4-12 days

0

6

Gravely 53108100

SHEAR BOLT & NUT ASSEMBLY
(Superseded to 51001500)

$4.99

$

In Stock, Qty 8

0

7

Gravely 07001738

FTG-LUBE .25-28X.256 SST

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06604700

KEY-SQ .25X.625X.375

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 06300117

WSHR,LK-HVY .500X.151 ZCC

$2.99

$

In Stock, only 1 left!

0

10

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 19

0

11

Gravely 05901717

BLT,HEX .31-18X2.50 G8 ZCC

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 05901715

BLT, HEX .50-13X1.00 G5 ZCC

$2.49

$

In Stock, Qty 7

0

13

Gravely 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 5

0

14

Gravely 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 17

0

16

Gravely 06401022

WSHR-FL-STL.511X1.44X.125ZC120

$2.99

$

In Stock, Qty 14

0

17

Gravely 05801500

PIN-ROLL .313X1.75

$2.49

$

In Stock, Qty 8

0

18

Gravely 06421100

WSHR-FL-NYL 1.625X2.500X.060

$9.49

$

Usually ships in 4-12 days

0
