885912 - Gravely Pro-QXT 32" Snow Blower Attachment (SN: 000101 - 000999) Controls Parts Diagram

Pro-QXT 32" Snow Blower Attachment

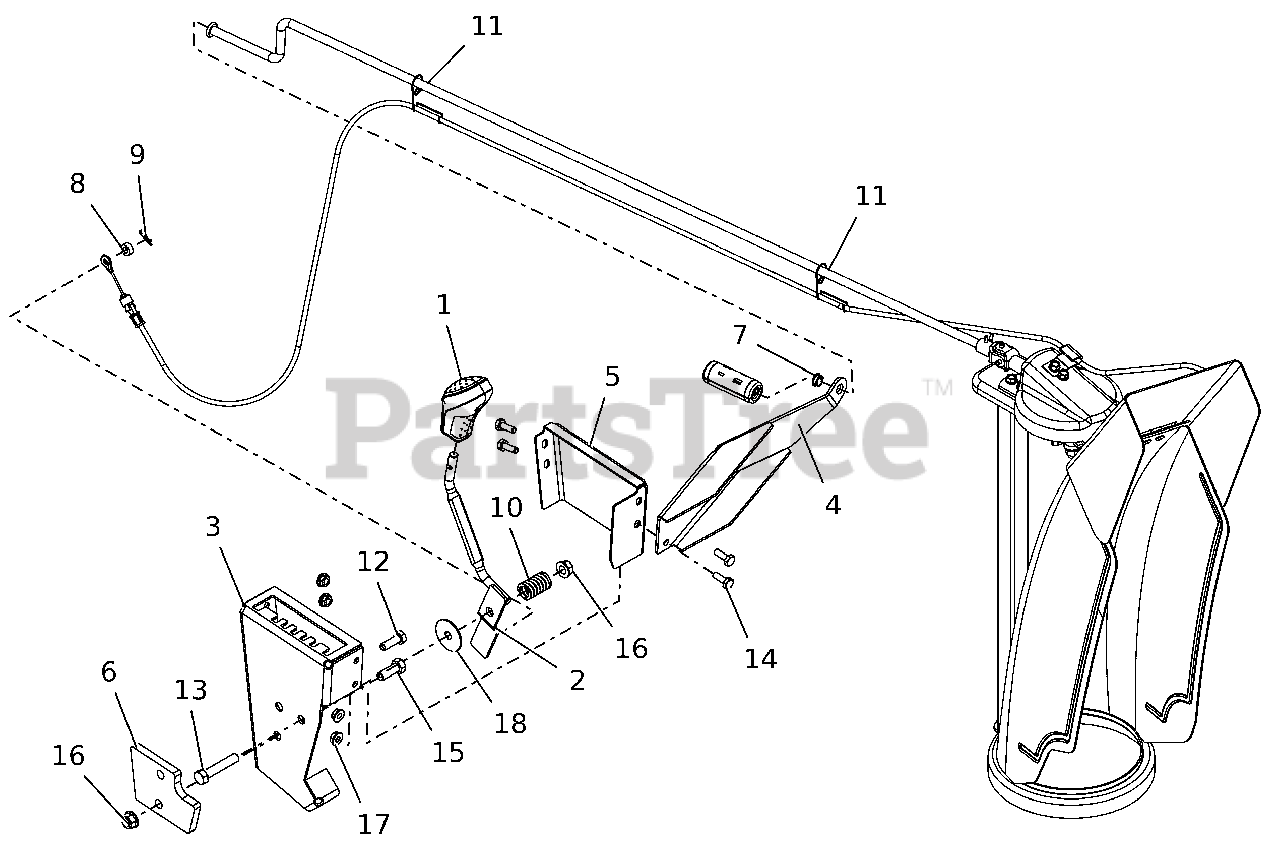

Controls Parts Diagram

  • Title

1

Gravely 04816300

KNOB, CONTROL, DASH

$14.99

$

In Stock, Qty 20+

0

2

Gravely 05069100

WLDMT, CONTROL LEVER (DEFL)
(Superseded to 04846800)

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 05016353

BRKT, DEFLECTOR LEVER

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 05069053

BRKT, CHUTE CRANK ROD HOLD

$48.99

$

Usually ships in 4-12 days

0

5

Gravely 05069753

BRKT, DEFLECTOR COVER

$29.99

$

Usually ships in 4-12 days

0

6

Gravely 05069853

BRKT, DEFLECTOR SPACER

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, only 2 left!

0

8

Gravely 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 13

0

9

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

10

Gravely 08300631

SPRG, COMPRESSION

$9.49

$

Usually ships in 4-12 days

0

11

Gravely 06900627

CLIP, CABLE RETAINER

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 05901630

BLT, HEX M8-1.25X25 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 9

0

14

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 10

0

15

Gravely 05901617

BLT, HEX .38-16X1.00 G5 CKF

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 11

0

18

Gravely 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 12

0
