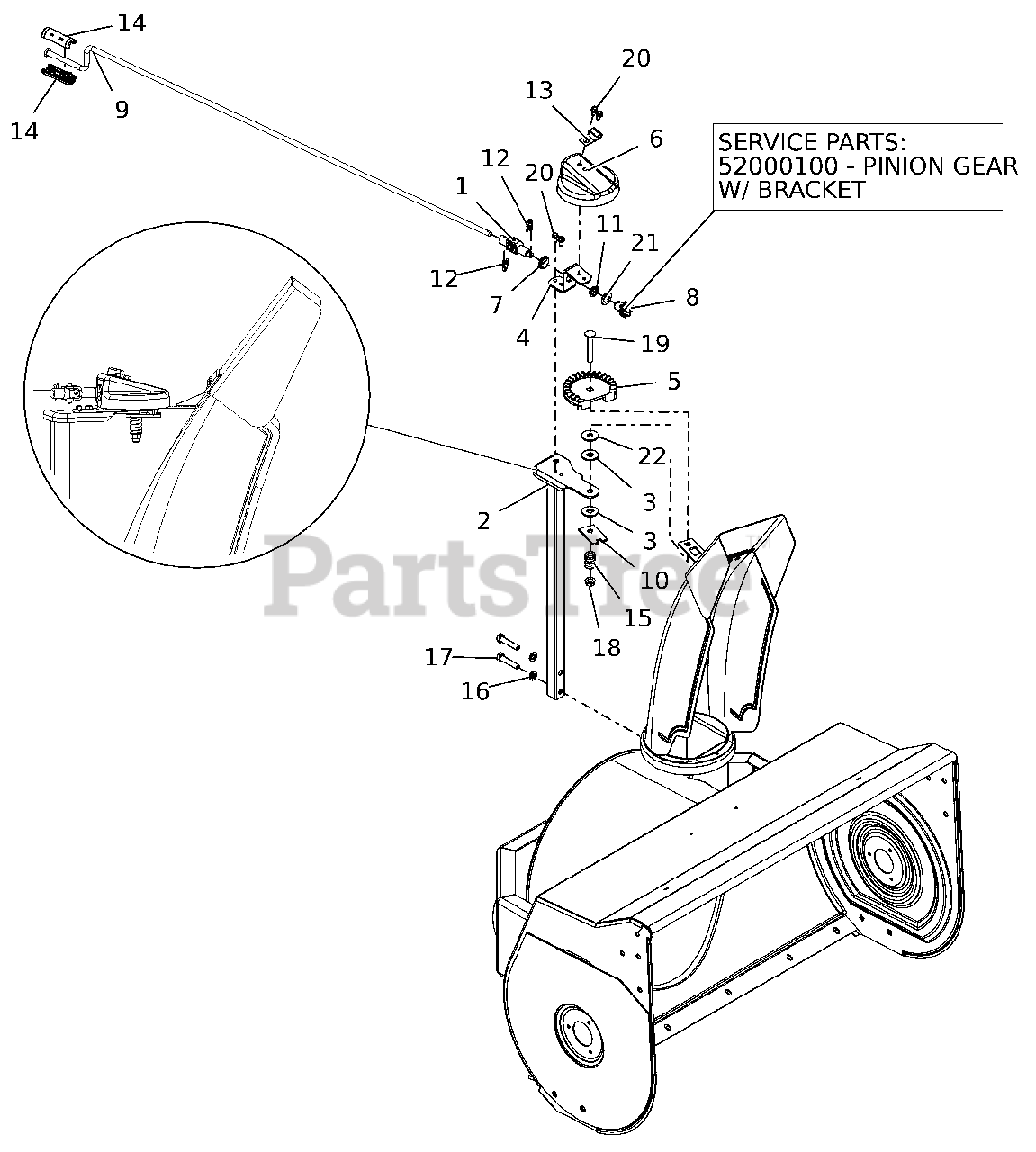

885912 - Gravely Pro-QXT 32" Snow Blower Attachment (SN: 000101 - 000999) Discharge Chute Controls Parts Diagram

Pro-QXT 32" Snow Blower Attachment

Discharge Chute Controls Parts Diagram

  • Title

1

Gravely 02495900

ASS'Y, UNIVERSAL-W/PIN END

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 05016751

WLDMT, 32" CHUTE PEDESTAL

$

$

Not available

3

Gravely 01123800

FRICTION WASHER

$3.99

$

In Stock, only 3 left!

0

4

Gravely 01972451

BRACKET, PINION GEAR

$

$

Not available

5

Gravely 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 7

0

6

Gravely 03223000

GEAR COVER

$12.99

$

In Stock, only 1 left!

0

7

Gravely 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 8

0

8

Gravely 03735300

PINION GEAR - CHUTE

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 52000100

PINION GEAR W/BRACKET

$28.99

$

In Stock, only 1 left!

0

9

Gravely 05022600

CRANK,CHUTE

$46.99

$

Usually ships in 4-12 days

0

10

Gravely 05070400

PLATE, FRICTION ZC120
(Superseded to 00398000)

$7.49

$

Usually ships in 4-12 days

0

11

Gravely 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, only 3 left!

0

12

Gravely 06714500

PIN, SPRING CLIP

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

14

Gravely 07500203

KNOB, CHUTE CRANK - SNAP GRAY

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 08300701

SPRING,COMPRESSION

$

$

Not available

16

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 18

0

17

Gravely 05901612

BLT, HEX .38-16X1.75F G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06200234

BLT,RHSN .38-16X2.50 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

20

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06401021

WSHR FL STL .406X1.25X.10ZC120

$2.49

$

In Stock, only 2 left!

0
