885912 - Gravely Pro-QXT 32" Snow Blower Attachment (SN: 000101 - 000999) Gear Case Parts Diagram

Pro-QXT 32" Snow Blower Attachment

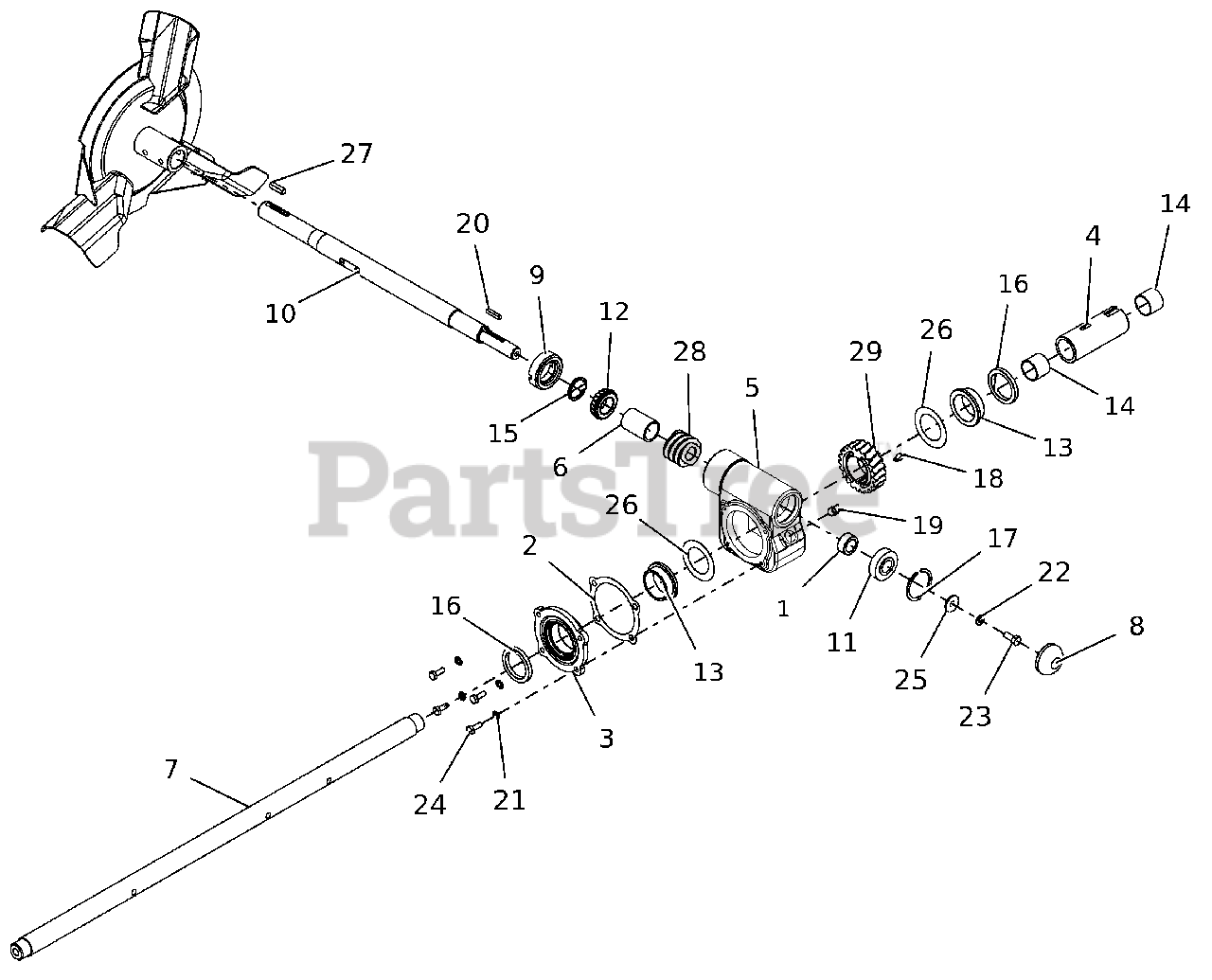

Gear Case Parts Diagram

  • Title

1

Gravely 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

2

Gravely 00200800

GASKET

$3.99

$

In Stock, only 3 left!

0

3

Gravely 02401351

COVER, GEAR CASE (BLACK)

$

$

Not available

4

Gravely 03054700

GEAR CASE SHAFT

$113.99

$

Usually ships in 4-12 days

0

5

Gravely 03187951

GEAR CASE

$

$

Not available

6

Gravely 03188100

BEARING SPACER 1.032X1.25X1.78

$26.99

$

In Stock, only 1 left!

0

7

Gravely 03329100

32 INCH RAKE SHAFT

$232.99

$

Usually ships in 4-12 days

0

8

Gravely 05065600

CAP,DUST,GEARBOX

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 05065700

PLUG,ADJUSTMENT

$118.99

$

Usually ships in 4-12 days

0

10

Gravely 05068300

WORM SHAFT 16

$336.99

$

Usually ships in 4-12 days

0

11

Gravely 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

12

Gravely 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 7

0

13

Gravely 05505900

BSHG-FLG .683X1.87X1.68X2.250

$14.99

$

In Stock, only 4 left!

0

14

Gravely 05513900

BSHG-SLV 1.125X1.250X1.000

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 05604600

SEAL 1.125X1.375X.125

$10.99

$

In Stock, only 1 left!

0

16

Gravely 05607000

SEAL 1.625X2.125X.250

$9.99

$

In Stock, only 3 left!

0

17

Gravely 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, only 1 left!

0

18

Gravely 06604800

KEY-FTHR .25X.875X.25 SAE 8630

$6.99

$

Usually ships in 4-12 days

0

19

Gravely 07001808

PIPE PLUG, 1/4 NPT ZC120

$1.99

$

Usually ships in 4-12 days

0

20

Gravely 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

21

Gravely 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

In Stock, only 2 left!

0

22

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

24

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 12

0

25

Gravely 06401027

WSHR,FLT .328X1.00X.094 ZCC

$3.99

$

In Stock, only 3 left!

0

26

Gravely 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

27

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 10

0

28

Gravely 00280800

WORM, GEAR

$

$

Not available

29

Gravely 03188400

WORM GEAR
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0
